Mounting Considerations
Rev AA
Mount the printer using four M6 screws. Consider the direction of travel
of the target material relative to the printer, when you mount the printer
on a continuous motion packaging machine. This determines whether the
printer in use is left-handed or right-handed (Figure 3-3).
64.50 mm (2 PLCS)
14.50 mm
70.73 mm (2.78 inches)
M6 Tapped Holes
Thread Depth 6.00
3 Places
20.73 mm (2 PLCS)
167.15 mm
185.30 mm
158.00 mm
Printhead Retracted
162.50 mm
25.70 mm
32.50 mm (1.28 inches)
157.80 mm
159.60 mm
26.20 mm
32.00 mm
Printable Area

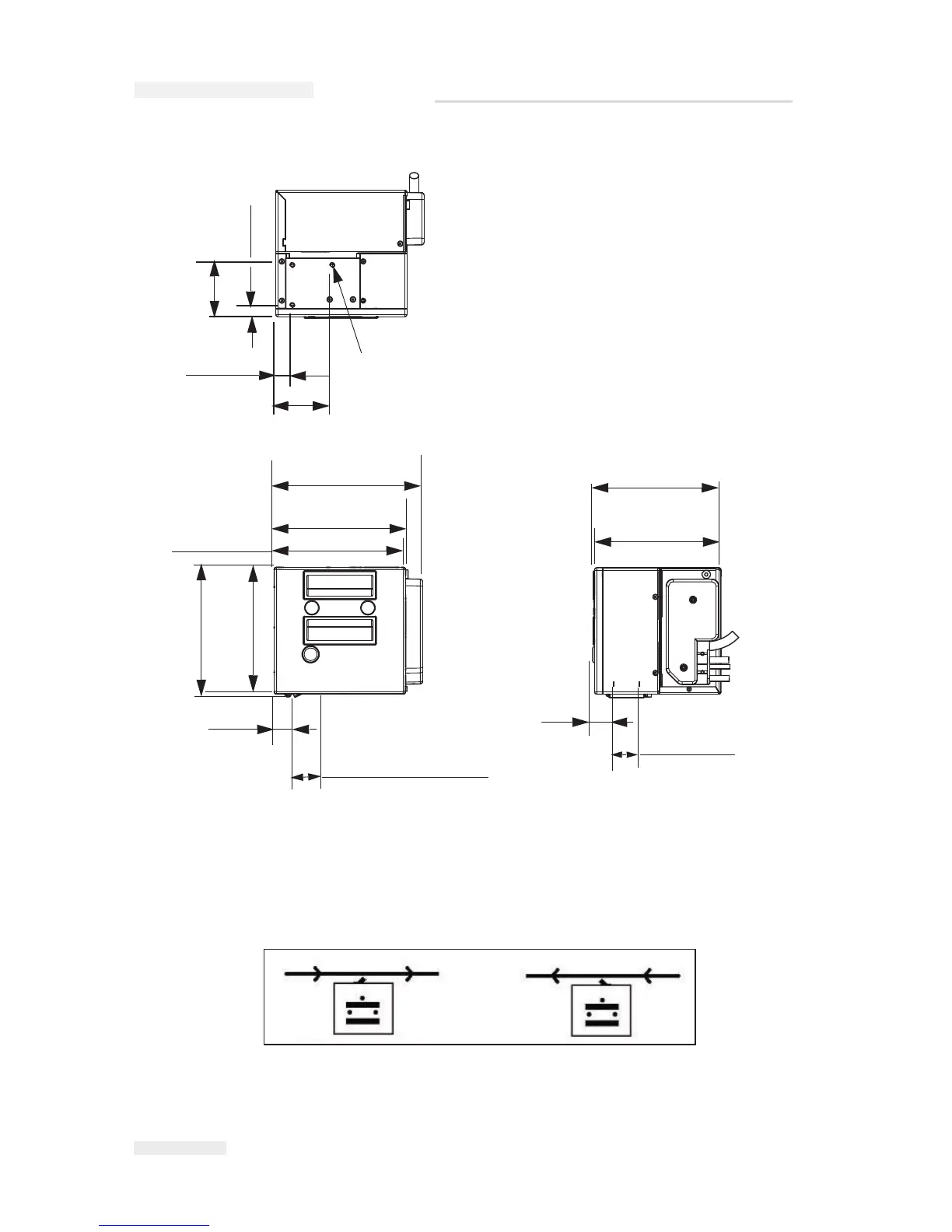

Figure 3-2: Videojet 6210 30 mm RH Printer Dimensions
(7.3 inches)
(6.58 inches)
164.00 mm
(6.46 inches)
(1.01 inches)
Printhead Stroke
(6.4 inches)
(6.22 inches)
(6.23 inches)
(6.21 inches)
(1.03 inches)
(1.26 inches)
(2.54 inches)
0.57 inches
(0.82 inches)
Figure 3-3: Right-handed and Left-handed Printer
Right-handed Printer Left-handed Printer
