3-6
Mounting Considerations
Rev AA
The maximum distance of the CLARiTY controller from the printer body
is 9.8 ft (3 m).
The CLARiTY controller can be mounted in any convenient location,
provided that the maximum lead length of 9.8 ft (3 m) is not exceeded. The
mounting brackets provided allow you to position the controller against a
convenient vertical flush surface.

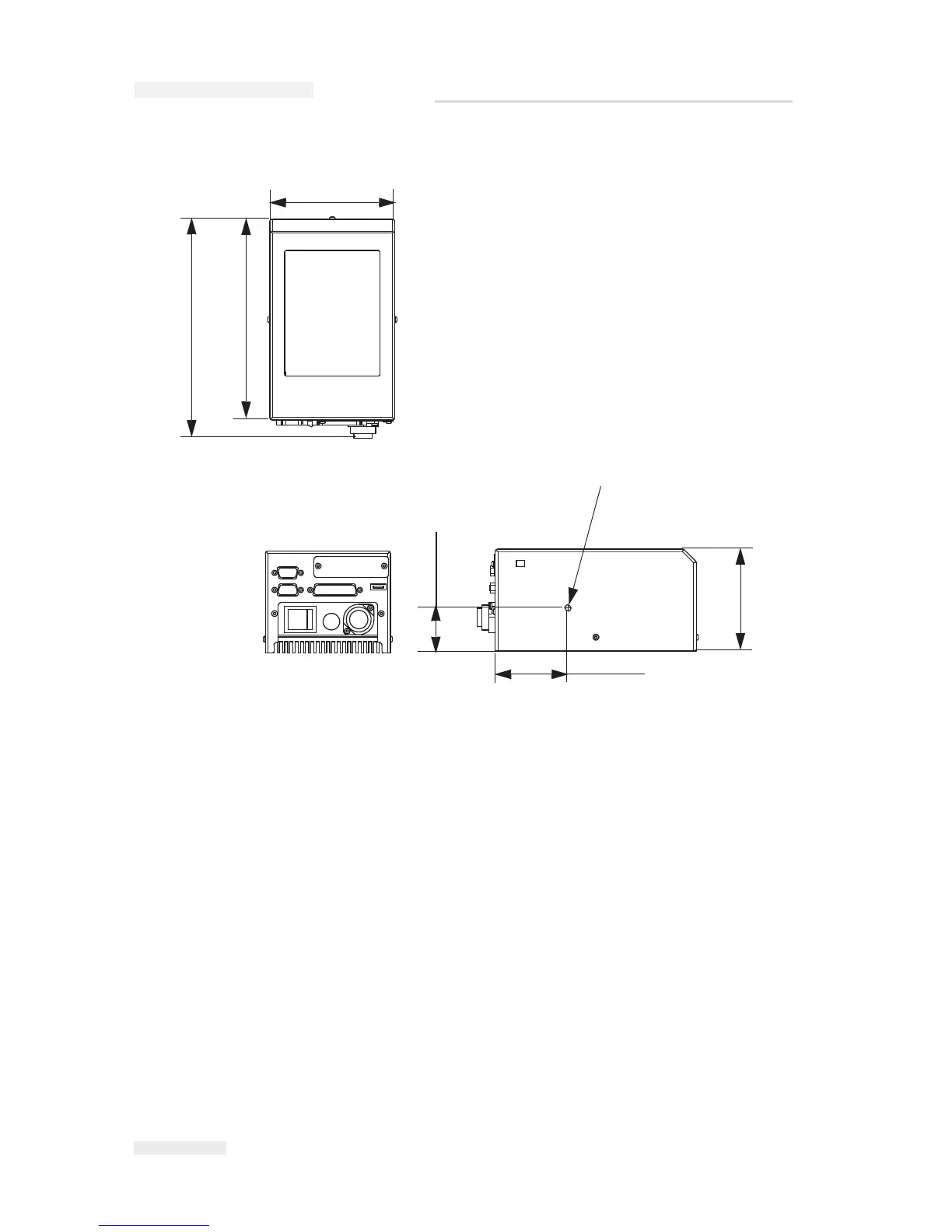

Figure 3-5: CLARiTY Controller Dimensions
69.20 mm
208.35 mm
191.25 mm
41.00 mm
M6 Female Thread
Both Sides.
Thread Depth 6.00
96.90 mm
118.90 mm
(4. 68 inches)
(8.2 inches)
(7.53 inches)
(3.81 inches)
(2.72 inches)
(1.61 inches)
ICE Pegasus Service Manual
