Working with Printhead Diagnostics

Touch Printhead button on the Diagnostics page to access the printhead

diagnostics page (Figure 4-9).

The printhead diagnostics page allows you to access the following

parameters:

•Inputs

•Outputs

•Optics

•General

• Encoder Profiles

• Timings

• States

Use the Up and Down arrow keys to navigate through the options.

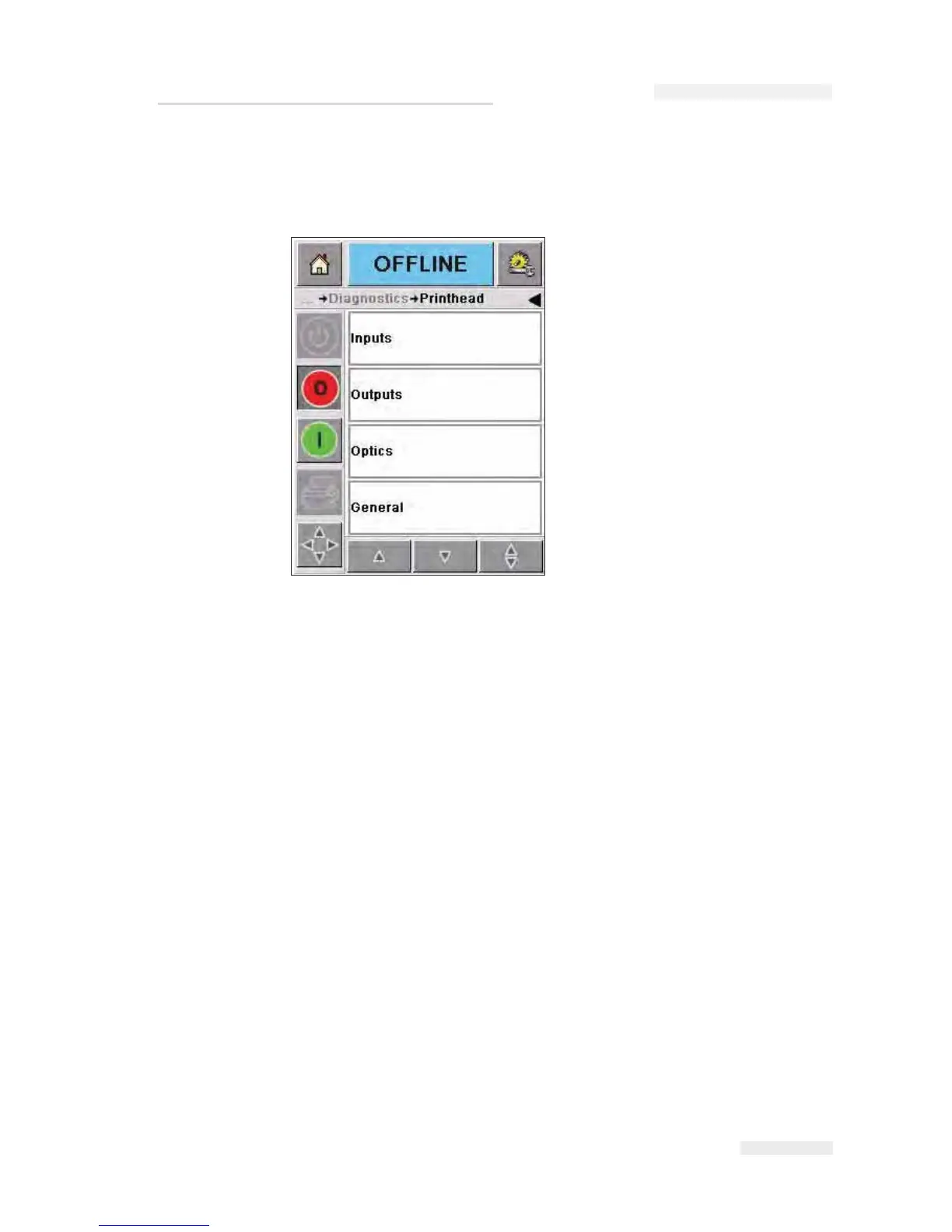

Figure 4-9: Printhead Diagnostics Page
