Icom IC-7610 Advanced Manual

4

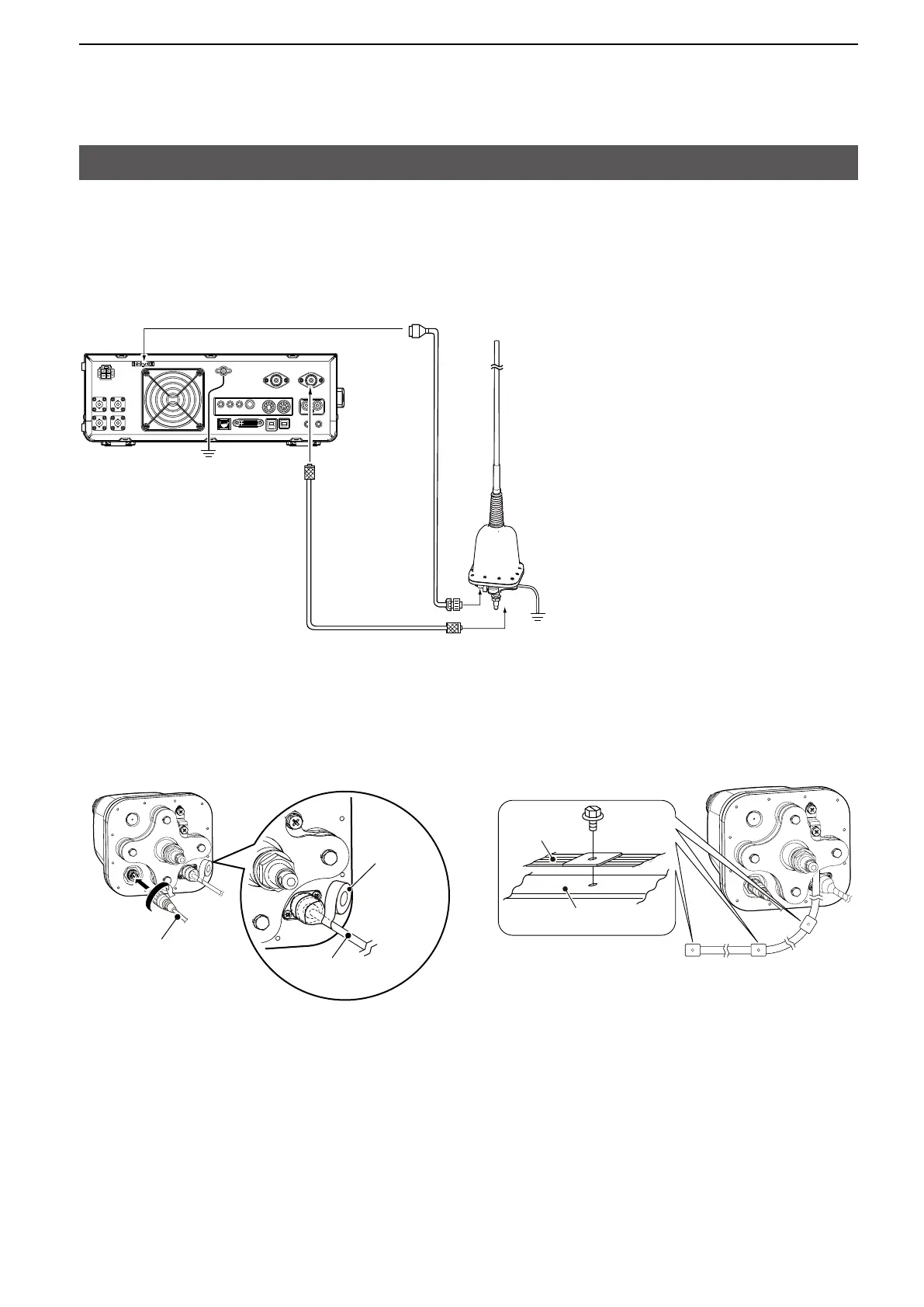

1. ADVANCED CONNECTIONS
Connecting the AH-740
About the ground strap connection
The coaxial cable is supplied with the AH-740.
The OPC-2321 Control cable is an option.
The optional AH-740 covers the 2.5 to 30 MHz range
with a supplied whip antenna. Or when using with the
optional NVIS kit, it covers the 2.2 to 30 MHz range.
L See the AH-740 instruction manual for installation
and connection details.
AH-740
[TUNER]
[ANT 1]
GND
GND
OPC-2321
Rubber
vulcanizing
tape, then
electrical
tape.
Coaxial
cable
OPC-2321
Ground
strap
Vehicle chassis or body
Coaxial cable and control cable connections

Icom IC-7610 Specifications

General

Receiver Type	Direct sampling
Number of Antenna Connectors	2
Type	HF/50 MHz Transceiver
IF DSP	Yes
Antenna Connector	SO-239
Frequency Range	0.030–60.000 MHz
Power Supply	13.8 V DC ±15%
Modes	AM, FM
RF Output Power	100 W
Display	7-inch color
Weight	8.5 kg
External Speaker Connector	3.5 mm
USB Connector	Type B
Output Power	100 W
Operating Temperature	-10°C to +60°C
