GPS status screen (Continued) ■

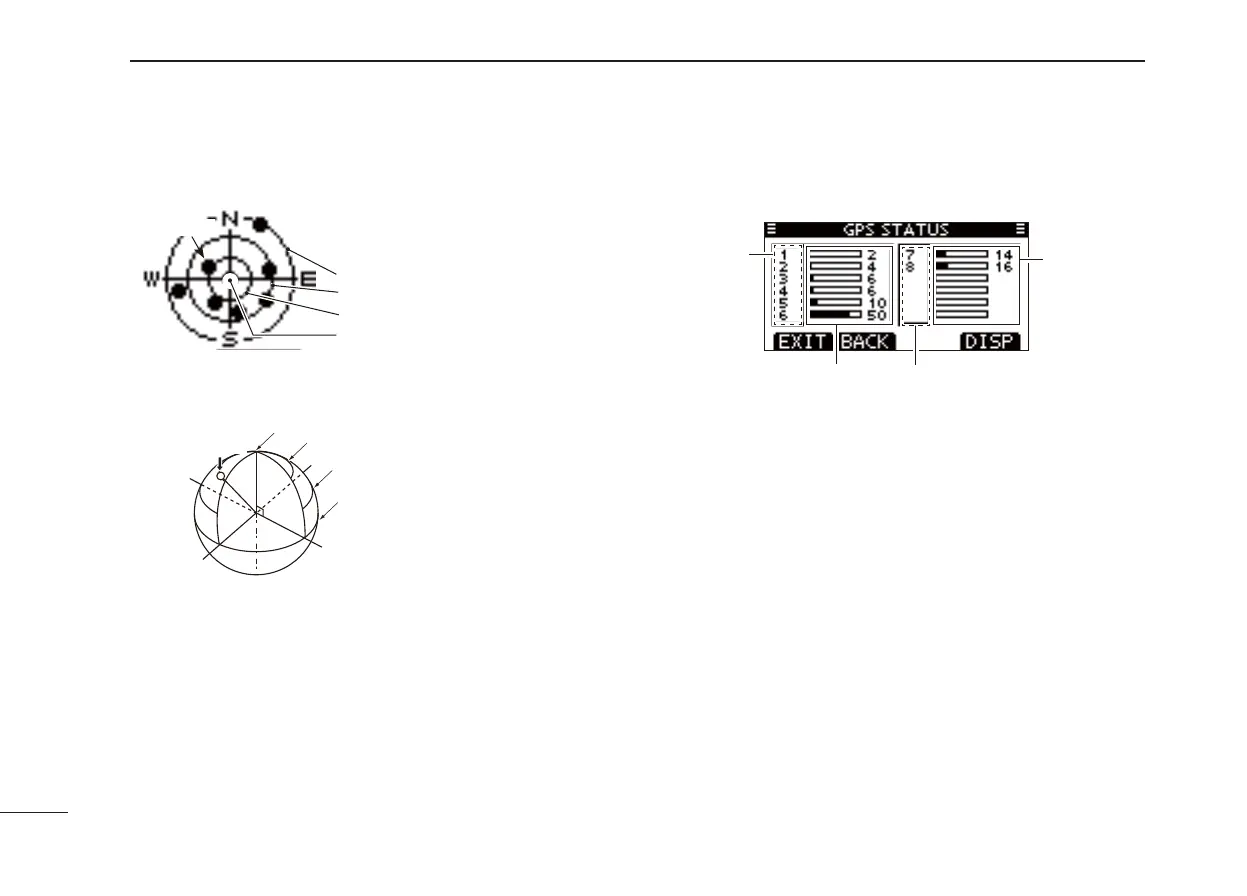

• About the sky view
●: Tracking satellite.
○: Untracking satellite
Elevation angle 0 degree line
Elevation angle 30 degree line
Elevation angle 60 degree line
Elevation angle 90 degree line
(Zenith)
• The image of the satellite
Satellite A
N
W
E
S
Satellite A
Elevation angle 90 degree line (Zenith)
Elevation angle 60 degree line
Elevation angle 30 degree line
Elevation angle 0 degree line
Satellite
number
Satellite numberSatellite signal power
Satellite
signal
power
• Satellite signal power screen description
The untracking satellite numbers blink.
