Compass screen ■
The compass screen displays your vessel’s COG (Course
Over Ground) and SOG (Speed Over Ground) which can be
checked at a glance.
Push [COMP].
• The screen as shown below is displayed.
• Push [SEL] to select compass direction between N-UP
and AC-UP.
- N-UP : The top is always north
- AC-UP : The compass is always pointed in your
course heading direction.
• Push [EXIT] to return to the normal operating mode.

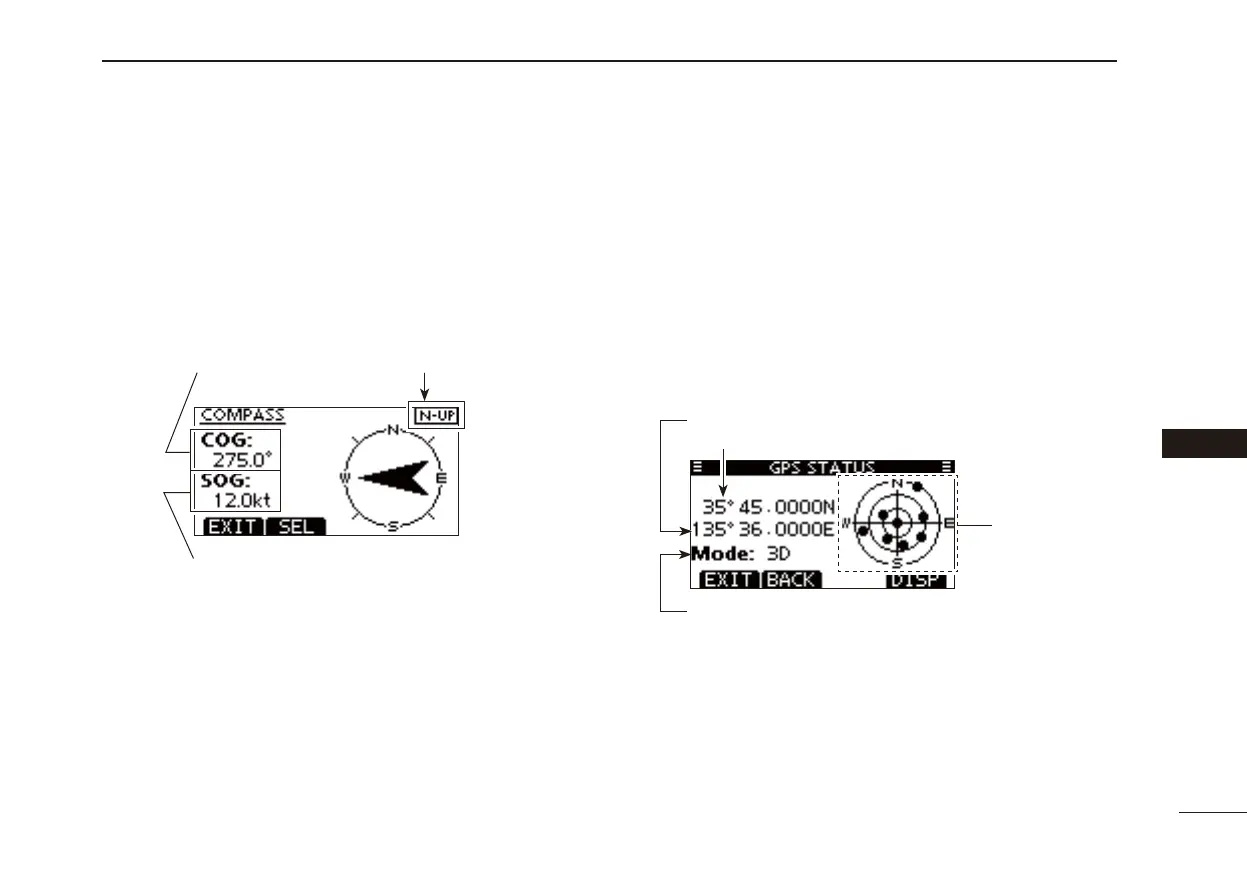

Shows compass direction
COG display
SOG display
Your position (Latitude)
Your position (Longitude)
GPS mode*
Sky view
GPS status screen ■
GPS Status displays the quantity, signal power and position
of the GPS satellites.
Sky view shows the position of visible GPS satellites.
The screen also shows the direction, elevation angle, satellite
numbers and their receiving signal strength status.
Push [MENU] to enter the menu screen. q
Push [ w Y]/[[Z] to select “GPS Status,” then push [ENTER].
• Sky view screen is displayed.
• Push [DISP] each time to toggle between the sky view
and satellite signal power screens.
• Push [BACK] to return to the menu screen.
• Push [EXIT] to return to the normal operating mode.
*“ 3D” is displayed when more than 4 satellites are tracked. When
less than 3 satellites are tracked, “2D” is displayed.
