WindO/I-NV4 User’s Manual 24-1
24
Online Function
This chapter describes in detail on how to setup the online function and the operation of the MICRO/I.

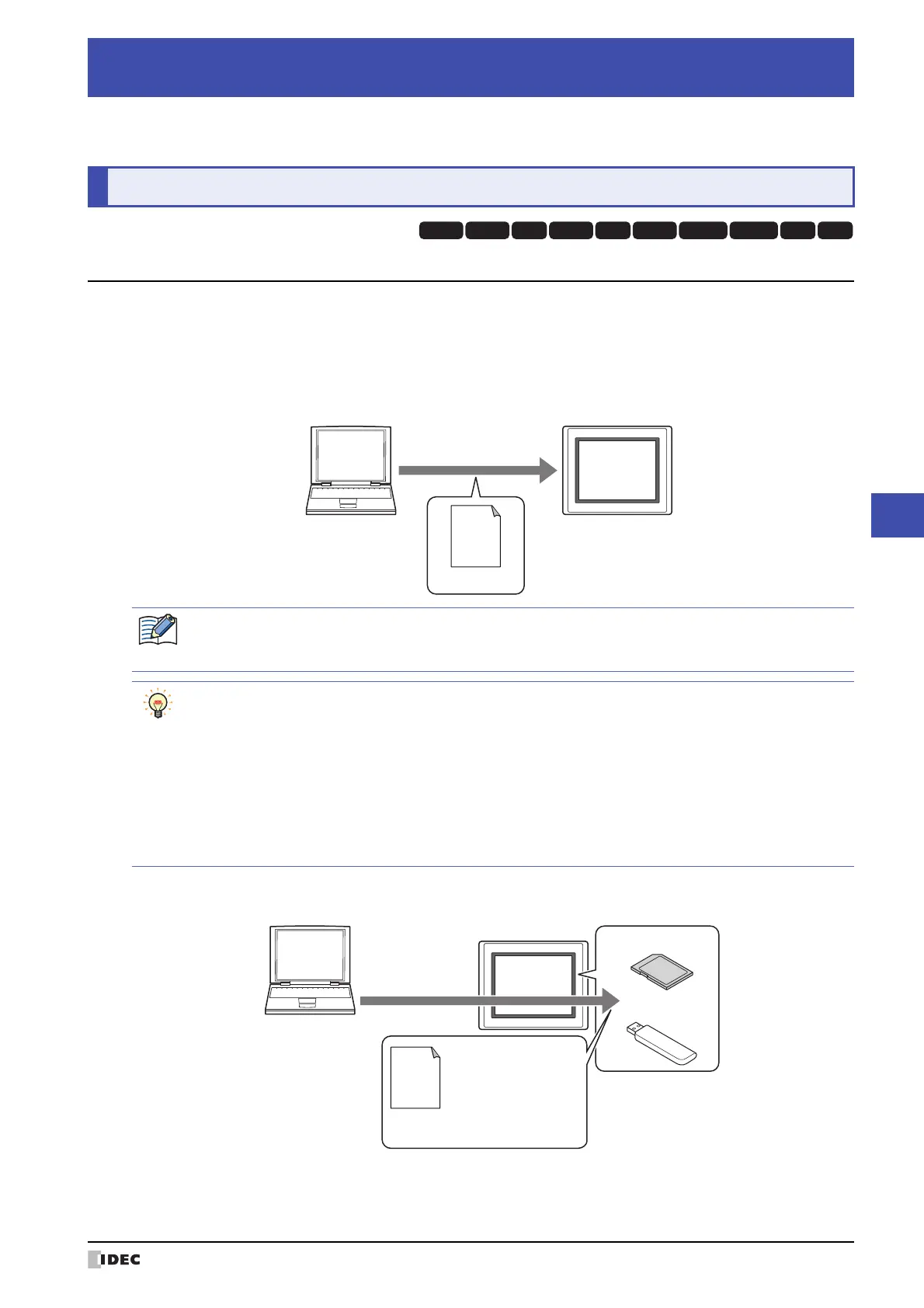

1.1 How the Online Function is Used
The online function enables communication with the MICRO/I in WindO/I-NV4. This communication between
WindO/I-NV4 and the MICRO/I, implemented using an exclusive protocol called maintenance communication.
The online function enables the following.
• Write a project data into the MICRO/I.
• Write files to an external memory device
*1
inserted in the MICRO/I.
*1 SD memory card for HG5G/4G/3G/2G-V, HG4G/3G and HG2G-5F, USB flash drive for HG2G-5T and HG1G/1P
*2 This is applicable for models with an audio interface only.
*3 This is applicable for models with a video interface only.
Chapter 24 Online Function
1 Communicating with the MICRO/I
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P
Computer
Download
MICRO/I
Project data
When project data is downloaded using the online function, the Alarm Log data, Data Log data, and
Operation Log data in the data storage area are deleted. All internal devices except for the HMI Keep
Register (LKR) and HMI Keep Relay (LK) are cleared.
• The following functions can be executed with downloading of project data.
- Download optional fonts and Kanji dictionary data.
- Download the runtime system.
- Download recipe files, picture files, sound files
*1
and Custom Web Page files to the External Memory
Device folder in the external memory device inserted into the MICRO/I.
- Clear the HMI Keep Register (LKR) and HMI Keep Relay (LK) after download.
- Clear the HMI Keep Register (LKR), HMI Keep Relay (LK), Alarm Log Data, Data Log Data and
Operation Log Data after download.
• For details on writing project data to an external memory device inserted in the computer, refer to
Chapter 31 “Downloading” on page 31-10.
Computer
MICRO/I
Download
Recipe file
Picture file
Sound file
Custom Web Page file
Movie file
Movie file list
USB flash drive
SD memory card
External memory device
*2
*3
*3
*1
