9 Specifications
Mode
Horizontal
*4)
+ Vertical
*4)
Method
H + V: Color subsampling
Frame rate w/ 2x subsampling, 640 x 512
pixels
fps
79
94
110
Frame rate w/ 4x subsampling, 320 x 256
pixels
fps
219
260
305
Frame rate w/ 8x subsampling, 160 x 128
pixels
fps
511
522
623
Hardware trigger
Mode
Asynchronous
Asynchronous
Asynchronous
Trigger delay with rising edge
µs
19.7 ±0.25
< 5
< 5
Trigger delay with falling edge
µs
38.0 ±0.25
< 5
< 5
Additive trigger delay (optional)
µs
15 µs-4 s
15 µs-4 s
15 µs-4 s
Sensor delay to exposure start
µs
< 200
*2)
< 200
*2)
< 200
*2)
Connected load
*5)
USB uEye
GigE uEye SE
GigE uEye HE
W
0.5-1.0
2.6-3.2
3.0-4.3
*1)
The maximum possible pixel clock frequency depends on the PC hardw are used.
*2)
Requires maximum pixel clock frequency.
*3)
Requires minimum pixel clock frequency.
*4)
Use of this function increases the frame rate.
*5)
The connected load depends on the sensor model and the pixel clock setting.
Relative sensor sensitivity
Monochrome
Color

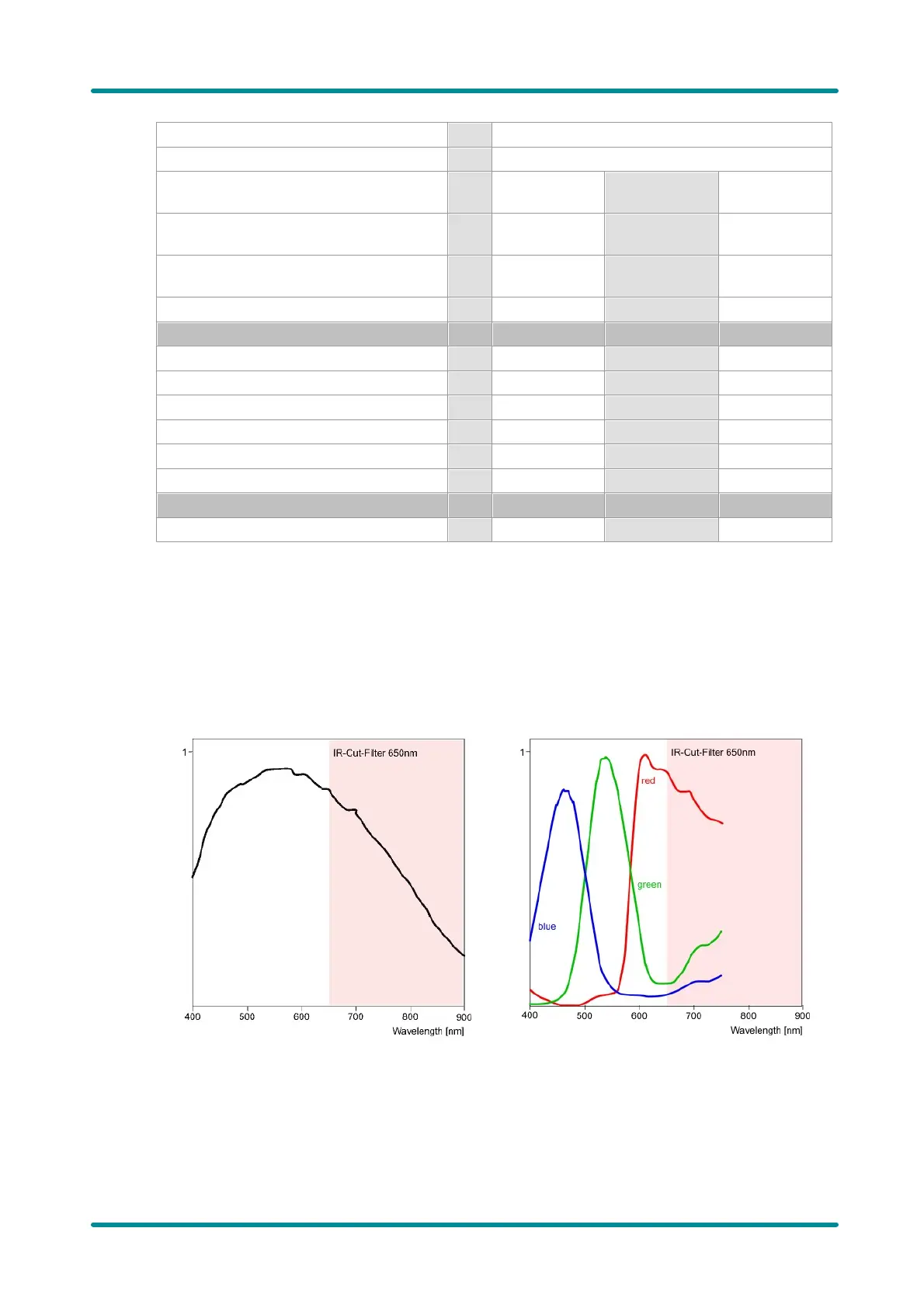

Figure 94: Sensor sensitivity of the UI-154x / UI-554x
