IDS uEye series User Manual

© 2009 IDS Imaging Development Systems GmbH 219

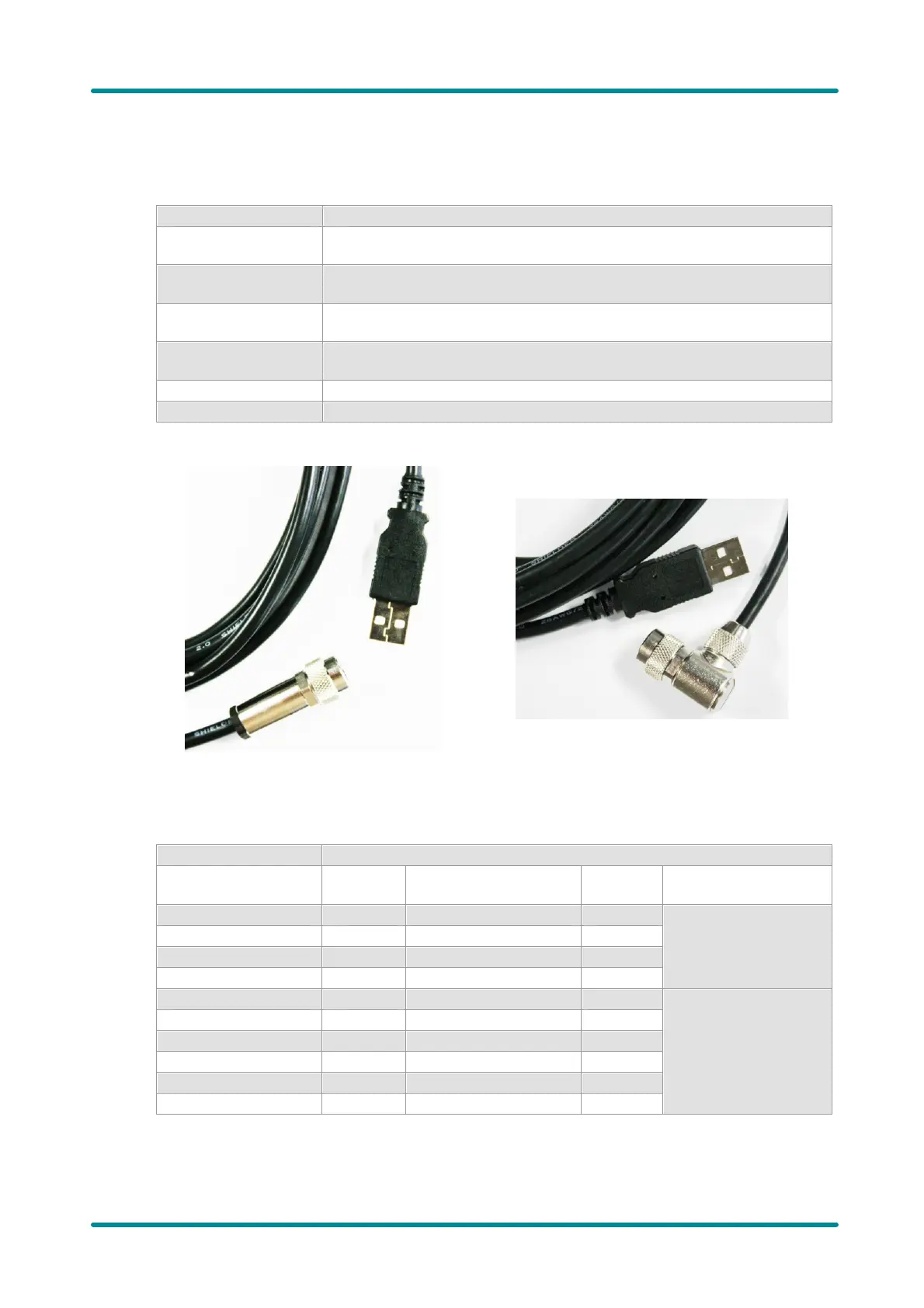

10 Accessories
10.2 USB uEye RE
USB uEye RE USB cables
Purchase Order No.
Description
AD.0040.2.12100.00
USB uEye RE USB cable, 3 m, USB-A to Binder type 712, 5-pin, straight
connector
AD.0040.2.12200.00
USB uEye RE USB cable, 5 m, USB-A to Binder type 712, 5-pin, straight
connector
AD.0040.2.12300.00
USB uEye RE USB cable, 3 m, USB-A to Binder type 712, 5-pin, angled
connector
AD.0040.2.12400.00
USB uEye RE USB cable, 3 m, USB-A to Binder type 712, 5-pin, angled
connector
BK.0068.2.01500.00
Binder 712 socket, 5-pin, straight (not fitted)
BK.0068.2.01600.00
Binder 712 socket, 5-pin, angled (not fitted)
Figure 211: USB uEye RE - USB cable
with straight connector
Figure 212: USB uEye RE - USB cable with
angled connector
USB uEye RE drag-chain compatible USB cables
Purchase Order No.
Description
Connector
(PC side)
Connector (camera side)
Binder type 712, 5-pin
Cable
length
Cable type
AD.0040.2.13100.00
USB-A
straight
3 m
Kabelschlepp Life Line
Data 700 USB 45688
ø 5 mm
AD.0040.2.13200.00
USB-A
straight
5 m
AD.0040.2.13300.00
USB-A
angled
3 m
AD.0040.2.13400.00
USB-A
angled
5 m
AD.0040.2.13500.00
USB-A
straight
6 m
IGUS Chainflex
CFBUS.065
ø 7.5mm
AD.0040.2.13600.00
USB-A
straight
8 m
AD.0040.2.13700.00
USB-A
straight
10 m
AD.0040.2.13800.00
USB-A
angled
6 m
AD.0040.2.13900.00
USB-A
angled
8 m
AD.0040.2.14000.00
USB-A
angled
10 m
