9.3.3 USB uEye LE
Pin Assignment of the USB Connector

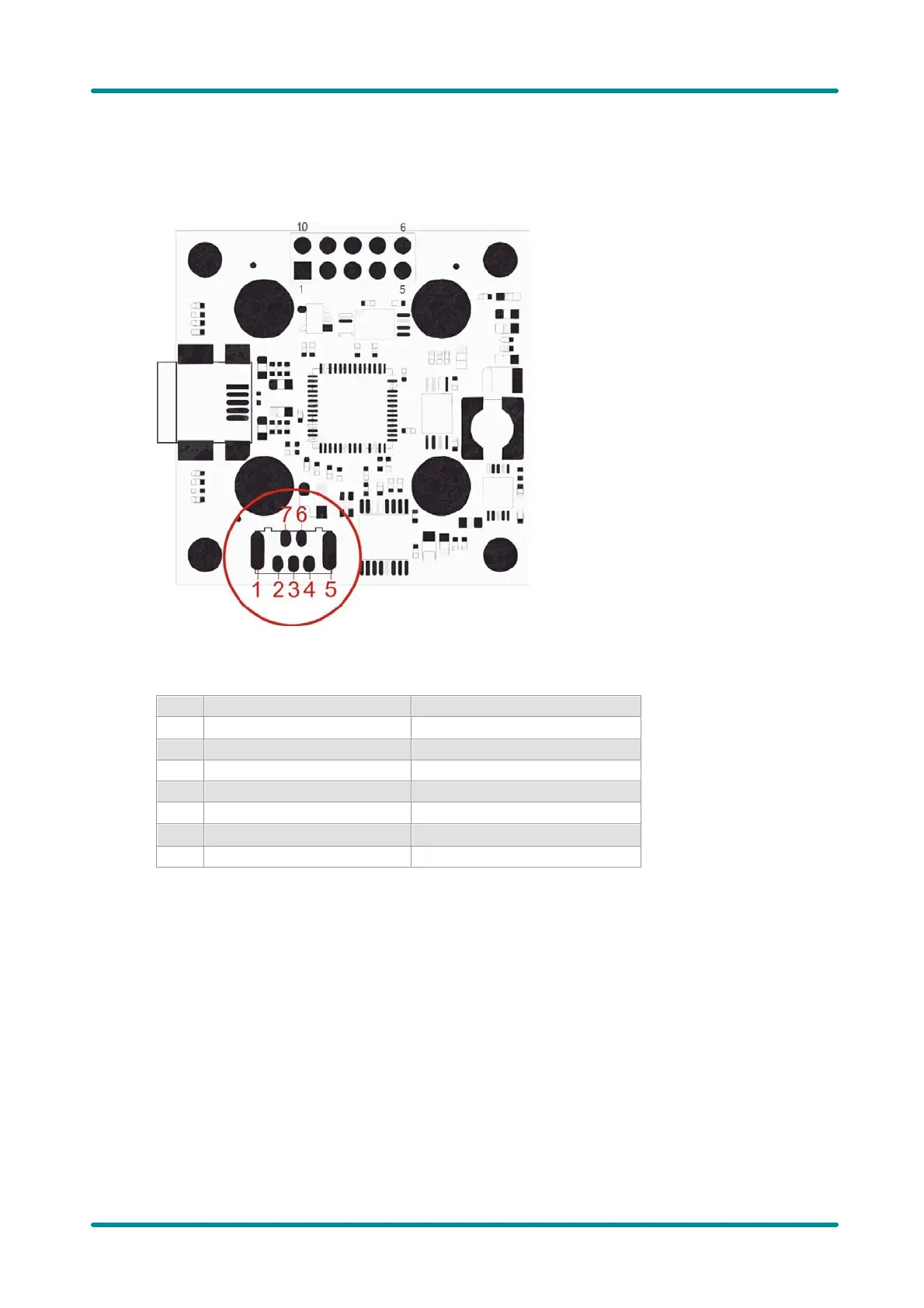

Figure 181: USB uEye LE - Pin assignment of the USB
connector
Pin
Description
USB cable (standard color)
1
Shielding
2
Power supply (VCC)
red
3
Data (+)
green
4
Ground (GND)
black
5
Shield
6
Not connected
7
Data (-)
white
