IDS uEye series User Manual

© 2009 IDS Imaging Development Systems GmbH 225
10 Accessories
10.5 GigE uEye HE
GigE uEye HE Cables
Purchase Order No.
Description
AD.0040.2.17000.00
GigE uEye HE Y-cable for trigger/flash/power supply, with AC adapter, 5 m/1.8 m
AD.0040.2.17100.00
GigE uEye HE Y-cable for trigger/flash/power supply, without AC adapter, 5 m
AD.0040.2.17700.00
GigE uEye HE cable for trigger/flash/power supply, 12 wires, 5 m
BK.0040.2.01900.00
GigE uEye HE MDR 14 connector, not fitted
The following cables are available in any desired lengths up to 50 m on request.
To ensure a sufficient voltage (6...24 V) at the camera input, we recommend the following
AC adapter voltages:
Power cable length
AC adapter voltage
up to 5 m
5-10 m
10-20 m
20-30 m
30-50 m
9-24 V
12-24 V
15-24 V
18-24 V
24 V

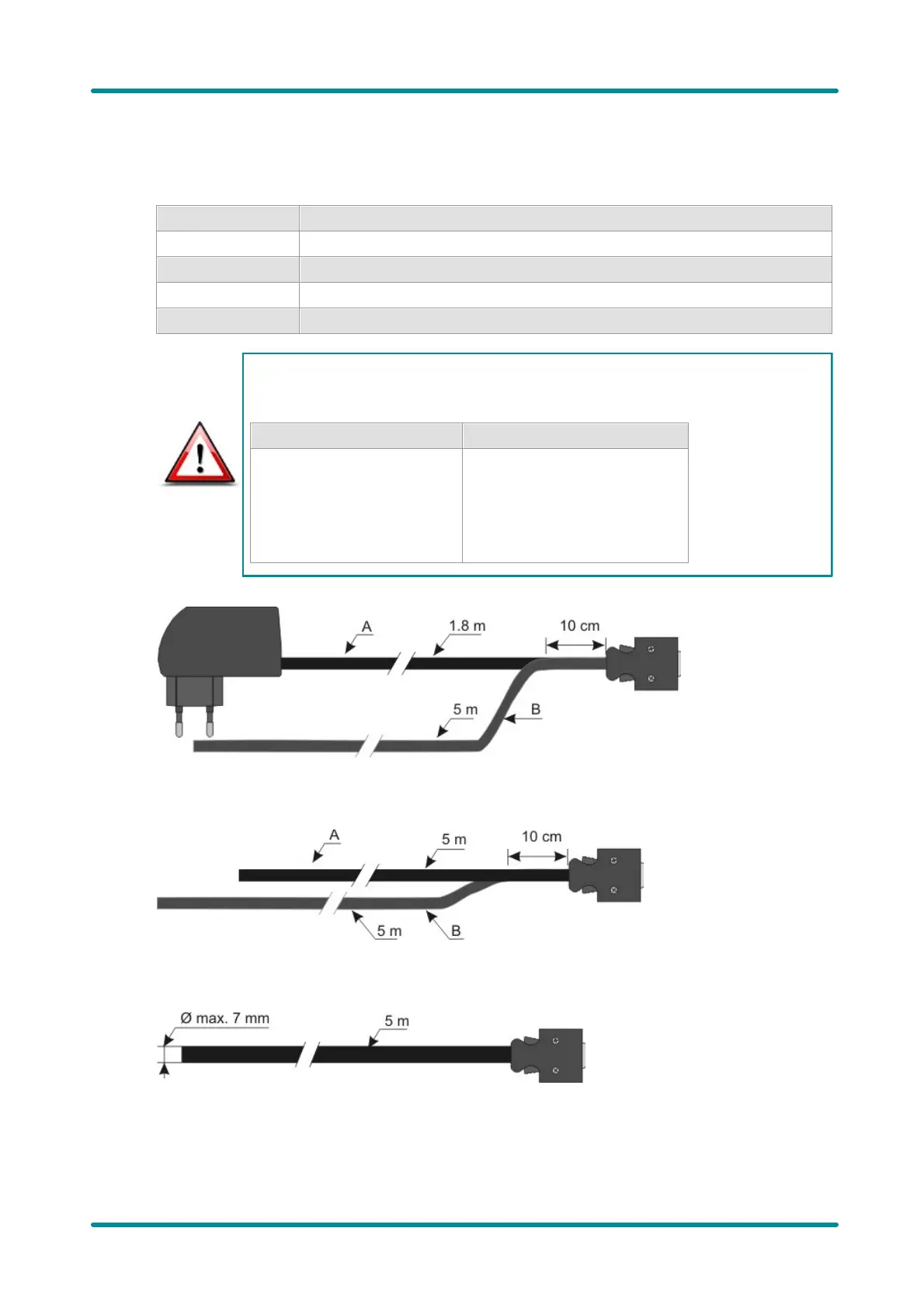

Figure 225: GigE uEye HE trigger and flash cable with AC adapter
(AD.0040.2.17000.00)
Figure 226: GigE uEye HE trigger and flash cable without AC adapter
(AD.0040.2.17100.00)
Figure 227: GigE uEye HE connecting cable, 12 wires
(AD.0040.2.17700.00)
