© 2009 IDS Imaging Development Systems GmbH156
User Manual uEye Cameras V3.32

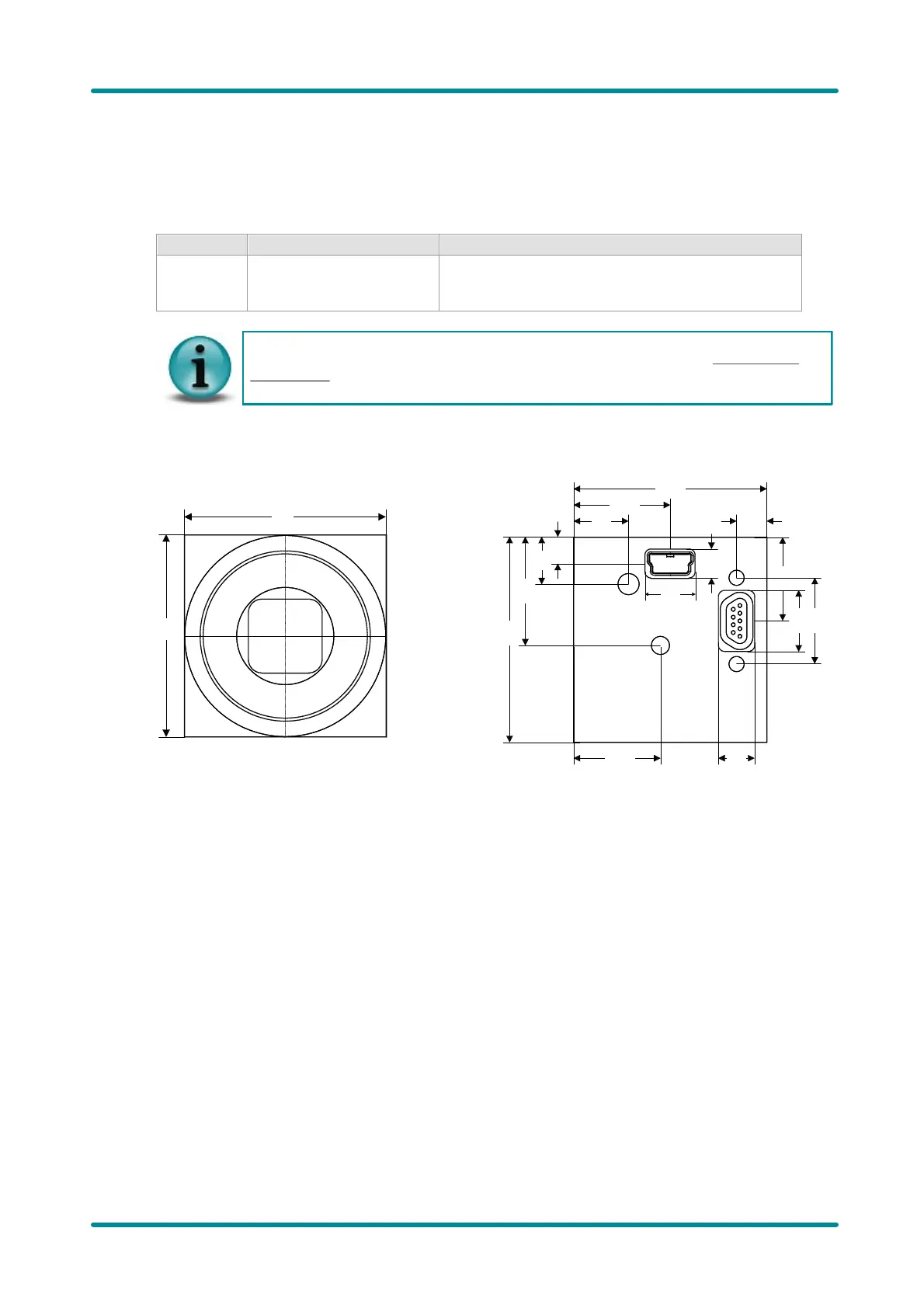

9.2 Mechanical Specifications
9.2.1 USB uEye SE
Housing Version
Lens mount
Enclosure protection class
Weight
C-mount
IP 30
with camera housing
62 g (CMOS), 74 g (CCD)
C-mount, without housing
32 g (CMOS), 44 g (CCD)
Board level version
18 g (CMOS), 30 g (CCD)
For the dimensions of the USB uEye SE accessories, please refer to the USB uEye SE
Accessories chapter.
CMOS/CCD cameras
30,0
30,0
Figure 106: Front view
34,00
32,00
9,10
7,75
17,95
14,40
4,15
16,00
8,30
5,10
5,00
M3
6,00
13,85
10,10
14,35
Figure 107: Rear view
