IDS uEye series User Manual

© 2009 IDS Imaging Development Systems GmbH 201
9 Specifications
9.3.4 GigE uEye SE

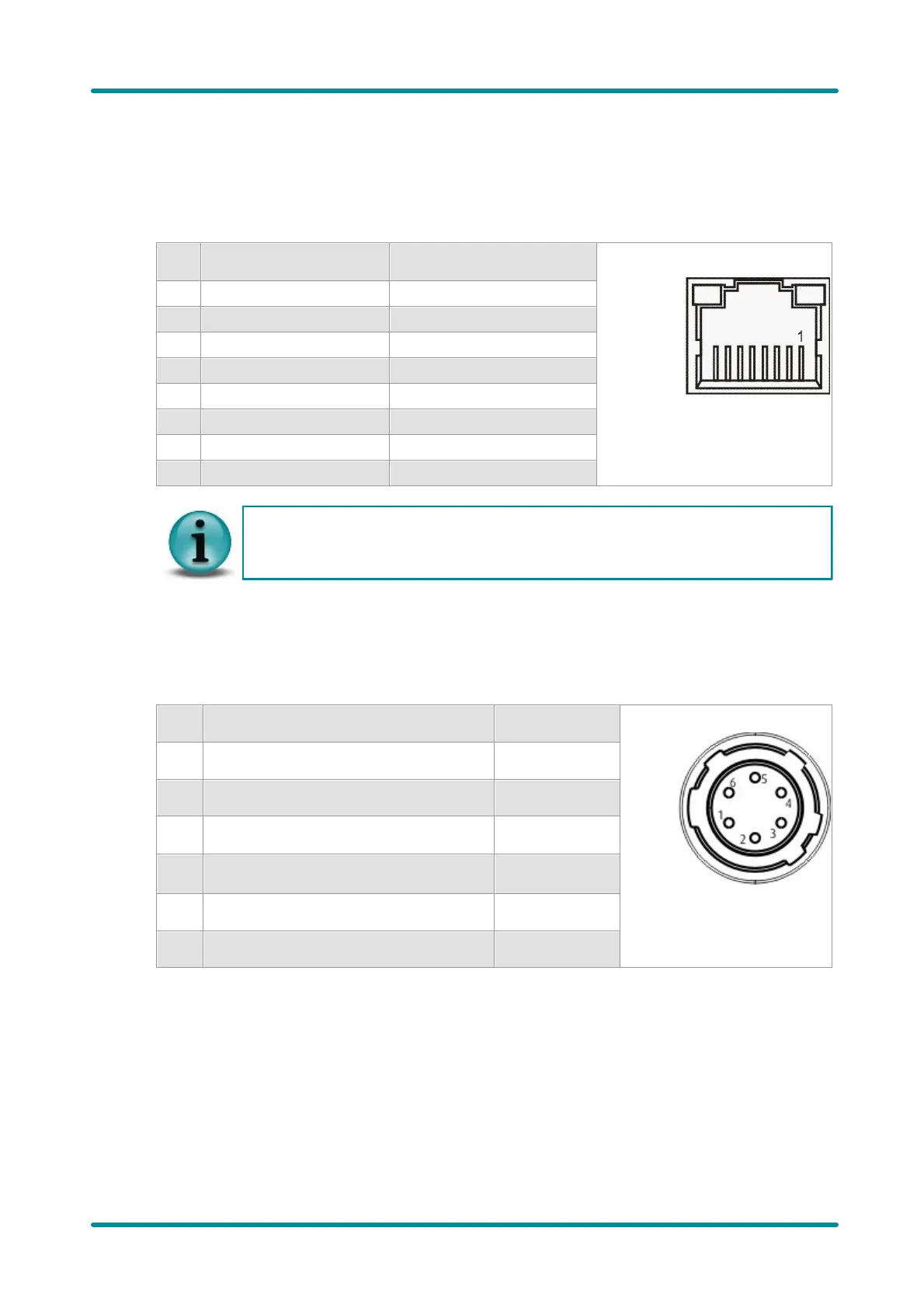

Pin Assignment of the GigE Connector (RJ45)
8-pin RJ45 socket
Pin
Designation
100BASE-TX
Designation
1000BASE-TX
Figure 187: Pin
assignment of the
GigE uEye SE RJ45
socket (ST2)
1
Tx+
Bl_DA+
2
Tx-
Bl_DA-
3
Rx+
Bl_DB+
4
Bl_DC+
5
Bl_DC-
6
Rx-
Bl_DB-
7
Bl_DD+
8
Bl_DD-
The RJ45 socket of the GigE uEye SE complies with the IEC 60603-7 standard.
Pin Assignment of the I/O Connector
6-pin Hirose connector
Pin
Description
Cable color
Figure 188: Pin
assignment of the
Hirose connector
(connecting side view)
1
Ground (GND)
white
2
Power supply (VCC) 12 V
brown
3
Digital input (-)
green
4
Digital input (+)
yellow
5
Digital output (+)
grey
6
Digital output (-)
pink

IDS uEye series Specifications

General

Sensor	CMOS
Interface	USB 2.0, USB 3.0, GigE
Shutter	Global or Rolling Shutter
Power Supply	Via USB or external power (depending on model)
Operating System	Windows, Linux
Mount	C-mount or CS-mount
Dimensions	29 x 29 x 29 mm
