© 2009 IDS Imaging Development Systems GmbH200
User Manual uEye Cameras V3.32
The General Purpose I/Os are not potential-free and have no protective circuits.
Internal supply voltage by sensor type
3.0 V
3.3 V
164xLE
155xLE
148xLE
122xLE
154xLE
146xLE

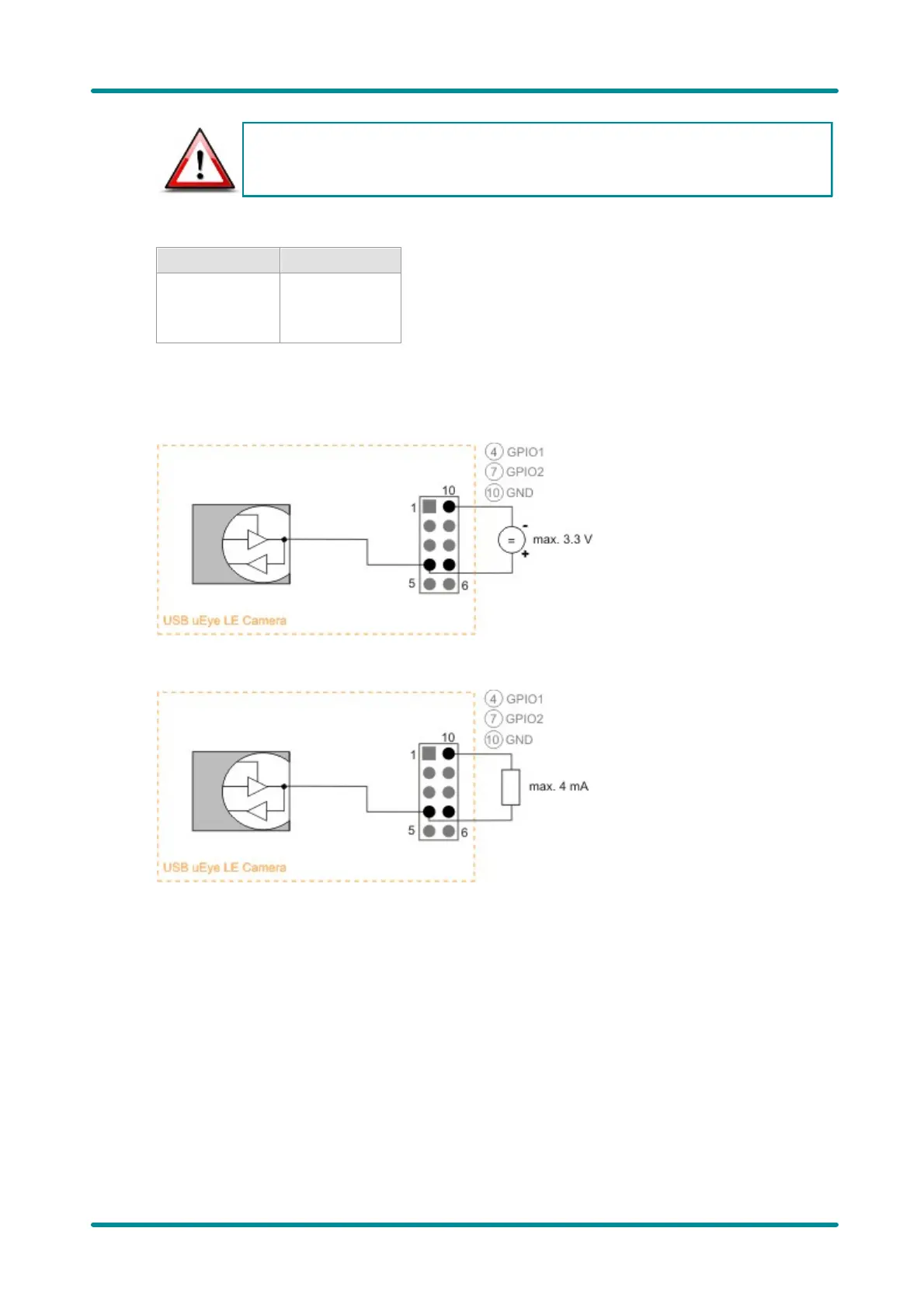

GPIO wiring
The following figures illustrate GPIO wiring examples.
Figure 185: GPIO wired as an input
Figure 186: GPIO wired as an output
