9 Specifications
Digital output wiring

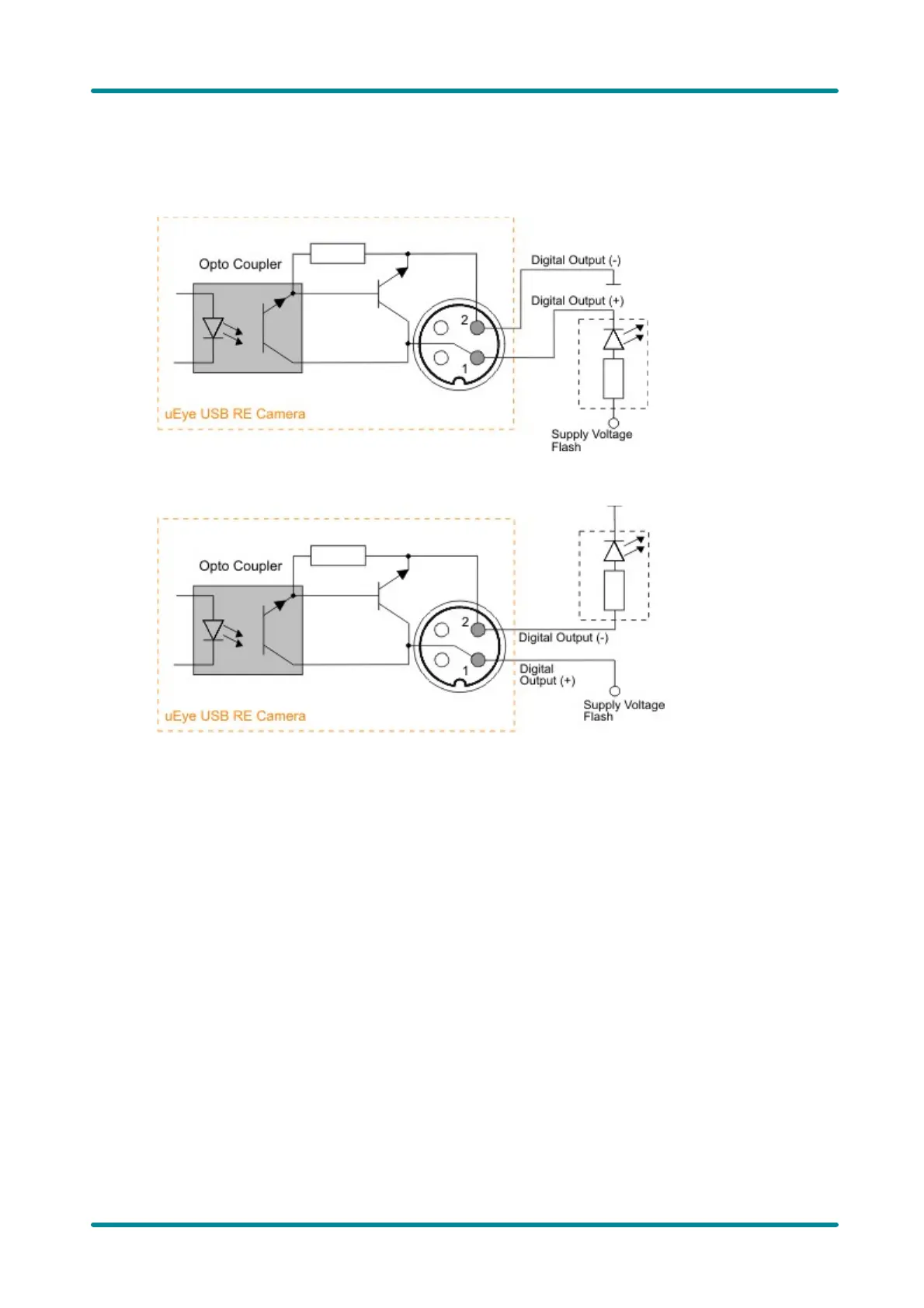

The following figures show examples of how the digital output is wired.
Figure 179: Wiring of the digital output as an open collector output
Figure 180: Wiring of the digital output as an open emitter output
