USB uEye RE USB accessories
Purchase Order No.
Description
AL.0094.2.01900.00
EX-1200 USB 2.0 high speed PCMCIA card, 2 ports, NEC chipset
AL.0094.2.02500.00
EX-1074 USB 2.0 high speed PCI card, 4 ports, NEC chipset
AL.0094.2.02400.00
EX-1171 USB 2.0 hub, metal housing, 7 ports
AL.0094.2.02100.00
EX-1171 USB 2.0 hub, 7 ports
AL.0094.2.02200.00
EX-1163 USB 2.0 hub, 4 ports
AL.0094.2.02300.00
USB 2.0 active expansion cable, 5 m (single port)
USB uEye RE trigger cable
Purchase Order No.
Description
AD.0040.2.12500.00
USB uEye RE trigger and flash cable, straight 4-pin connector, 5 m
AD.0040.2.12600.00
USB uEye RE trigger and flash cable, angled 4-pin connector, 5 m
BK.0068.2.01700.00
Binder 712 socket, 4-pin, straight (not fitted)
BK.0068.2.01800.00
Binder 712 socket, 4-pin, angled (not fitted)

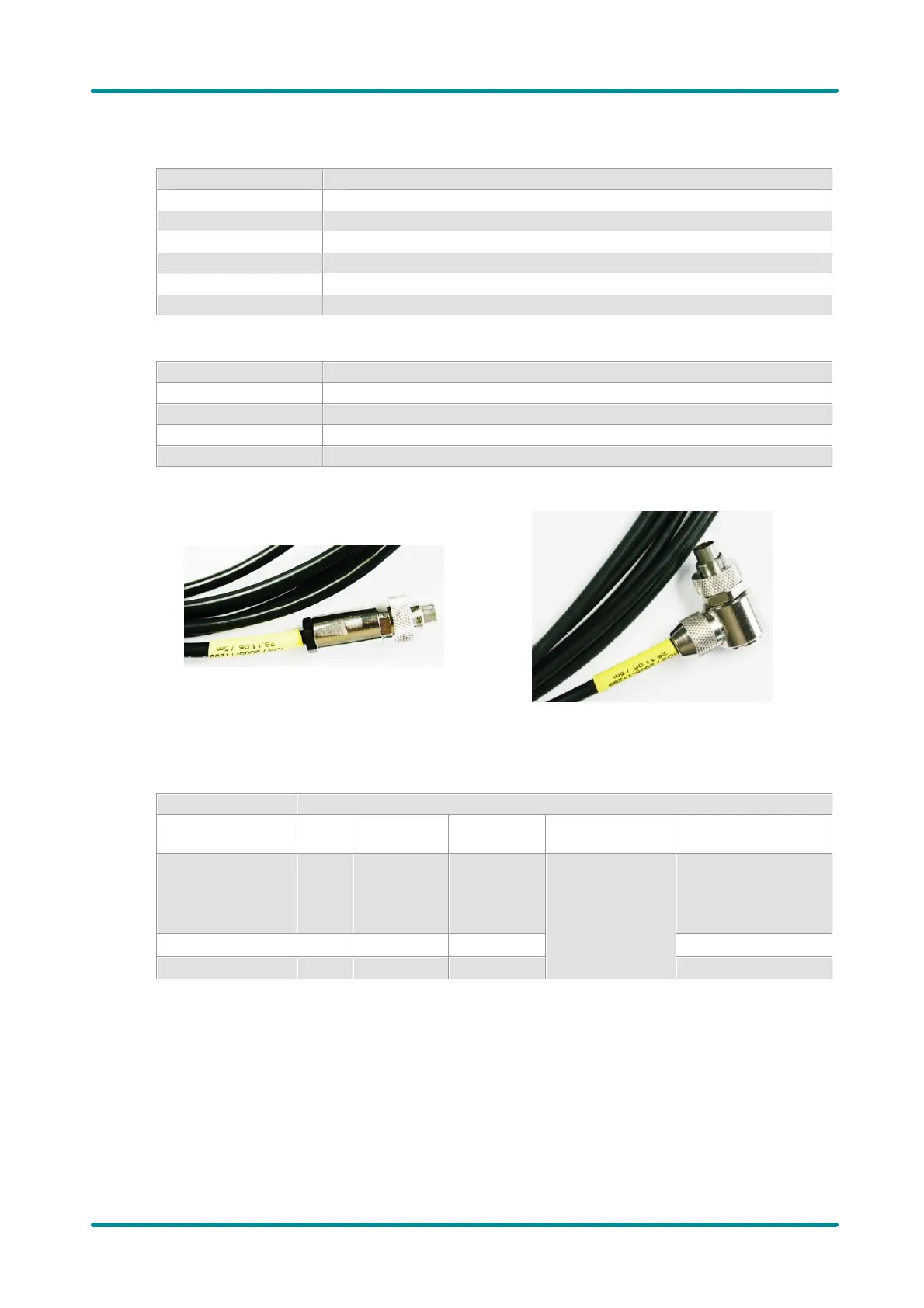

Figure 213: USB uEye RE trigger cable
with straight connector
Figure 214: USB uEye RE trigger
cable with angled connector
USB uEye RE lens tubes (optional)
Purchase Order No.
Description
Length
Max. usable
diameter
Max. usable
lens length
Protective glass
type
Suitable lenses
CK.0010.1.12100.00
51 mm
35 mm
up to 38 mm
IMPAdur clear
glass,heat-
strengthened,
AR-coating on the
inside,
thickness 3±0.3
mm
All Pentax megapixel
lenses (e.g. H1214M,
C1614M, etc.)
Tamron 23FM16SP
CK.0010.1.12000.00
64 mm
35 mm
up to 51 mm
Tamron 23FM25SP
CK.0010.1.12200.00
77 mm
35 mm
up to 64 mm
Tamron 23FM50SP

IDS uEye series Specifications

General

Sensor	CMOS
Interface	USB 2.0, USB 3.0, GigE
Shutter	Global or Rolling Shutter
Power Supply	Via USB or external power (depending on model)
Operating System	Windows, Linux
Mount	C-mount or CS-mount
Dimensions	29 x 29 x 29 mm
