Subsampling
Mode
Horizontal
*4)
+ Vertical
*4)
Method
H + V: Color subsampling
Frame rate w/ 2x subsampling, 640 x 512
pixels
fps
83
83
85
Frame rate w/ 4x subsampling, 320 x 256
pixels
fps
248
248
254
Frame rate w/ 8x subsampling, 160 x 128
pixels
fps
-
-
624
Hardware trigger
Mode
Asynchronous
Asynchronous
Asynchronous
Trigger delay with rising edge
µs
19.7 ±0.25
< 5
< 5
Trigger delay with falling edge
µs
38.0 ±0.25
< 5
< 5
Additive trigger delay (optional)
µs
15 µs-4 s
15 µs-4 s
15 µs-4 s
Sensor delay to exposure start
µs
< 200
*2)
< 200
*2)
< 200
*2)
Connected load
*5)
USB uEye
GigE uEye SE
GigE uEye HE
W
0.3-0.8
2.3-3.2
2.7-4.1
*1)
The maximum possible pixel clock frequency depends on the PC hardw are used.
*2)
Requires maximum pixel clock frequency.
*3)
Requires minimum pixel clock frequency.
*4)
Use of this function increases the frame rate.
*5)
The connected load depends on the sensor model and the pixel clock setting.

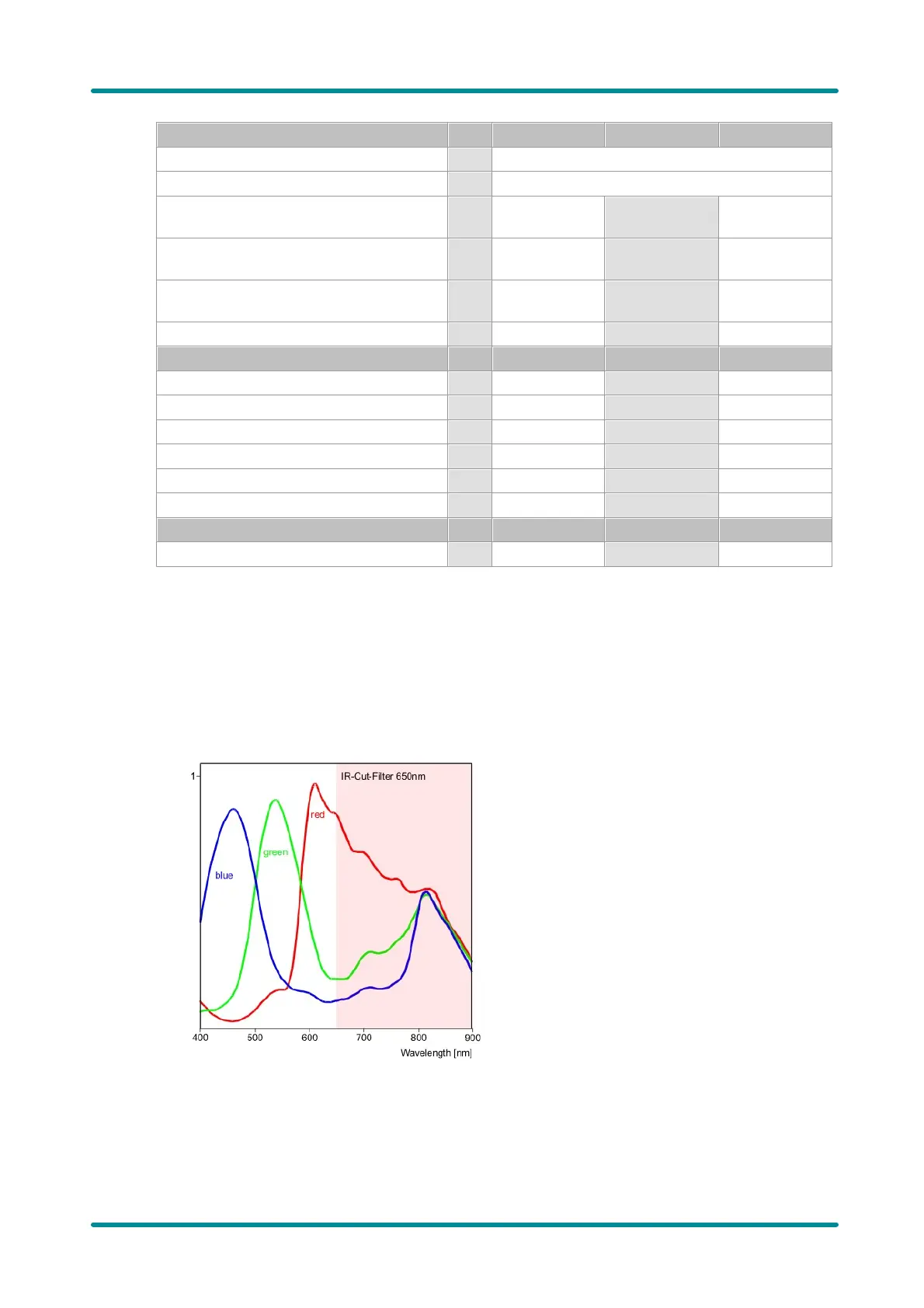

Relative sensor sensitivity
Color
Figure 95: Sensor sensitivity of the UI-164x / UI-564x

IDS uEye series Specifications

General

Sensor	CMOS
Interface	USB 2.0, USB 3.0, GigE
Shutter	Global or Rolling Shutter
Power Supply	Via USB or external power (depending on model)
Operating System	Windows, Linux
Mount	C-mount or CS-mount
Dimensions	29 x 29 x 29 mm
