© 2009 IDS Imaging Development Systems GmbH136
User Manual uEye Cameras V3.32
Vertical
*4)
Vertical
*4)
Method
V: Monochrome
binning, additive
H + V:
Monochrome
binning, additive
H + V:
Monochrome
binning, additive
Frame rate with 2x binning, 640 x 240 pixels
fps
135
135
135
Frame rate with 3x binning, 640 x 160 pixels
fps
183
183
183
Frame rate with 4x binning, 640 x 120 pixels
fps
221
221
221
Subsampling
Mode
-
-
-
Hardware trigger
Mode
Asynchronous
Asynchronous
Asynchronous
Trigger delay with rising edge
µs
43.2 ±4
< 5
< 5
Trigger delay with falling edge
µs
61.5 ±4
< 5
< 5
Additive trigger delay (optional)
µs
15 µs-4 s
15 µs-4 s
15 µs-4 s
Sensor delay to exposure start
µs
< 100
*2)
< 100
*2)
< 100
*2)
Connected load
*5)
USB uEye
GigE uEye SE
GigE uEye HE
W
1.0-1.9
3.1-4.1
3.4-5.2
*1)
The maximum possible pixel clock frequency depends on the PC hardw are used.
*2)
Requires maximum pixel clock frequency.
*3)
Requires minimum pixel clock frequency.
*4)
Use of this function increases the frame rate for monochrome models.
*5)
The connected load depends on the sensor model and the pixel clock setting.
Relative sensor sensitivity
Monochrome
Color

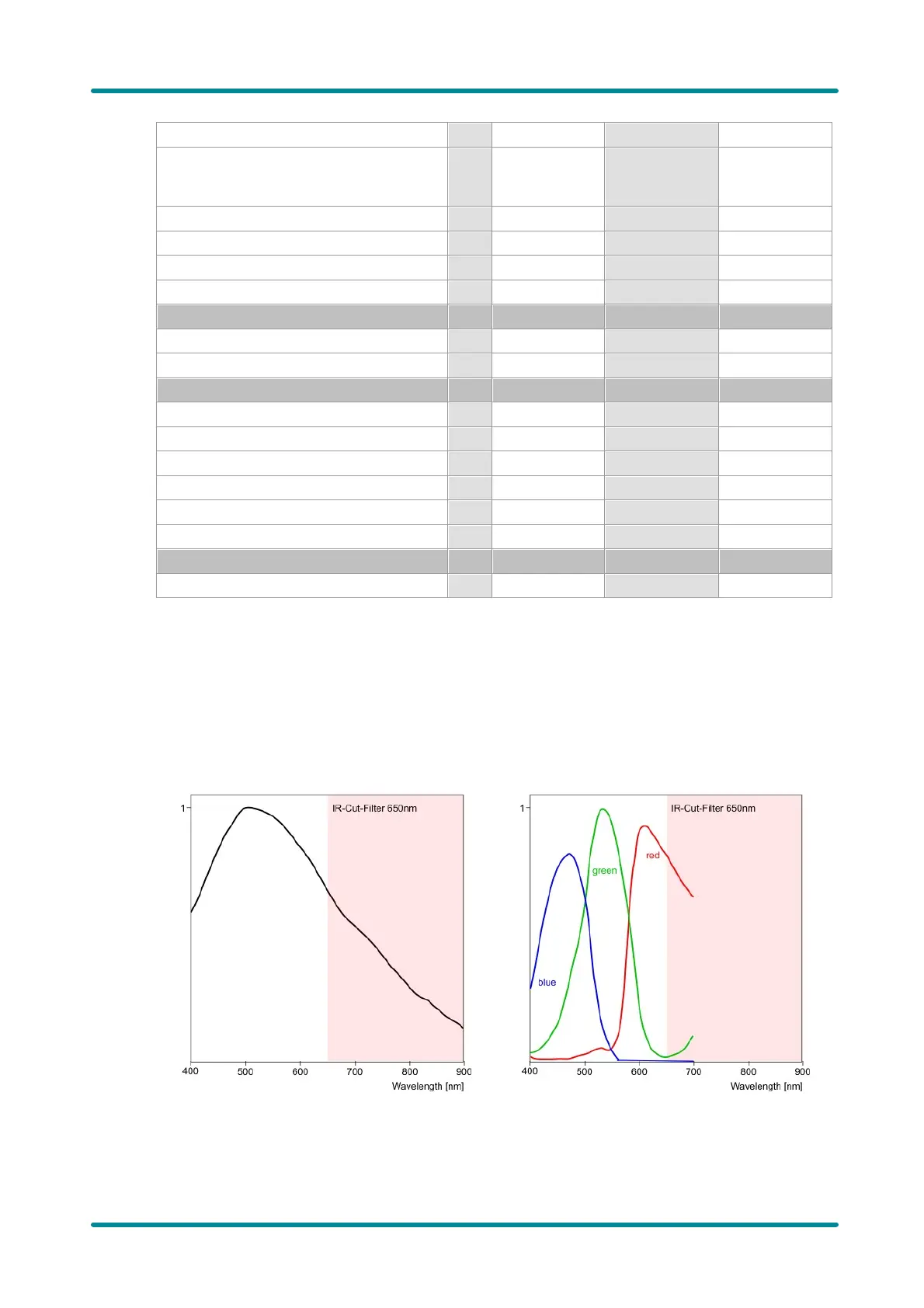

Figure 99: Sensor sensitivity of the UI-221x / UI-621x
