9 Specifications
Frame rate with 2x binning, 640 x 240 pixels
fps
131
131
Frame rate with 3x binning, 640 x 160 pixels
fps
174
174
Frame rate with 4x binning, 640 x 120 pixels
fps
208
208
Subsampling
Mode
Vertical
*4)
-
Method
V: Color subsampling
Frame rate w/ 2x subsampling, 320 x 240
pixels
fps
131
131
Hardware trigger
Mode
Asynchronous
Asynchronous
-
Trigger delay with rising edge
µs
43.2 ±4
< 5
Trigger delay with falling edge
µs
61.5 ±4
< 5
Additive trigger delay (optional)
µs
15 µs-4 s
15 µs-4 s
Sensor delay to exposure start
µs
< 100
*2)
< 100
*2)
Connected load
*5)
USB uEye
GigE uEye SE
GigE uEye HE
W
1.0-1.6
3.0-3.8
-
*1)
The maximum possible pixel clock frequency depends on the PC hardw are used.
*2)
Requires maximum pixel clock frequency.
*3)
Requires minimum pixel clock frequency.
*4)
Use of this function increases the frame rate for monochrome models.
*5)
The connected load depends on the sensor model and the pixel clock setting.
Relative sensor sensitivity
Monochrome
Color

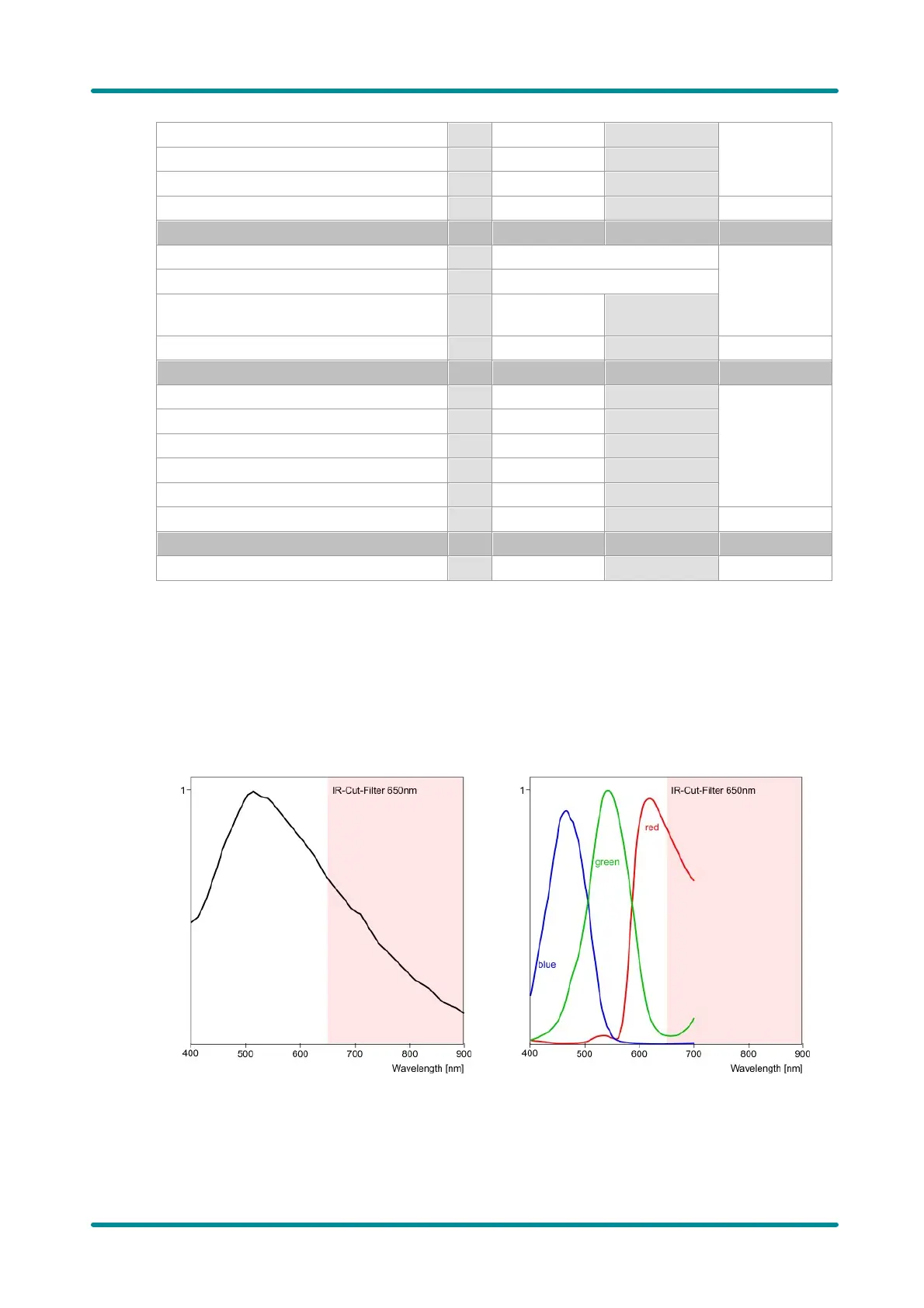

Figure 100: Sensor sensitivity of the UI-231x / UI-631x

IDS uEye series Specifications

General

Sensor	CMOS
Interface	USB 2.0, USB 3.0, GigE
Shutter	Global or Rolling Shutter
Power Supply	Via USB or external power (depending on model)
Operating System	Windows, Linux
Mount	C-mount or CS-mount
Dimensions	29 x 29 x 29 mm
