IDS uEye series User Manual

© 2009 IDS Imaging Development Systems GmbH158
User Manual uEye Cameras V3.32
CCD cameras
34,4
48,3
34,0
27,5
6,5
15,6
17,0
9,5
Thread:
1: M3 x 4mm
1
1
1
37,2

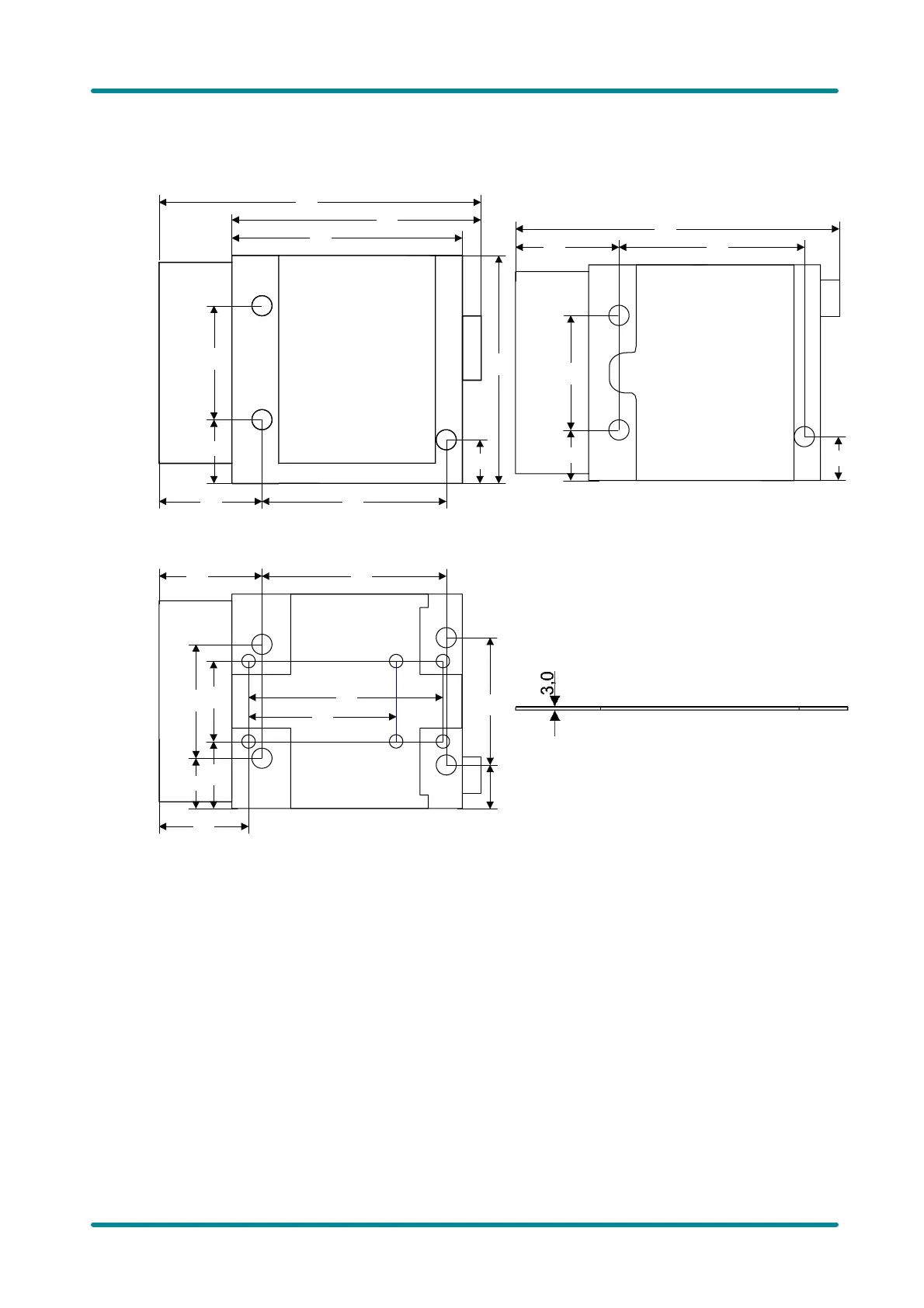

Figure 112: Side view
17,0
7,5
27,5
15,6
6,5
Thread:
1: M3 x 4mm
1
1
1
48,3
Figure 113: Top view
12,0
17,0
19,0
29,0
7,5
10,0
27,5
6,5
15,6
Threads:
1: M3 x 4mm
2: M2 x 4mm
1
1
1
1
2
2
2 2
22,0
2
2
13,6
Figure 114: Bottom view
Figure 115: Base - side view

IDS uEye series Specifications

General

Sensor	CMOS
Interface	USB 2.0, USB 3.0, GigE
Shutter	Global or Rolling Shutter
Power Supply	Via USB or external power (depending on model)
Operating System	Windows, Linux
Mount	C-mount or CS-mount
Dimensions	29 x 29 x 29 mm
