© 2009 IDS Imaging Development Systems GmbH 167
9 Specifications
PCB Version and Lens Holder

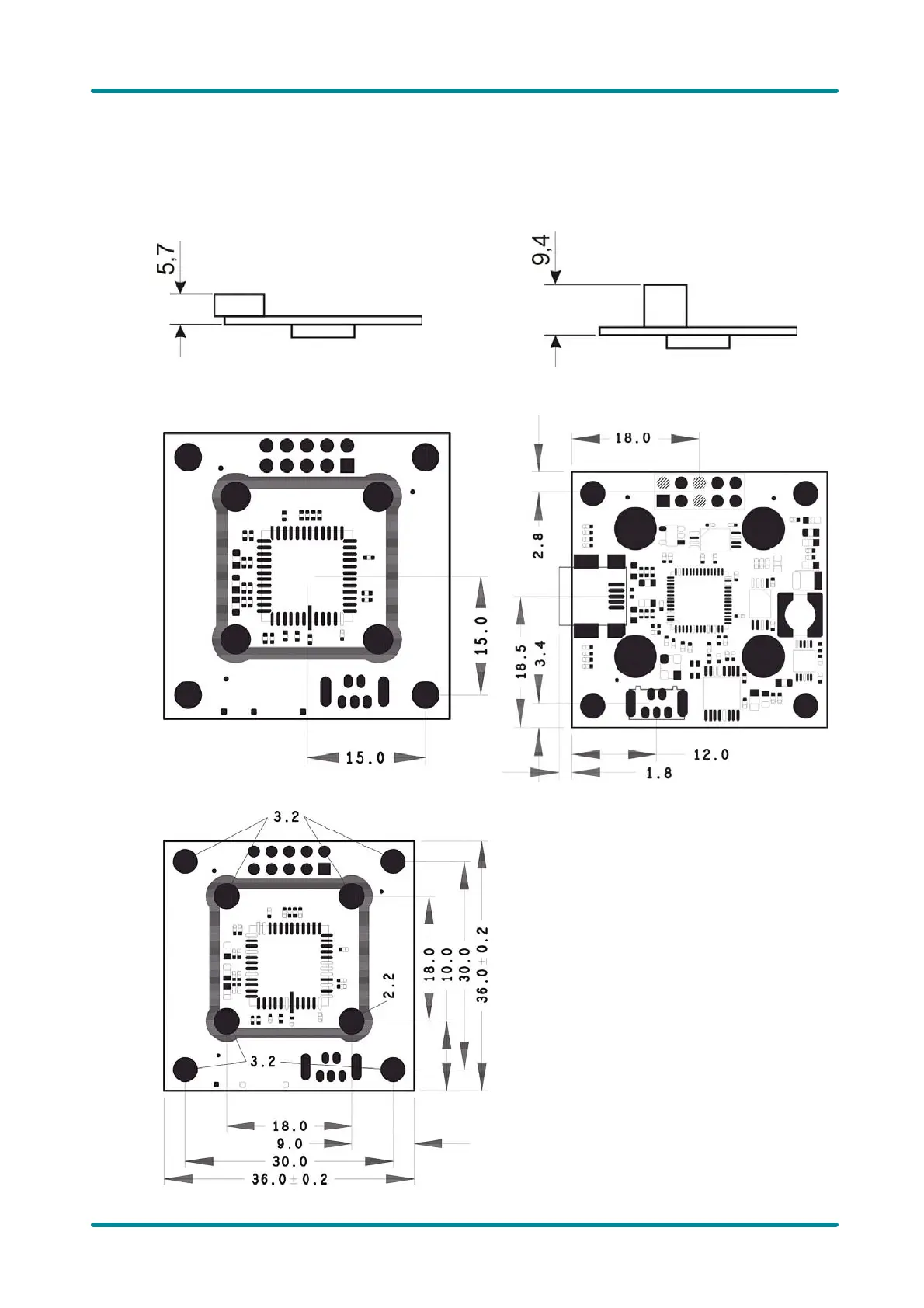

Dimensions of the board level version
Figure 133: USB connector - horizontal
position (default)
Figure 134: USB connector - vertical
position (project-related option)

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the IDS uEye series and is the answer not in the manual?

IDS uEye series Specifications

General IconGeneral
SensorCMOS
InterfaceUSB 2.0, USB 3.0, GigE
ShutterGlobal or Rolling Shutter
Power SupplyVia USB or external power (depending on model)
Operating SystemWindows, Linux
MountC-mount or CS-mount
Dimensions29 x 29 x 29 mm
