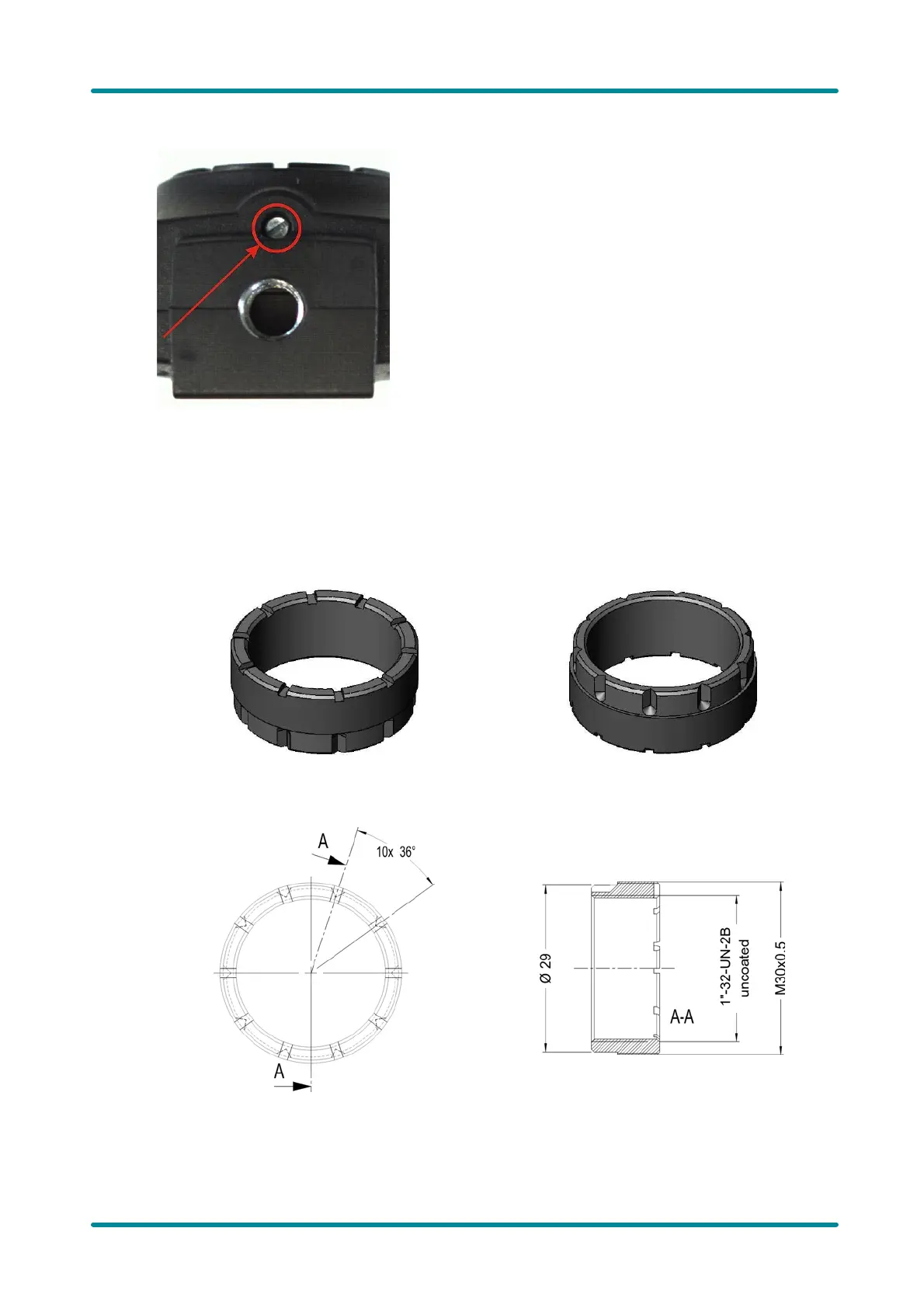

Figure 154: Securing the adjusting
ring
GigE uEye HE
The adjusting ring of the GigE uEye HE camera has 10 adjusting positions. For each adjusting
position, the flange back distance is altered by +/- 50 µm.
Figure 155: GigE uEye HE
adjusting ring - top view
Figure 156: GigE uEye HE
adjusting ring - bottom view
Figure 157: Calculating the flange
back distance (schematic
illustration)
Figure 158: Calculating the flange
back distance (schematic illustration)

IDS uEye series Specifications

General

Sensor	CMOS
Interface	USB 2.0, USB 3.0, GigE
Shutter	Global or Rolling Shutter
Power Supply	Via USB or external power (depending on model)
Operating System	Windows, Linux
Mount	C-mount or CS-mount
Dimensions	29 x 29 x 29 mm
