6 Camera Basics
Components of the GigE uEye HE camera
The GigE uEye HE cameras have a modular structure consisting of the following components:
· Gigabit Ethernet board, including:
§ a Gigabit Ethernet interface which controls data traffic between the camera and the host PC
§ an FPGA which controls the camera functions and performs basic image preprocessing
§ a 64-Mbyte memory used for processing image data
· Sensor board. This board includes:
§ the sensor
§ an EEPROM where the camera type is stored
· Timing board (CCD cameras only)
§ The timing board digitizes the analog output signals of the CCD sensor.

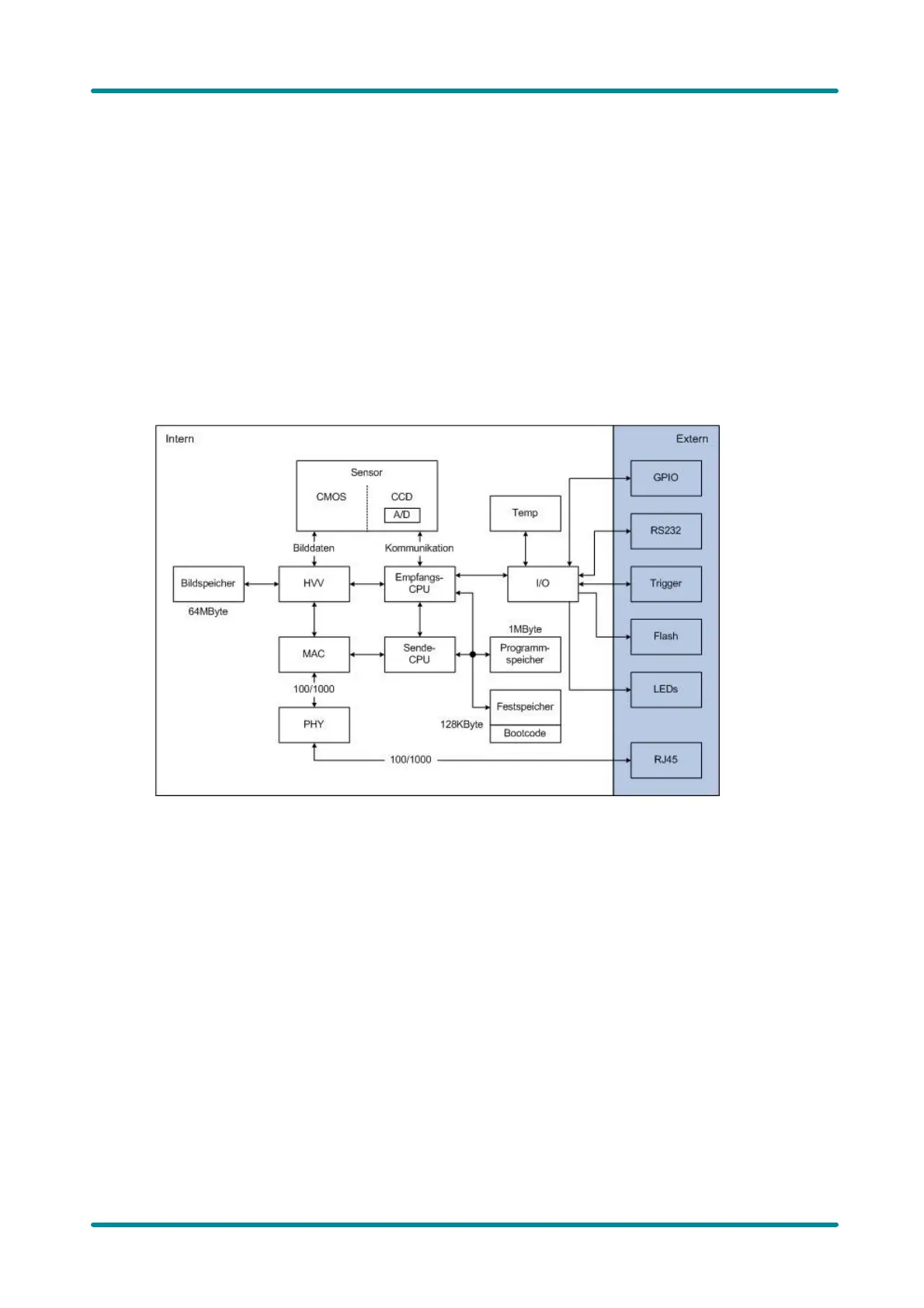

Figure 20: Block diagram of the GigE uEye HE

IDS uEye series Specifications

General

Sensor	CMOS
Interface	USB 2.0, USB 3.0, GigE
Shutter	Global or Rolling Shutter
Power Supply	Via USB or external power (depending on model)
Operating System	Windows, Linux
Mount	C-mount or CS-mount
Dimensions	29 x 29 x 29 mm
