User Manual uEye Cameras V3.32
configured for the relevant subnet.

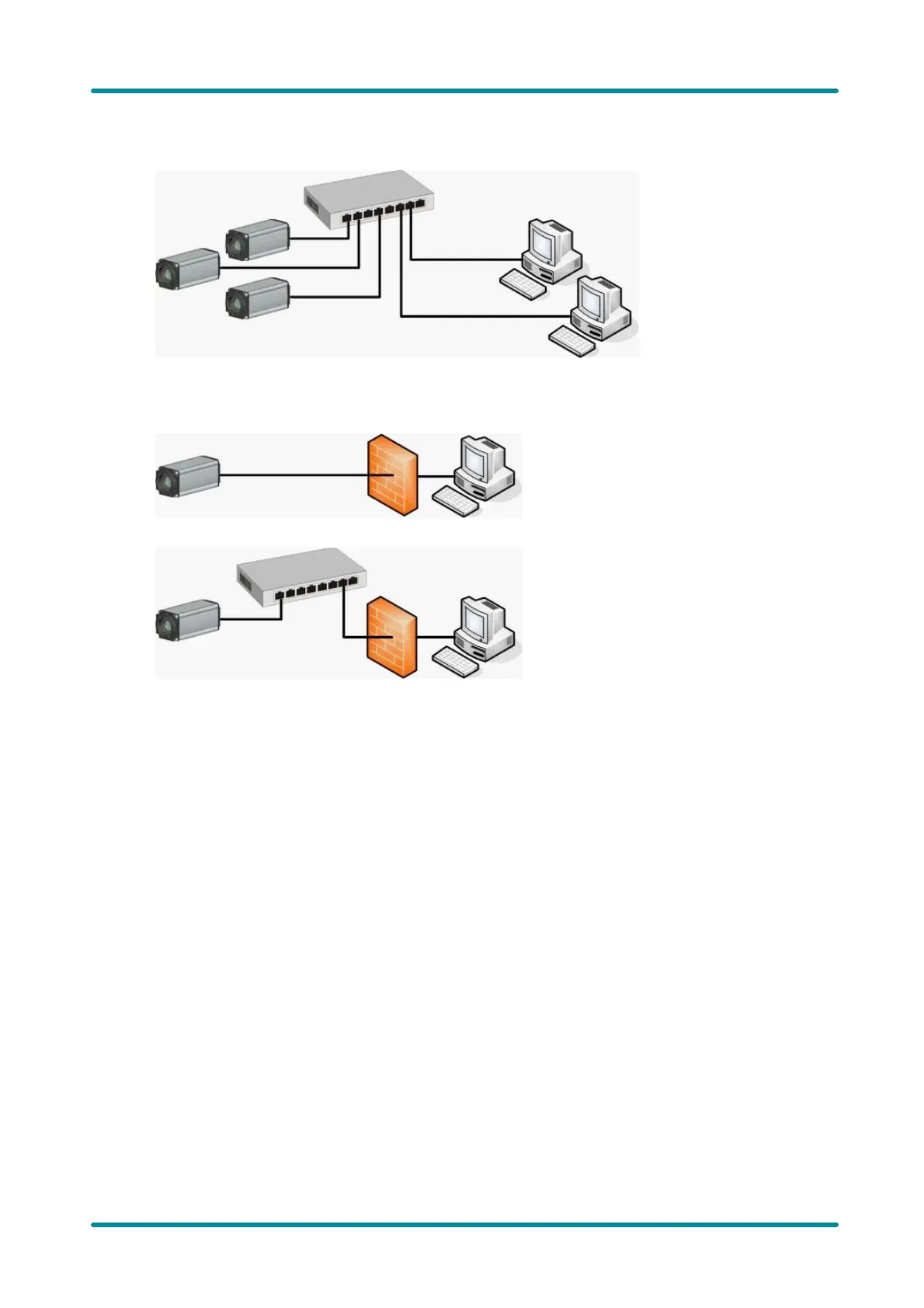

Figure 48: Multiple cameras and PCs networked using a switch
Connecting the camera to a PC behind a firewall
The use of external firewalls between the camera and the host PC is not recommended on image
data networks. If you nonetheless want to use a firewall, please ensure that ports 50000, 50001,
50002 and 50003 are open for the UDP protocol.
The built-in Windows Firewall or personal firewalls installed as software in the host PC usually do not
cause any problems.

IDS uEye series Specifications

General

Sensor	CMOS
Interface	USB 2.0, USB 3.0, GigE
Shutter	Global or Rolling Shutter
Power Supply	Via USB or external power (depending on model)
Operating System	Windows, Linux
Mount	C-mount or CS-mount
Dimensions	29 x 29 x 29 mm
