© 2009 IDS Imaging Development Systems GmbH 83
8 Applications
Log Window
Select View menu ® Log window to display the logged data. The uEye logs events and messages in
this window.

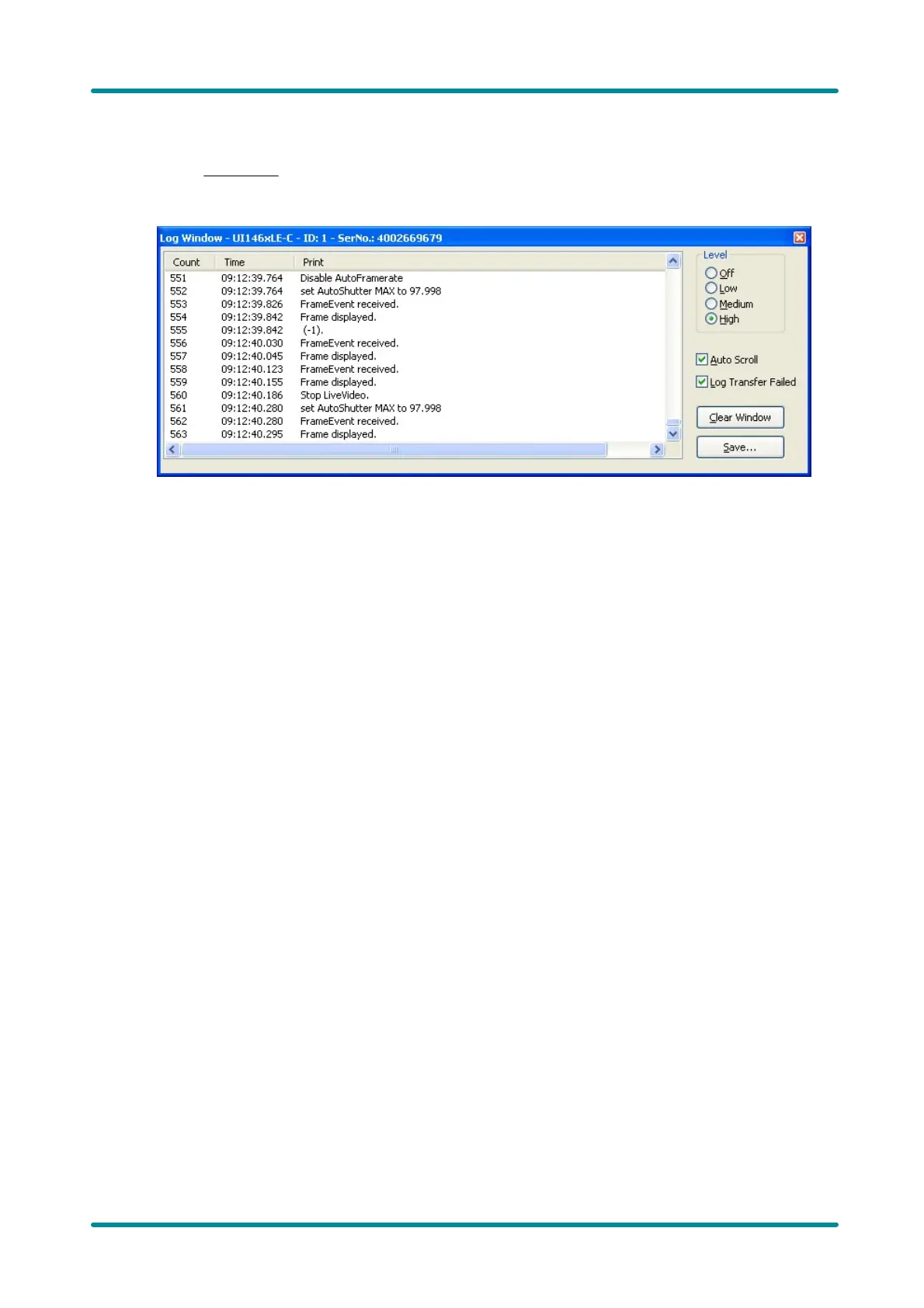

Figure 73: View menu – Log window
The following options are available:
· Level
With these radio buttons, you choose the logging level (Off, Low, Medium, High). The last level
used is saved when you close the window. The next time you open the log window, logging is
performed at that level.
· Auto Scroll
When you select the Auto Scroll check box, the display automatically scrolls up when new entries
arrive so that the new entries can be read.
· Log Transfer Failed
Select the Log Transfer Failed check box if you want to log transfer errors.
· Clear Window
The Clear Window button deletes the current messages.
· Save
The Save button opens the Windows Save as dialog box, allowing you to save the messages
displayed in the log window in ASCII format (.txt file).
