IEI Technology AFL-08B-N270 User Manual

AFL-08B-N270 User Manual
Page 17

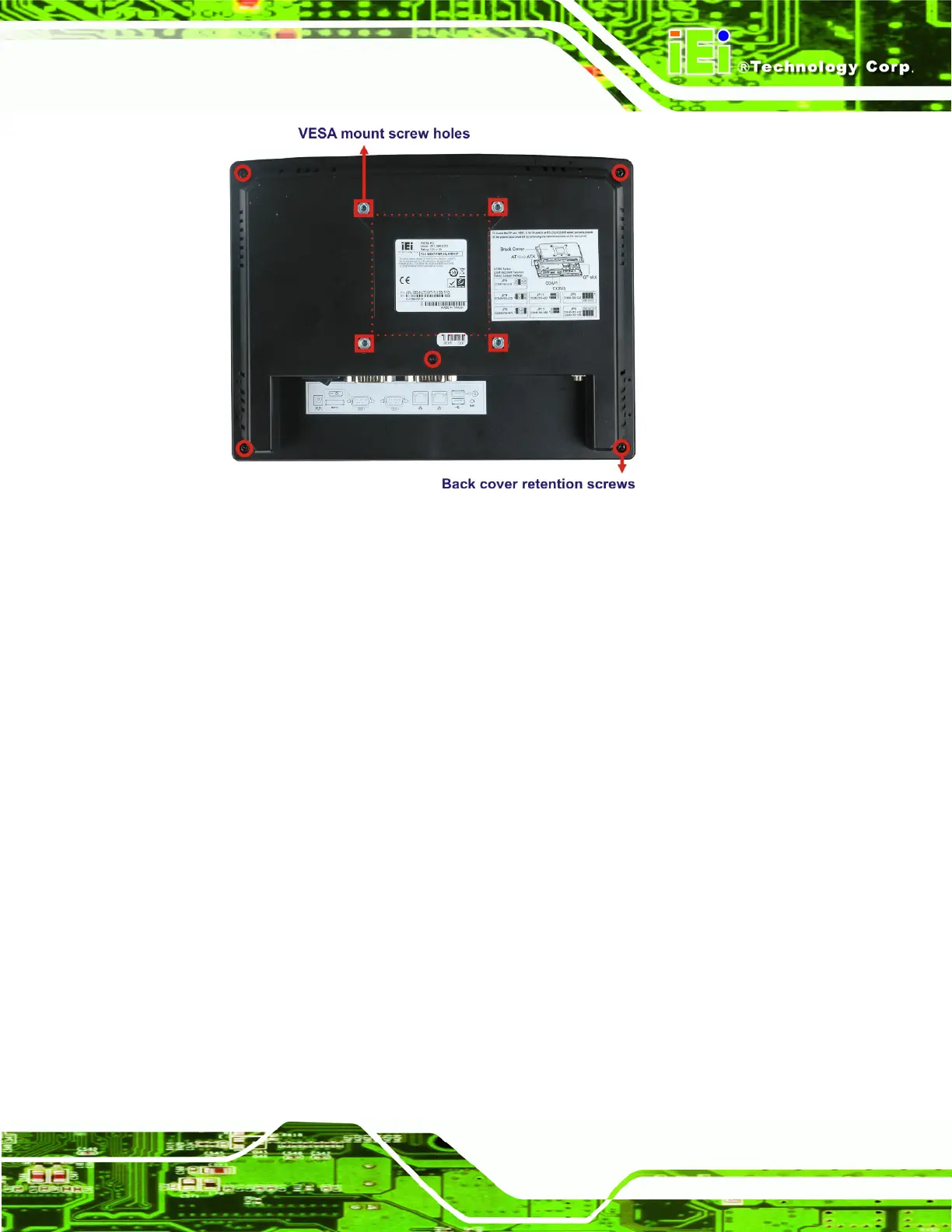

Figure 1-3: AFL-08B-N270 Rear View
1.3.3 I/O Interface Panel
The I/O interface panel located on the bottom of the AFL-08B-N270 has the following I/O
interface connectors:
 1 x 12 V DC-IN connector
 1 x Audio line-out jack
 1 x External SATA port
 1 x Power switch
 1 x Reset button
 2 x RJ-45 GbE LAN ports
 1 x RS-232 serial port
 1 x RS-232/422/485 serial port
 2 x USB 2.0 connectors
The external I/O interface connector panel is shown in the following figure.
