The CompactFlash® slot is connected through an IDE connection. This jumper sets the
CompactFlash® card as the master or slave IDE device.
Setting Description
Open Master (Default)
Short Slave
Table 2-11: CompactFlash® Setup Jumper Settings

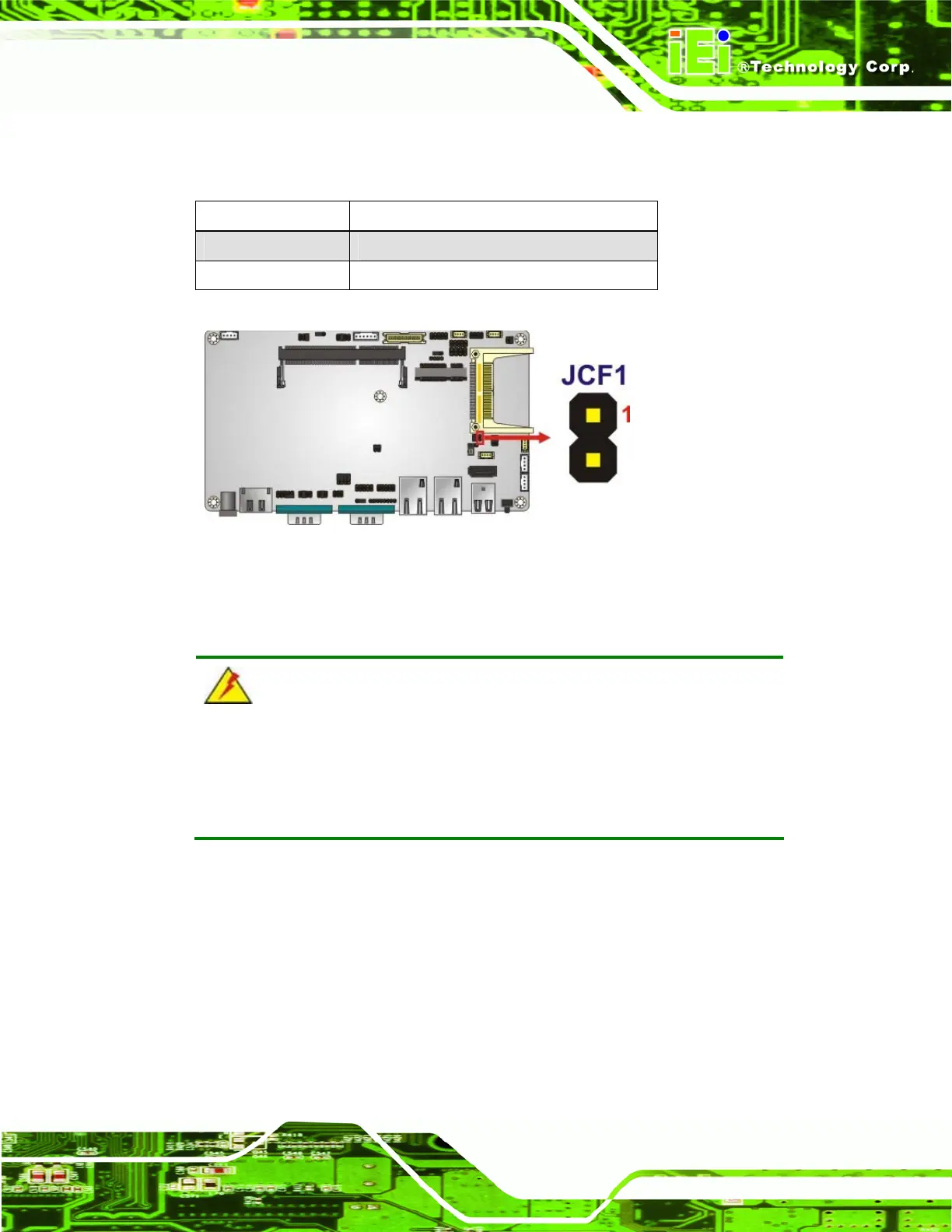

Figure 2-10: CompactFlash® Setup Jumper Location
2.6 Mounting the System
WARNING!
When mounting the panel PC onto an arm, onto the wall or onto a panel, it
is better to have more than one person to help with the installation to make
sure the panel PC does not fall down and get damaged.
The four methods of mounting the AFL-08B-N270 are listed below.
Wall mounting
Panel mounting
Arm mounting
Rack mounting
The four mounting methods are described below.
