AFL-08B-N270 User Manual
Page 47
Step 2: Once the mounting arm has been firmly attached to the surface, lift the panel PC
onto the interface pad of the mounting arm.
Step 3: Align the retention screw holes on the mounting arm interface with those in the
panel PC. The arm mount retention screw holes are shown in
Figure 2-19.

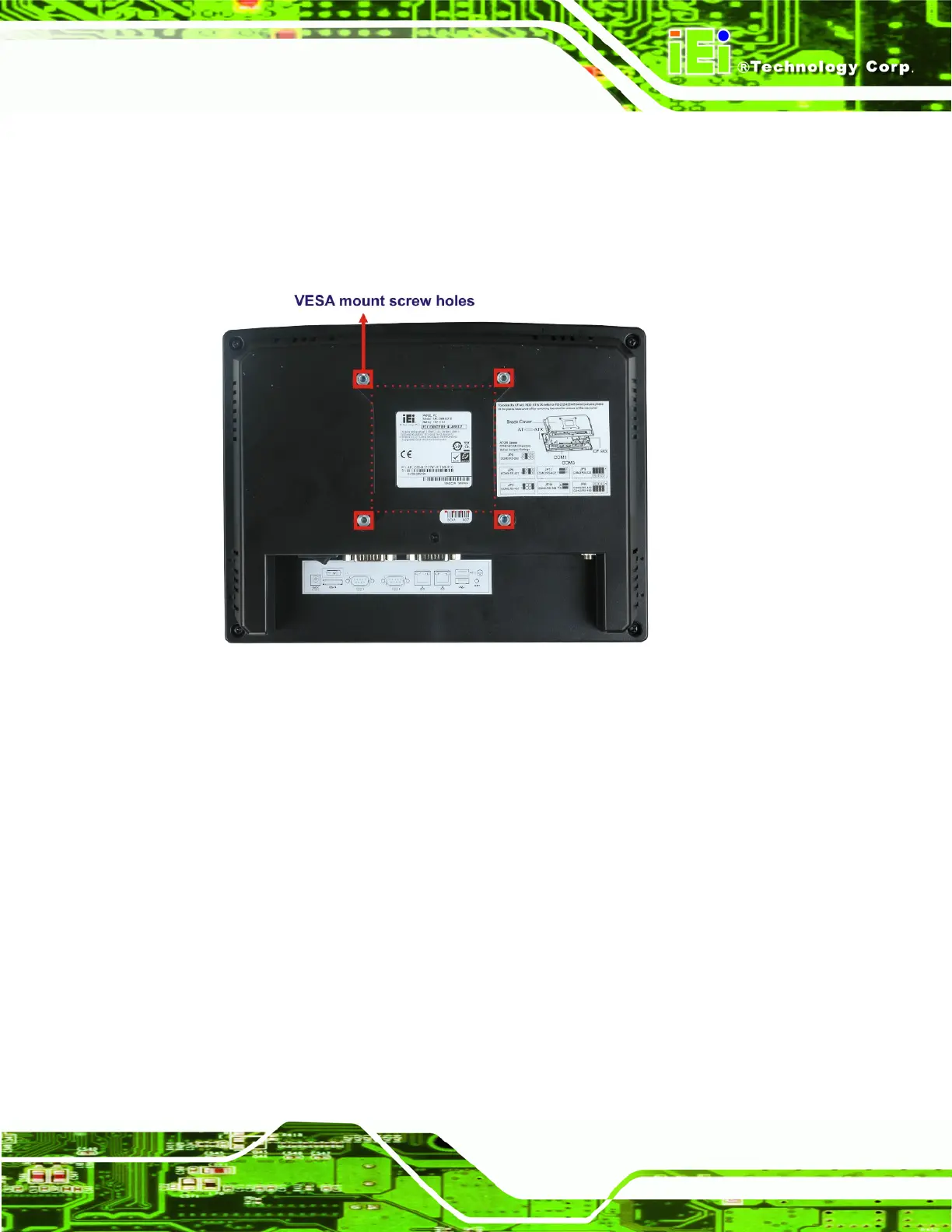

Figure 2-19:AFL-08B-N270 Arm Mounting Retention Screw Holes
Step 4: Secure the panel PC to the interface pad by inserting the retention screws
through the bottom of the mounting arm interface pad and into the panel PC.
Step 0:
2.7 Bottom Panel Connectors
All I/O interface connections of the AFL-08B-N270 are found on the bottom panel.
2.7.1 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connector enables connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
