AFL-08B-N270 User Manual
Page 28

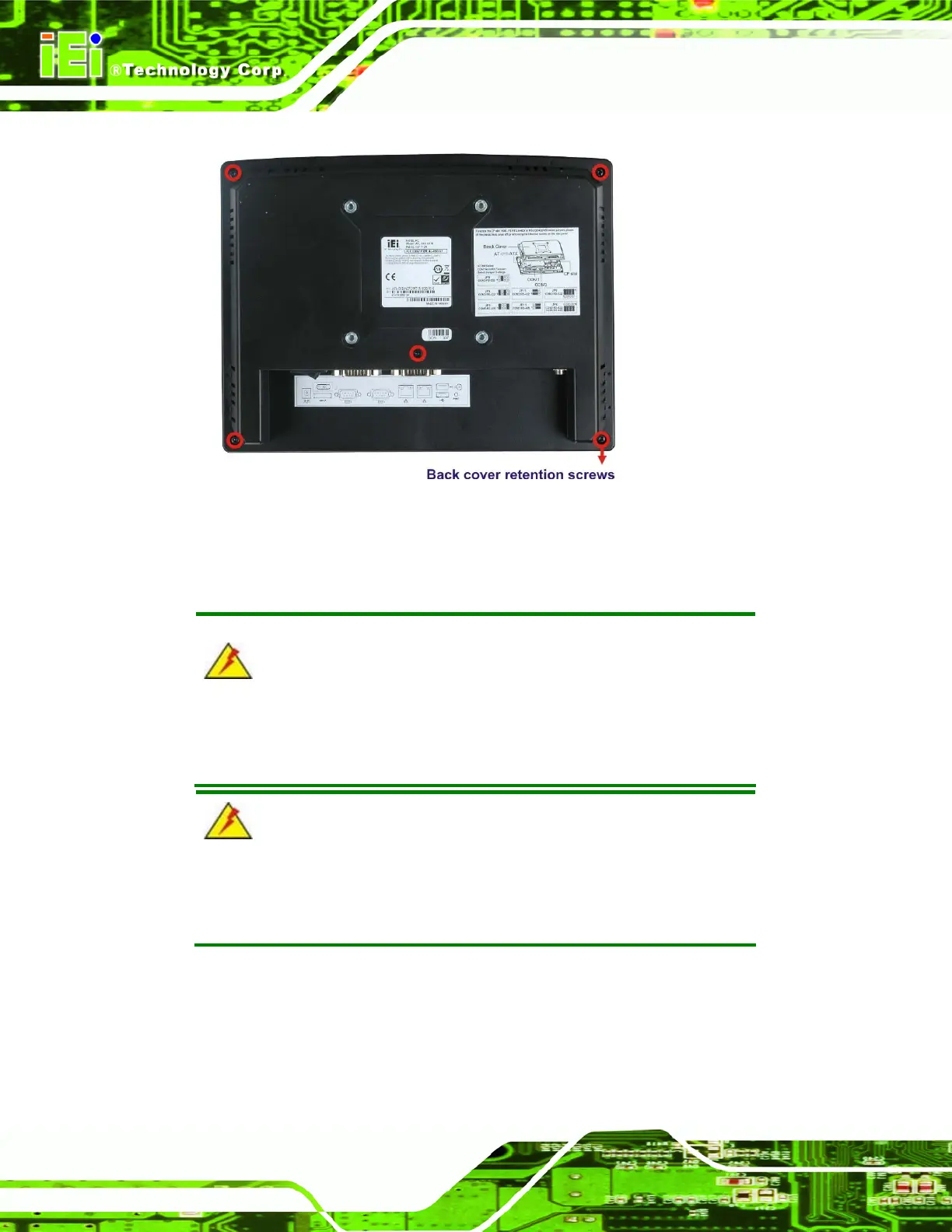

Figure 2-1: Back Cover Retention Screws
Step 2: Lift the cover and pull down the cover a bit to make it possible to fully remove it.
More strength is required to separate the cover from the chassis. Step 0:
WARNING:
Failing to reinstall the covers may result in permanent damage to the
system. Please make sure all coverings are properly installed.
WARNING:
Over-tightening rear cover screws will crack the plastic frame.
Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm).
2.3 CF Card Installation
The AFL-08B-N270 has one CF Type II slot inside the rear panel cover. The slot can be
accessed after removing the back cover. To install the CF card, follow the instructions
below.
