AFL-08B-N270 User Manual
Page 30
2.4 AT/ATX Mode Selection
AT and ATX power modes can both be used on the AFL-08B-N270. The selection is made
through an AT/ATX switch on the top edge of the inner aluminum cover (
Figure 2-4). To
select AT mode or ATX mode, follow the steps below.
Step 1: Locate the AT/ATX switch on the top edge of the aluminum cover (
Figure 2-4).

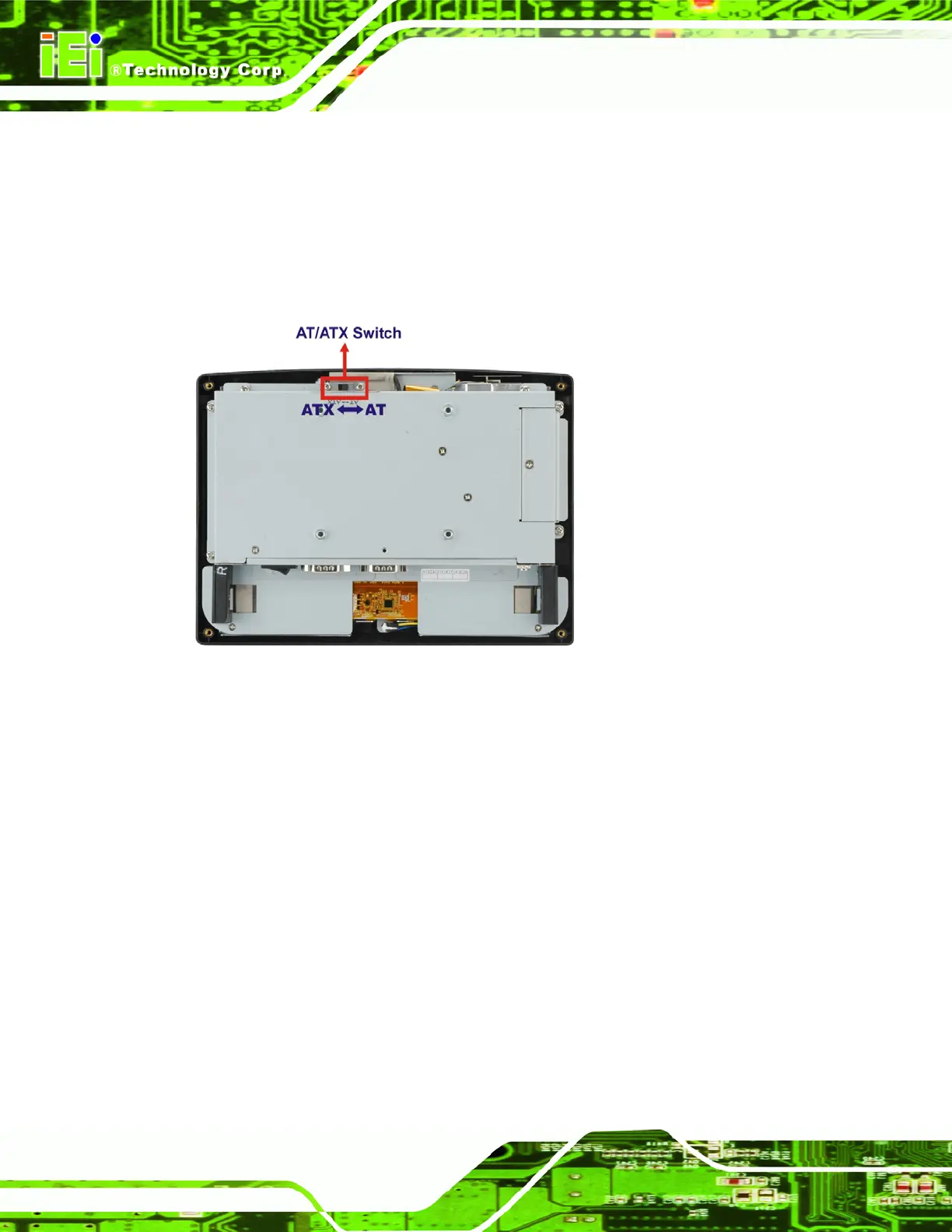

Figure 2-4: AT/ATX Switch Location
Step 2: Adjust the AT/ATX switch. Step 0:
2.4.1 AT Power Mode
With the AT mode selected, the power is controlled by a central power unit rather than a
power switch. The AFL-08B-N270 panel PC turns on automatically when the power is
connected. The AT mode benefits a production line to control multiple panel PCs from a
central management center and other applications including:
 ATM
 Self-service kiosk
 Plant environment monitoring system
 Factory automation platform
 Manufacturing shop flow
