AFL-08B-N270 User Manual
Page 36
The COM3 RX Function Select jumper sets the communication protocol used by the RX
serial communications port COM3 as RS-232, RS-422 or RS-485. The COM3 RX
Function Select jumper settings are shown in
5Table 2-8.
COM3 RX Function Select Description
Short 1-2 DET BIOS
RS-232/422/485
Short 3-4 RS-232 Default
Short 5-6 RS-422
Short 7-8 RS-485
Table 2-8: COM3 RX Function Select Jumper Settings

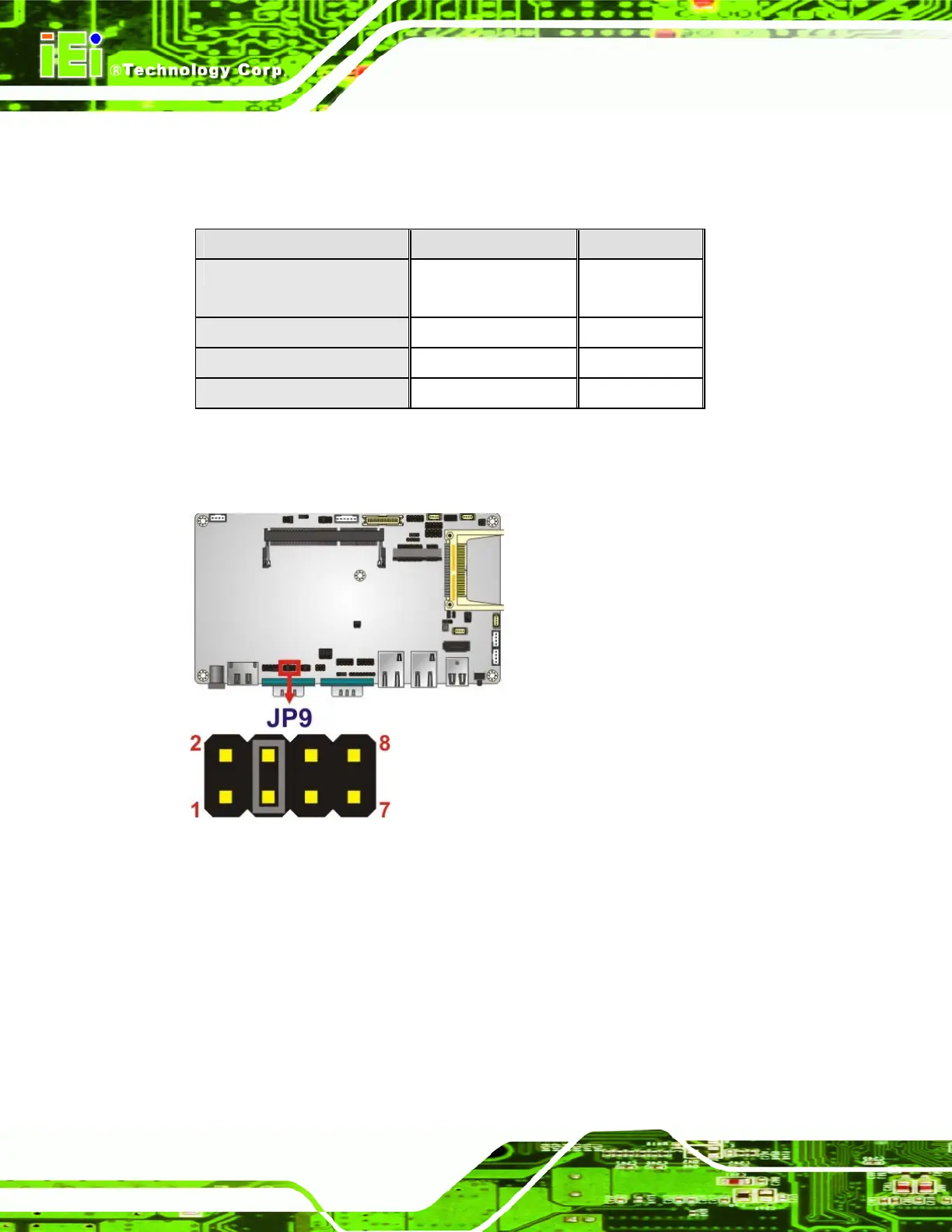

The COM3 RX Function Select jumper location is shown in 5Figure 2-7.
Figure 2-7: COM3 RX Function Select Jumper Location
2.5.6 COM3 TX Function Select Jumper
Jumper Label: JP11
Jumper Type:
6-pin header
Jumper Settings:
See
5Table 2-9
Jumper Location:
See
5Figure 2-8
