AFL-08B-N270 User Manual
Page 45

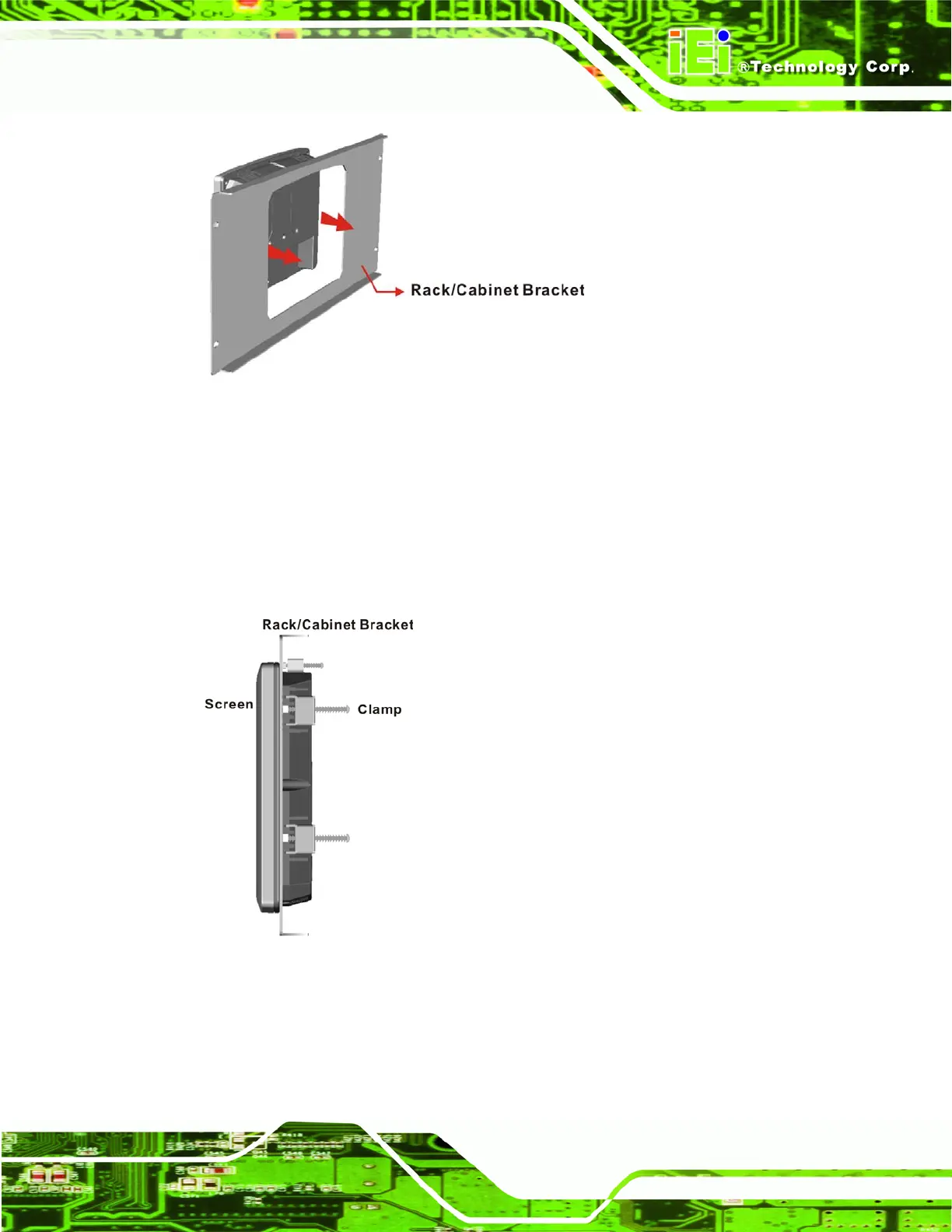

Figure 2-16: The Rack/Cabinet Bracket
Step 2: Insert the rack mounting clamps into the pre-formed holes along the edges of
the panel PC, behind the ABS/PC plastic frame.
Step 3: Tighten the screws that pass through the rack mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the bracket
(
Figure 2-17).
Figure 2-17: Secure the Rack/Cabinet Bracket
Step 4: Slide the panel PC with the attached rack/cabinet bracket into a rack or cabinet
(
Figure 2-18).
