IEI Technology AFL-08B-N270 User Manual

AFL-08B-N270 User Manual
Page 55

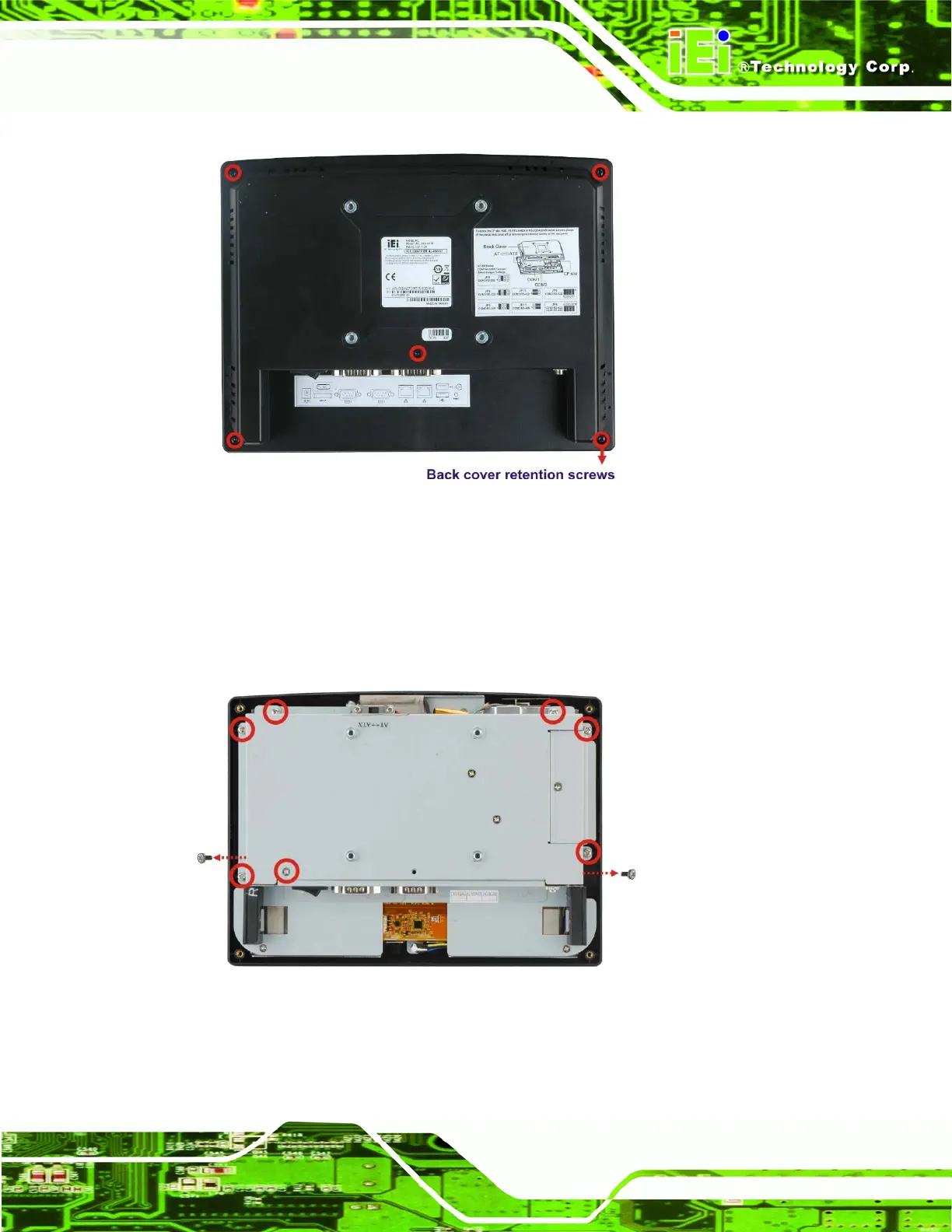

Figure 3-2: Back Cover Retention Screws
Step 4: Lift the cover and pull down the cover a bit to make it possible to fully remove it.
More strength is required to separate the cover from the chassis.
Step 5: Remove the retention screws indicated by the arrows and circles in
Figure 3-3
from the aluminum cover.
Figure 3-3: Aluminum Cover Retention Screws
Step 6: Lift off the cover. Step 0:

IEI Technology AFL-08B-N270 Specifications

General

Brand	IEI Technology
Model	AFL-08B-N270
Category	Touch Panel
Language	English
