AFL-08B-N270 User Manual
Page 46

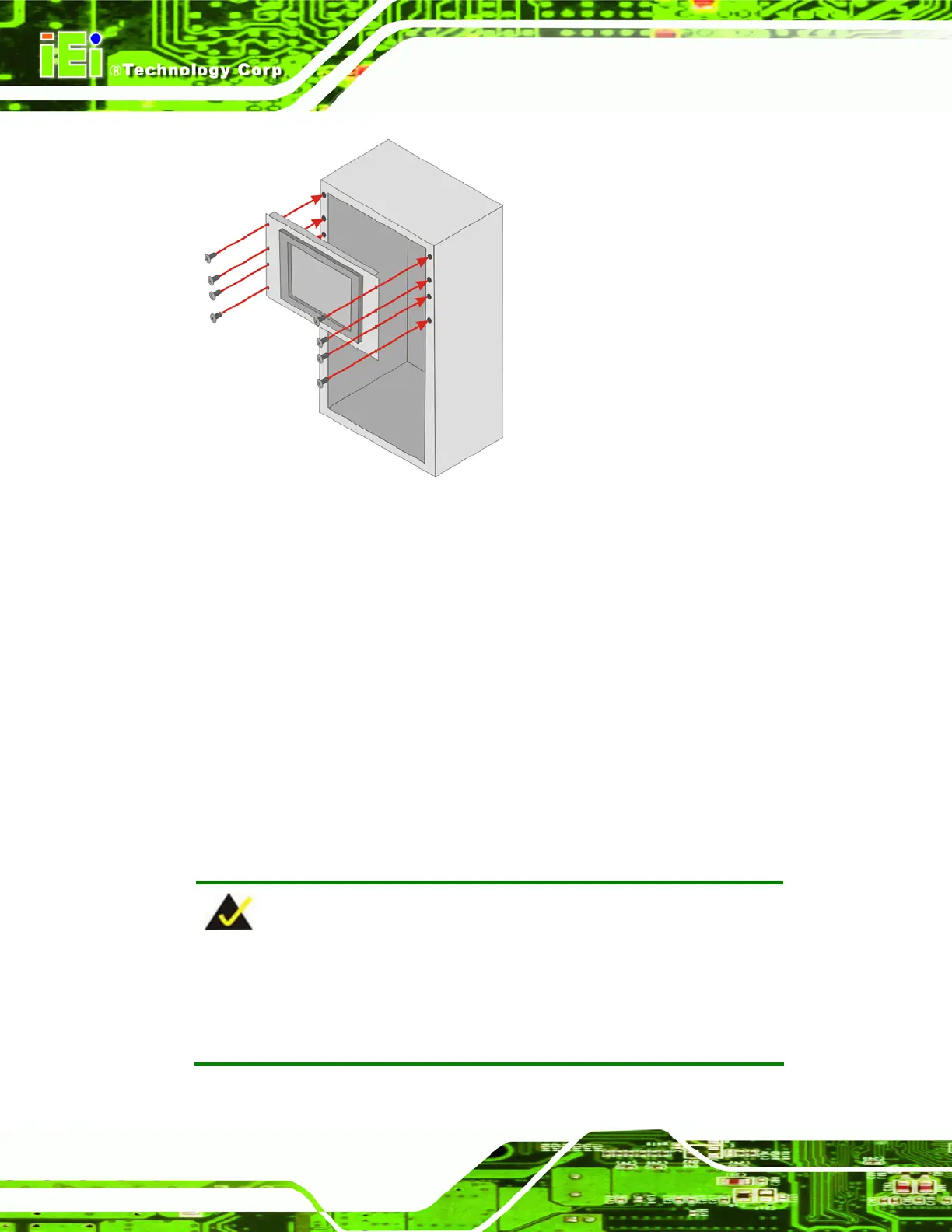

Figure 2-18: Install into a Rack/Cabinet
Step 5: Once the panel PC with the attached rack/cabinet bracket has been properly
inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to
the front of the rack or cabinet (
Figure 2-18).
2.6.4 Arm Mounting
The AFL-08B-N270 is VESA (Video Electronics Standards Association) compliant and can
be mounted on an arm with a 75mm interface pad. To mount the panel PC on an arm,
please follow the steps below.
Step 1: Please correctly mount the arm onto the surface it uses as a base. To do this,
refer to the installation documentation that came with the mounting arm.
NOTE:
When purchasing the mounting arm please ensure that it is VESA
compliant and that the arm has a 75 mm interface pad. If it is not VESA
compliant, it cannot be used to support the AFL-08B-N270 panel PC.
