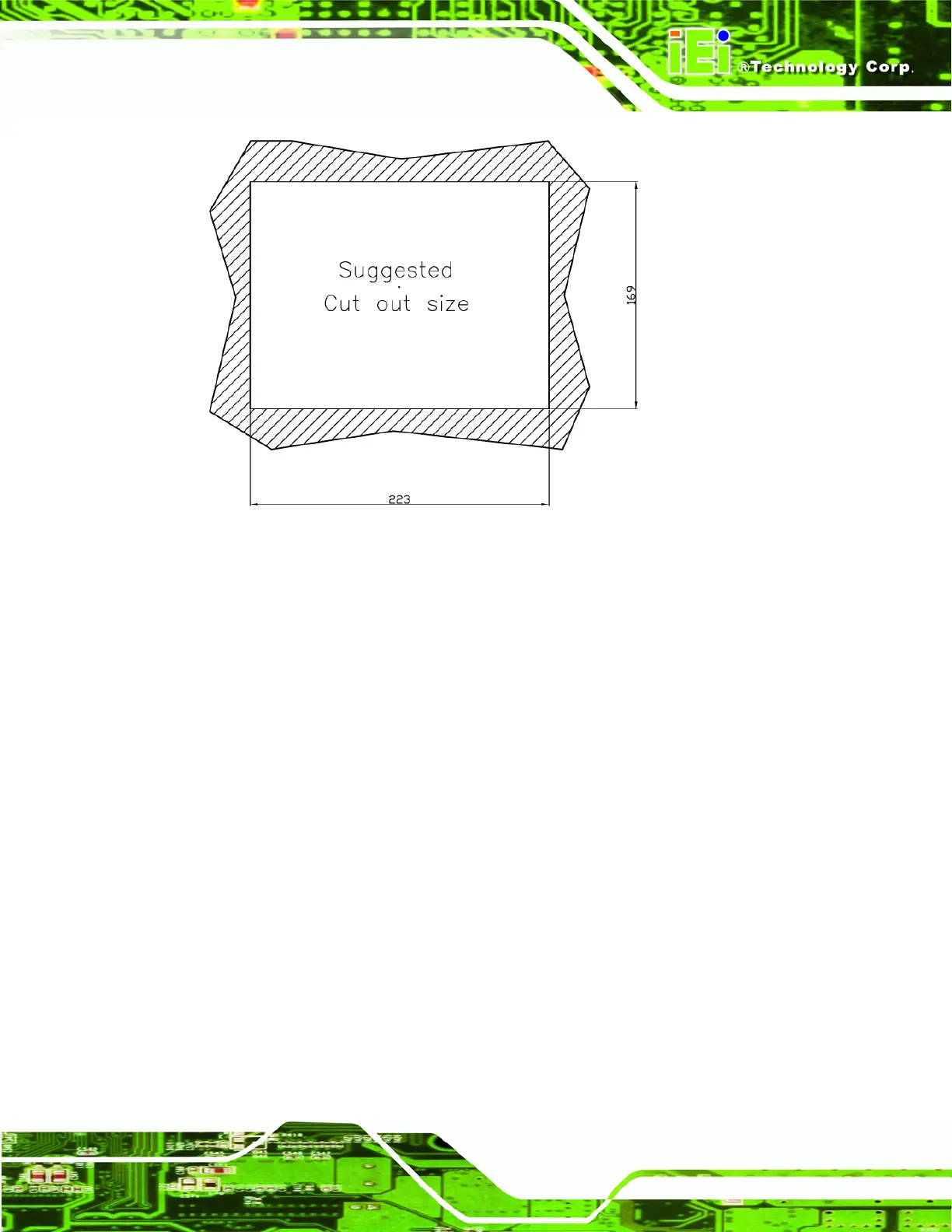

Figure 2-14: AFL-08B-N270 Cutout Dimensions (units in mm)
Step 3: Slide the panel PC through the hole until the aluminum frame is flush against the
panel.
Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
the chassis, behind the aluminum frame.
Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the panel (
Figure 2-15).
