AFL-08B-N270 User Manual

Page 38

RS-232/485 Select Description

Short 1-2 RS-232 Default

Short 4-5 RS-232 Default

Short 7-8 RS-232 Default

Short 10-11 RS-232 Default

Short 2-3 RS-422/485

Short 5-6 RS-422/485

Short 8-9 RS-422/485

Short 11-12 RS-422/485

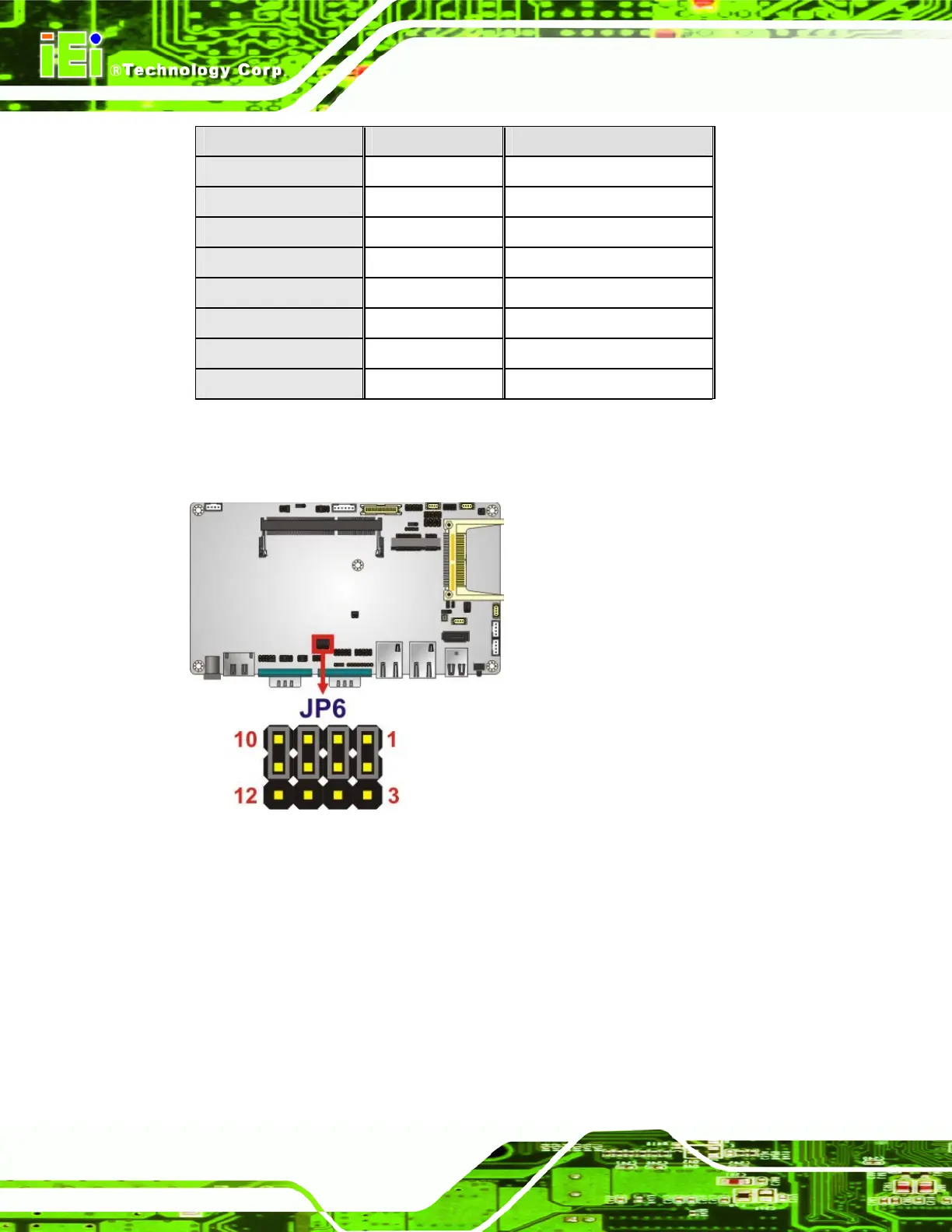

Table 2-10: COM3 RS-232/422/485 Serial Port Select Jumper Settings

The COM3 RS-232/422/485 Serial Port Select jumper location is shown in 5Figure 2-9.

Figure 2-9: COM3 RS-232/422/485 Serial Port Select Jumper Location

2.5.8 CompactFlash® Setup

Jumper Label: JCF1

Jumper Type:

2-pin header

Jumper Settings:

See

Table 2-11

Jumper Location:

See

Figure 2-10
