Ihse Draco compact DVI 477 Series User Manual

Description
2021-07-09 15

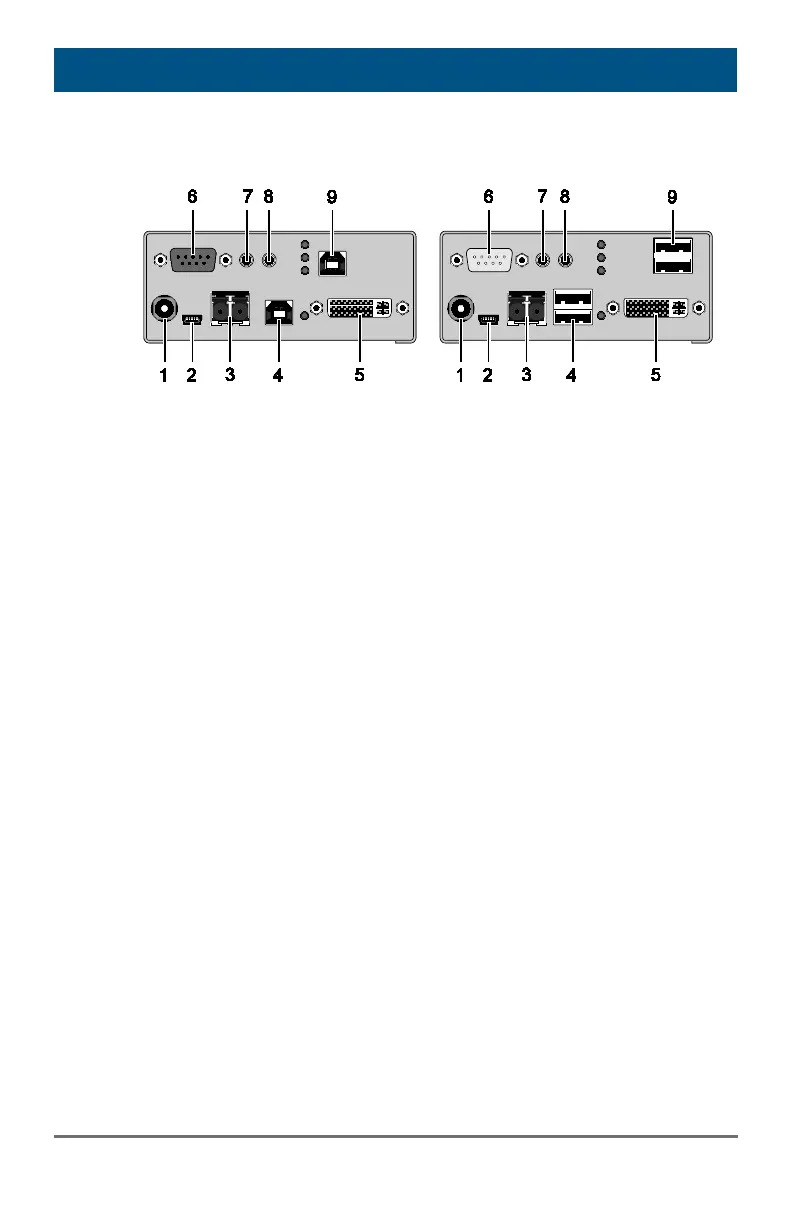

3.6.4 Model K477-1SESA / -1SEXA (Analog Audio / Serial)
CPU Unit
CON Unit
Rear View
Rear View
1 Connect to 5VDC power
supply
2
Service port
3
Connect to interconnect cable
4
To CPU: USB-HID
5
To CPU: DVI-D
6
Connect to serial (D-Sub 9)
7
Audio IN
8
Audio OUT
9
To CPU: USB 2.0
1 Connect to 5VDC power
supply
2 Service port
3 Connect to interconnect cable
4 Connect to USB-HID devices
5 Connect to DVI monitor
6 Connect to serial (D-Sub 9)
7 Audio IN
8 Audio OUT
9 Connect to USB 2.0 devices
Pos: 14 /806-IHSE/ Beschreibung/Ger äteansichten/477-xx _COMP/1SECD (mit Digit al-Audio) @ 5\mod_12916477228 18_6.doc @ 45856 @ 3 @ 1
