Ihse Draco compact DVI 477 Series User Manual

Description
2021-07-09 21
3.6.10 Model K477-1SHSV / -1SHXV (Fiber with VGA)
CPU Unit
CON Unit

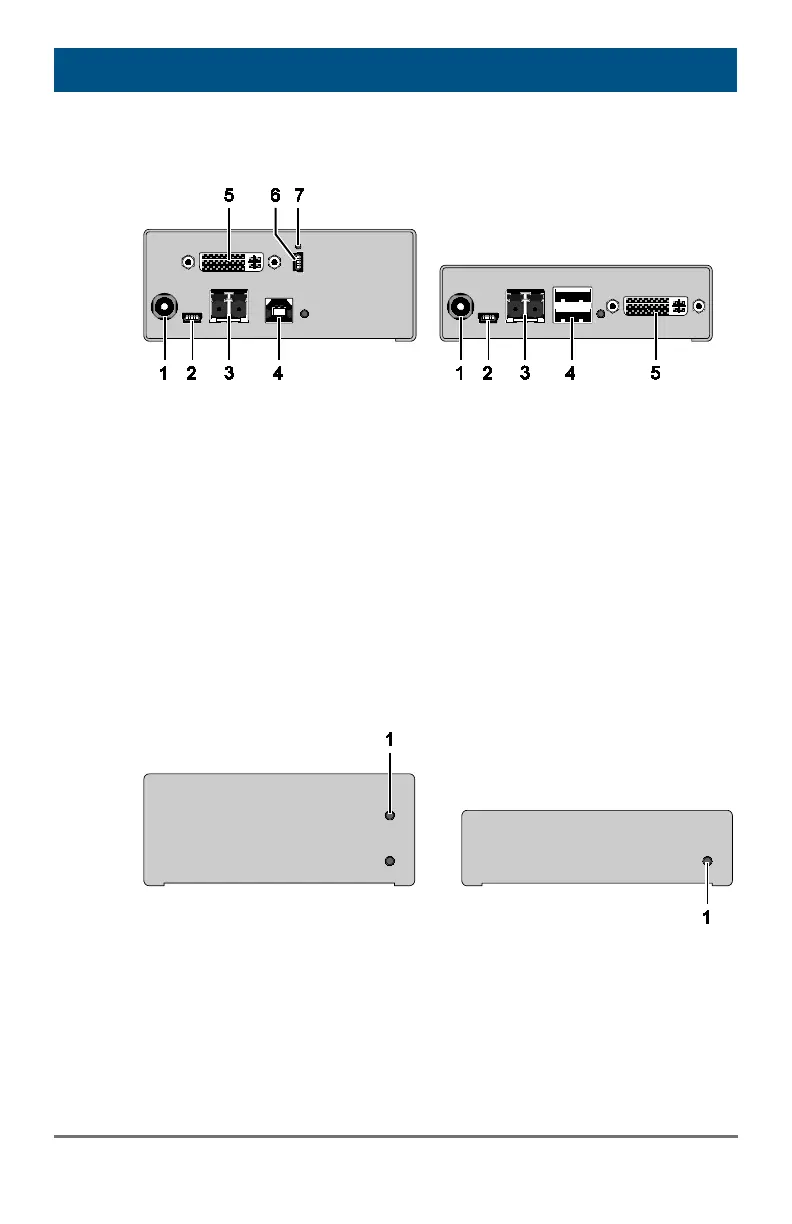

Rear View
Rear View
1 Connect to 5VDC power
supply
2
Service port (KVM)
3
Connect to interconnect cable
4
To CPU: USB-HID
5
To CPU: DVI-I (VGA / DVI)
6
Service port (DVI-I)
7
IR receiver for remote control
1 Connect to 5VDC power
supply
2 Service port
3 Connect to interconnect cable
4 Connect to USB-HID devices
5 Connect to DVI monitor
CPU Unit
CON Unit
Front View
Front View
1 IR receiver for remote control
1 IR receiver for remote control
Pos: 20 /806-IHSE/ Beschreibung/Gerät eansichten/477-xx /2S4C (Dual-Head Cat X) @ 5\mod_1278934890730 _6.doc @ 42958 @ 3 @ 1

Ihse Draco compact DVI 477 Series Specifications

General

Brand	Ihse
Model	Draco compact DVI 477 Series
Category	Extender
Language	English
