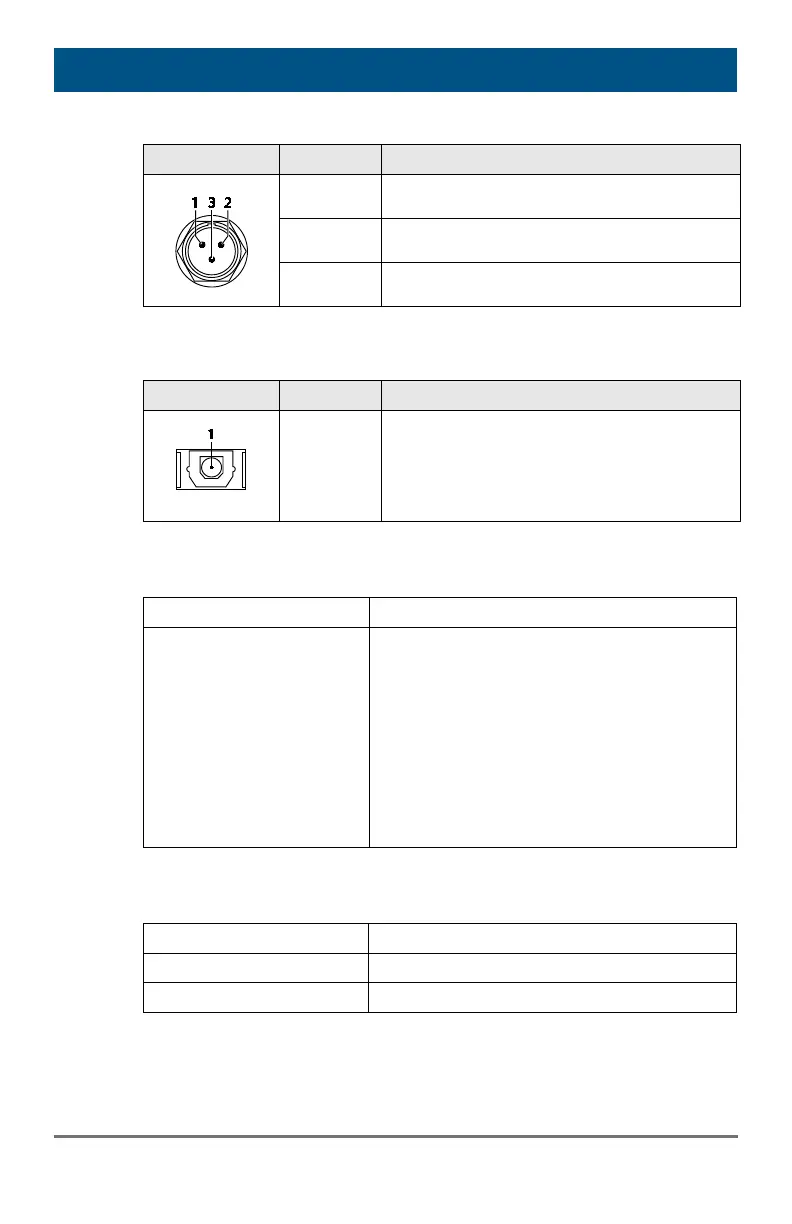

Specifications
2021-07-09 59
Mini-XLR
Pin
Signal
1 GND
2 Data +
3 Data –
Pos: 69 /806-IHSE/T echnische Daten/Pinbel egungen/TOSLI NK @ 5\mod_1291129073656_6.doc @ 44958 @ @ 1
TOSLINK
Diode
Signal
1 Data IN / OUT
Pos: 70 /806-IHS E/Technische Daten/St romversorgung/477-xx _COMP @ 5\mod_1291129232140_6. doc @ 44977 @ 2 @ 1
7.5 Power Supply
Voltage 5VDC
Power Requirement
(per Unit)
 Single-Head devices: max. 800 mA
 Dual-Head devices: max. 1,600 mA
Optional Modules:
 Analog Audio / Serial: max. 300 mA
 Digital Audio: max. 300 mA
 USB 2.0 embedded: max. 1,100 mA
 USB 2.0: max. 2,500 mA
 VGA: max. 900 mA
Pos: 71 /806-IHSE/Technisc he Daten/Einsat zbedingungen/ATB _Einsatzbedingungen @ 5\m od_1278578980026_6.doc @ 42480 @ 2 @ 1
7.6 Environmental Conditions
Operating Temperature 41 to 113°F (5 to 45°C)
Storage Temperature –13 to 140°F (–25 to 60°C)
Relative Humidity
Max. 80% non-condensing
