Ihse Draco compact DVI 477 Series User Manual

Draco compact DVI KVM Extender
58 2021-07-09

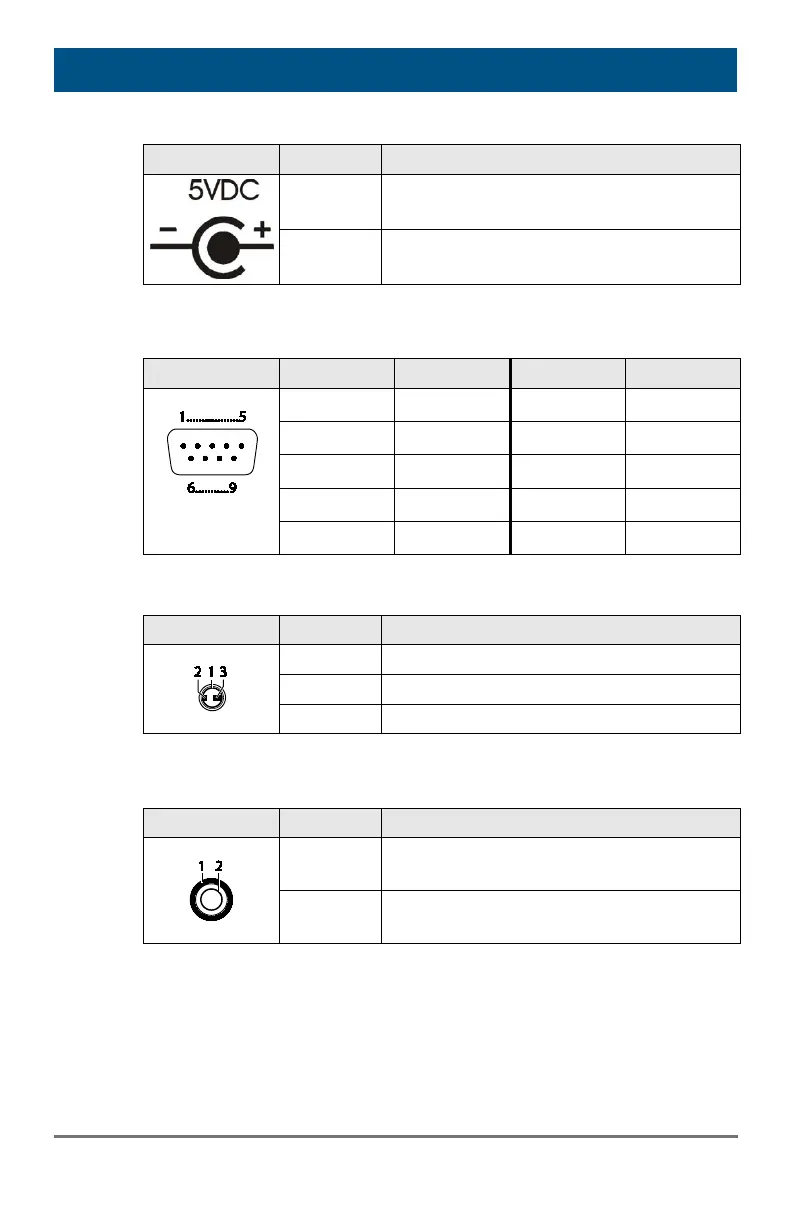

Power Supply
Pin
Signal
Inside VCC (+5VDC)
Outside GND
Pos: 65 /806-IHSE/T echnische Daten/Pinbel egungen/D-Sub 9 (Seri ell) @ 5\mod_1291128631437_6.d oc @ 44882 @ @ 1
D-Sub 9 (Serial) RS232
Pin
Signal
Pin
Signal
1 n.c. 6 DSR
2 RxD 7 RTS
3 TxD 8 CTS
4 DTR 9 n.c.
5 GND
Pos: 66 /806-IHSE/T echnische Daten/Pinbel egungen/Stereo- Klinkenbuchse 3,5 / 6, 35 mm @ 5\mod_1291128765156_6.doc @ 44901 @ @ 1
3.5 / 6.35 mm Stereo Jack Plug
Picture Pin Signal
1 GND
2 Audio IN / OUT L
3 Audio IN / OUT R
Pos: 67 /806-IHSE/T echnische Daten/Pinbel egungen/RCA (Ci nch) @ 5\mod_1291128877593_6.doc @ 44920 @ @ 1
RCA (Cinch)
Pin
Signal
1 GND
2 Data IN / OUT
Pos: 68 /806-IHSE/T echnische Daten/Pinbel egungen/Mini- XLR @ 5\mod_129112 8998484_6.doc @ 44939 @ @ 1
