Ihse Draco compact DVI 477 Series User Manual

Draco compact DVI KVM Extender
22 2021-07-09

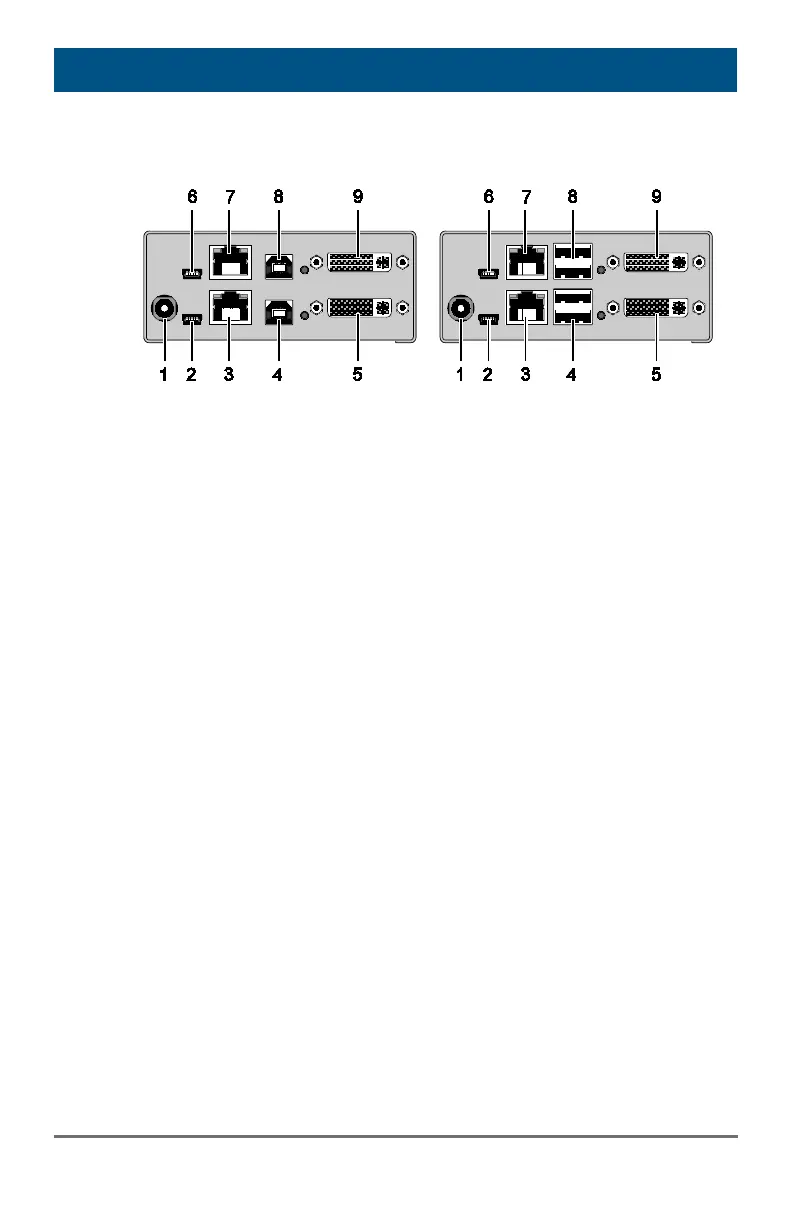

3.6.11 Model K477-2S4C (Dual-Head Cat X)
CPU Unit
CON Unit
Rear View
Rear View
1 Connect to 5VDC power
supply
2
Service port 1
3
Connect to interconnect
cable 1
4
To CPU: USB-HID 1
5
To CPU: DVI-D 1
6
Service port 2
7
Connect to interconnect
cable 2
8
To CPU: USB-HID 2
9
To CPU: DVI-D 2
1 Connect to 5VDC power
supply
2 Service port 1
3 Connect to interconnect
cable 1
4 Connect to USB-HID devices 1
5 Connect to DVI monitor 1
6 Service port 2
7 Connect to interconnect
cable 2
8 Connect to USB-HID devices 2
9 Connect to DVI monitor 2
Pos: 21 /806-IHSE/ Beschreibung/Ger äteansichten/477-xx /2S4S_2S4X (Dual-Head Gl asfaser) @ 5\mod_1278935028 198_6.doc @ 42976 @ 3 @ 1
