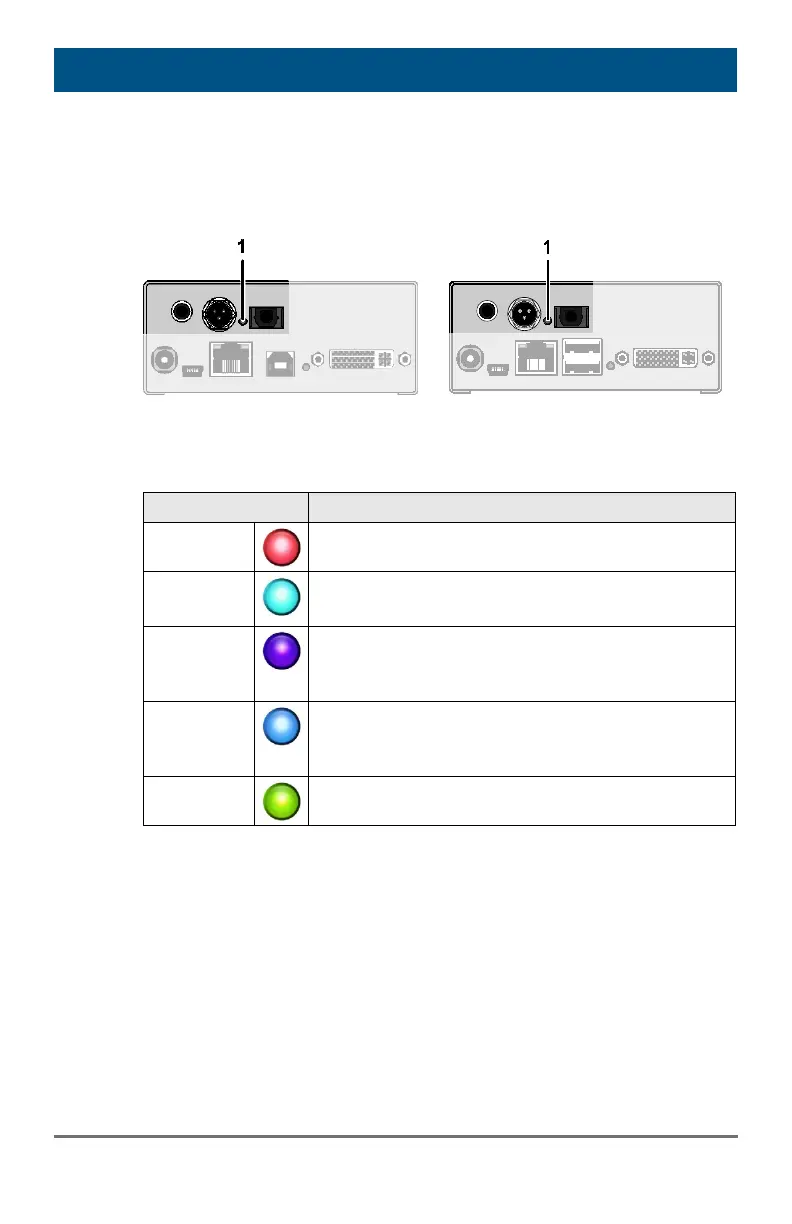

3.7.1 Status Digital Audio (Option)
The KVM Extender with optional digital audio is fitted with a further multi-
color LED on the rear side for indication of the connection status:
CPU Unit
CON Unit
Rear View
Rear View
LED 1: Digital Audio Status
LED color
Description
Red No signal
Light Blue
Static
: CPU Unit: S/PDIF signal (RCA) available
Flashing
: CPU Unit: Digital noise
Violet
Static: CPU Unit: AES/EBU signal (Mini-XLR)
available
Flashing: CPU Unit: Digital noise
Blue
Static: CPU Unit: S/PDIF signal (TOSLINK)
available
Flashing
: CPU Unit: Digital noise
Green
CON Unit: Signal available
