Ihse Draco compact DVI 477 Series User Manual

Draco compact DVI KVM Extender
18 2021-07-09

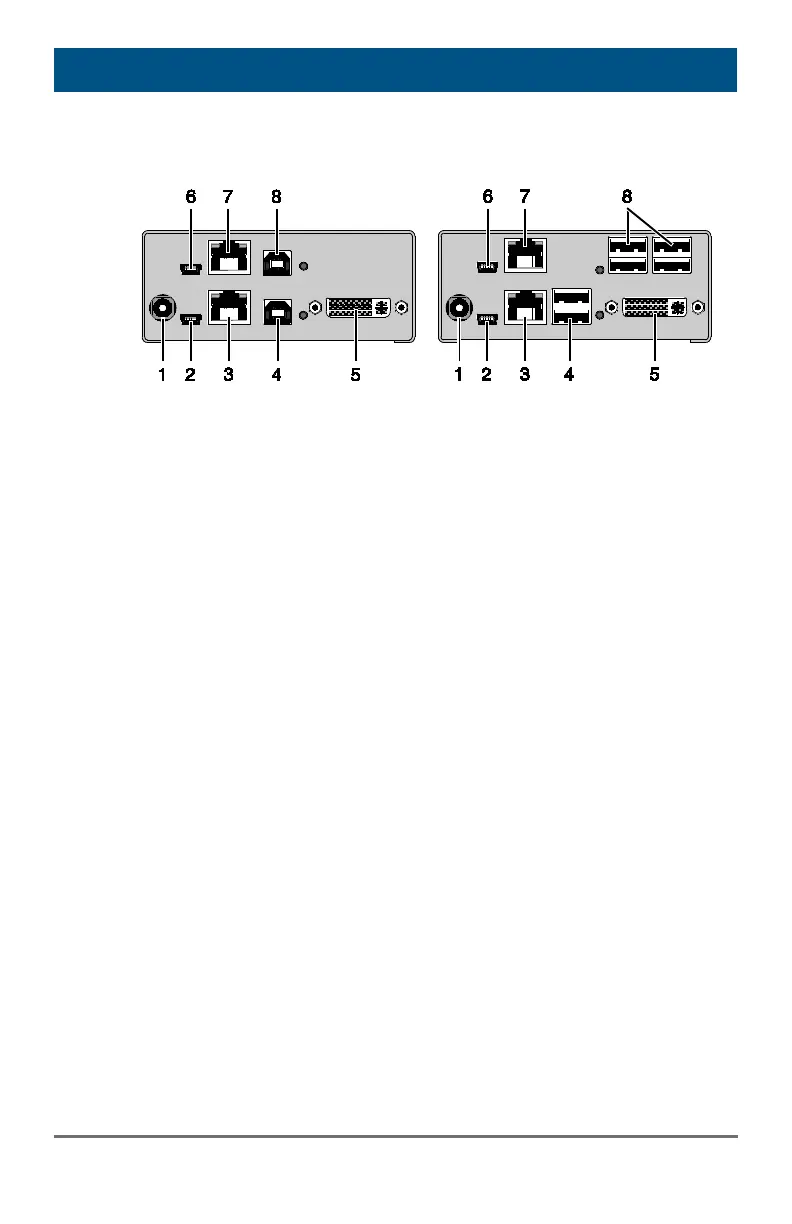

3.6.7 Model K477-1SUC (USB 2.0 Cat X)
CPU Unit
CON Unit
Rear View
Rear View
1 Connect to 5VDC power
supply
2
Service port 1
3
Connect to interconnect cable 1
4
To CPU: USB-HID
5
To CPU: DVI-D
6
Service port 2
7
Connect to interconnect cable 2
8
To CPU: USB 2.0
1 Connect to 5VDC power
supply
2 Service port 1
3 Connect to interconnect cable 1
4 Connect to USB-HID devices
5 Connect to DVI monitor
6 Service port 2
7 Connect to interconnect cable 2
8 Connect to USB 2.0 devices
Pos: 17 /806-IHSE/ Beschreibung/Ger äteansichten/477-xx _COMP/1STS (USB 2.0 Glas faser) @ 6\mod_1299603305359_6. doc @ 49208 @ 3 @ 1
