3.7 Status LEDs

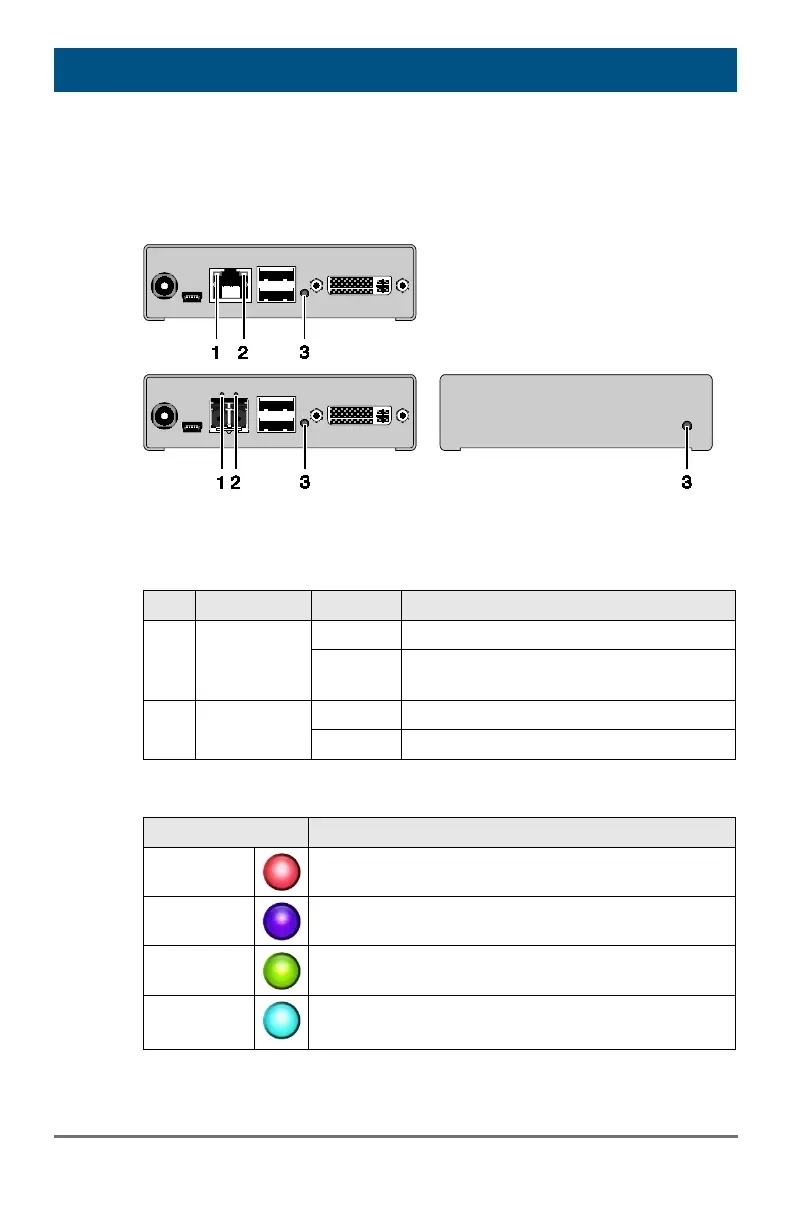

The KVM Extender is fitted with a multi color LED on both sides for overall
status indication and with two further LEDs on the back side for indication
of the connection status.
Rear View
Front View
LED 1 and 2: Connection Status
Pos.
LED
Status
Description
1 Failure LED
(green)
Off Connection available
On or
flashing
Connection failure (flashing for about
20 s following a connection failure)
2 Status LED
(green)
Flashing No connection via interconnect cable
On Connection available
LED 3: USB and Video Status
LED color Description
Red Device ready
Violet
Connection and USB signal (interconnect) available
Green Connection and video signal available
Light Blue
Connection, USB and video signal available
(operating status)
