Ihse Draco compact DVI 477 Series User Manual

Description
2021-07-09 23

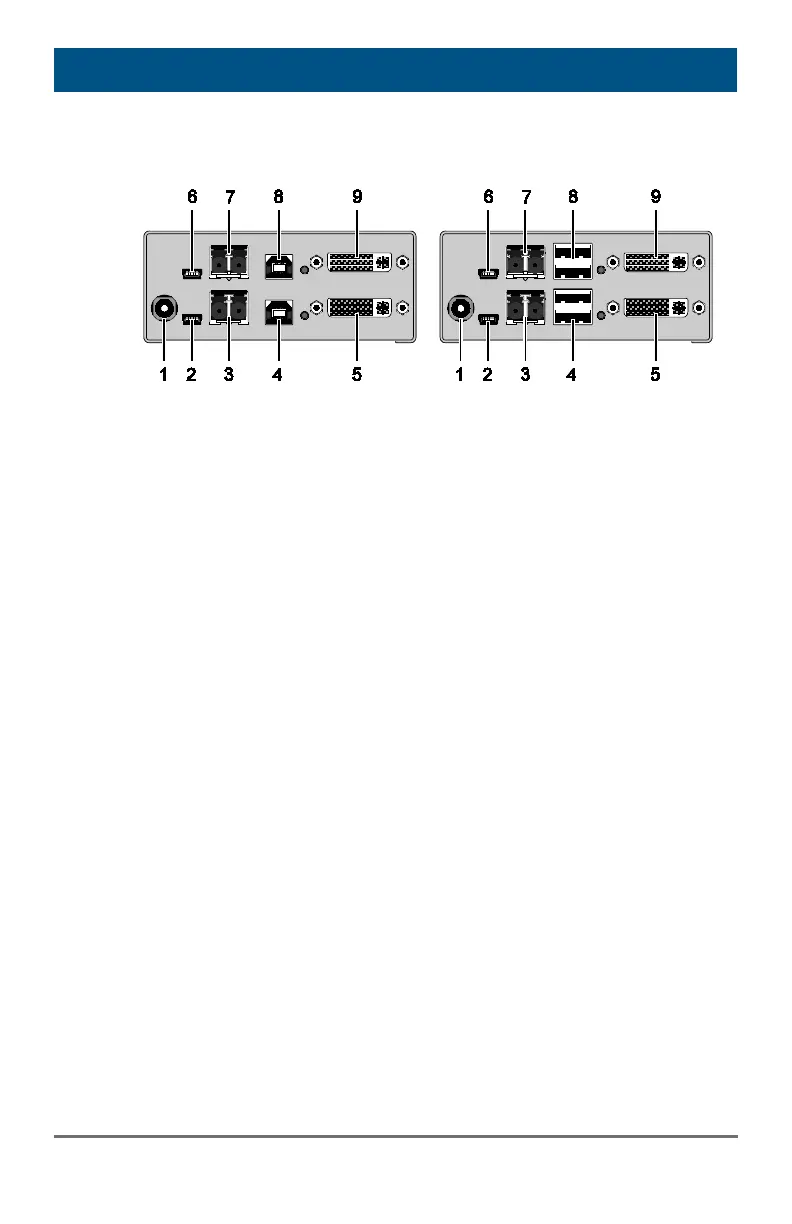

3.6.12 Model K477-2S4S / -2S4X (Dual-Head Fiber)
CPU Unit
CON Unit
Rear View
Rear View
1 Connect to 5VDC power
supply
2
Service port 1
3
Connect to interconnect
cable 1
4
To CPU: USB-HID 1
5
To CPU: DVI-D 1
6
Service port 2
7
Connect to interconnect
cable 2
8
To CPU: USB-HID 2
9
To CPU: DVI-D 2
1 Connect to 5VDC power
supply
2 Service port 1
3 Connect to interconnect
cable 1
4 Connect to USB-HID devices 1
5 Connect to DVI monitor 1
6 Service port 2
7 Connect to interconnect
cable 2
8 Connect to USB-HID devices 2
9 Connect to DVI monitor 2
Pos: 22 /806-IHSE/ Beschreibung/Diagnose LE Ds/477-xx_COMP @ 5\mod_1291121862656_6.doc @ 44702 @ 23333 @ 1
