3.7.2 Status USB-HID Add-On (Option)

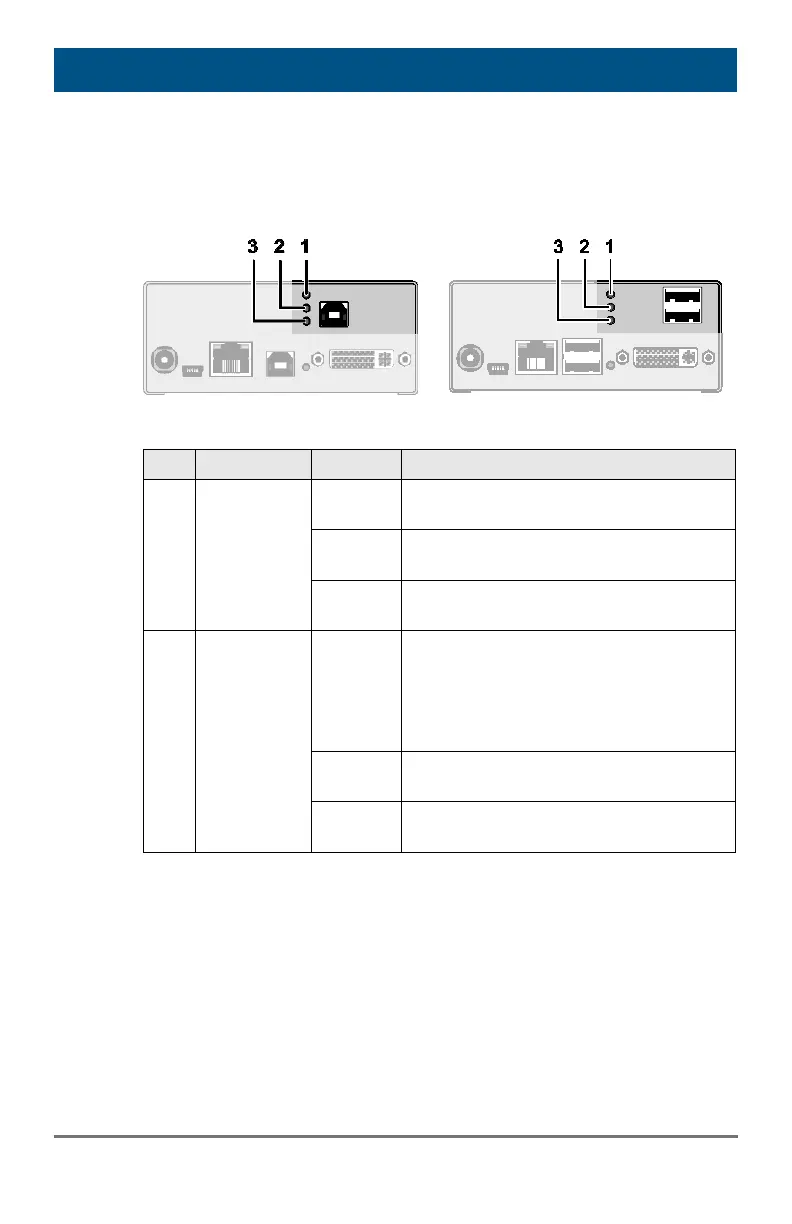

The KVM Extender with optional USB-HID is fitted with three further LEDs
on the rear side for indication of the connection status:
CPU Unit
CON Unit
Rear View
Rear View
Pos.
LED
Status
Description
1, 2 Device LED
(orange)
Off No USB-HID device or not supported
USB device connected
Flashing
fast
USB-HID device active
On USB-HID device ready or KVM
Extender in command mode
3 Status LED
(orange)
Off  No power supply voltage
 CPU Unit: KVM Extender in
command mode or no connection
 CON Unit: Keyboard in command
mode
Flashing
slowly
CON Unit: KVM Extender in command
mode or no connection
Flashing
fast
Operating status
