Ihse Draco compact DVI 477 Series User Manual

Description
2021-07-09 17

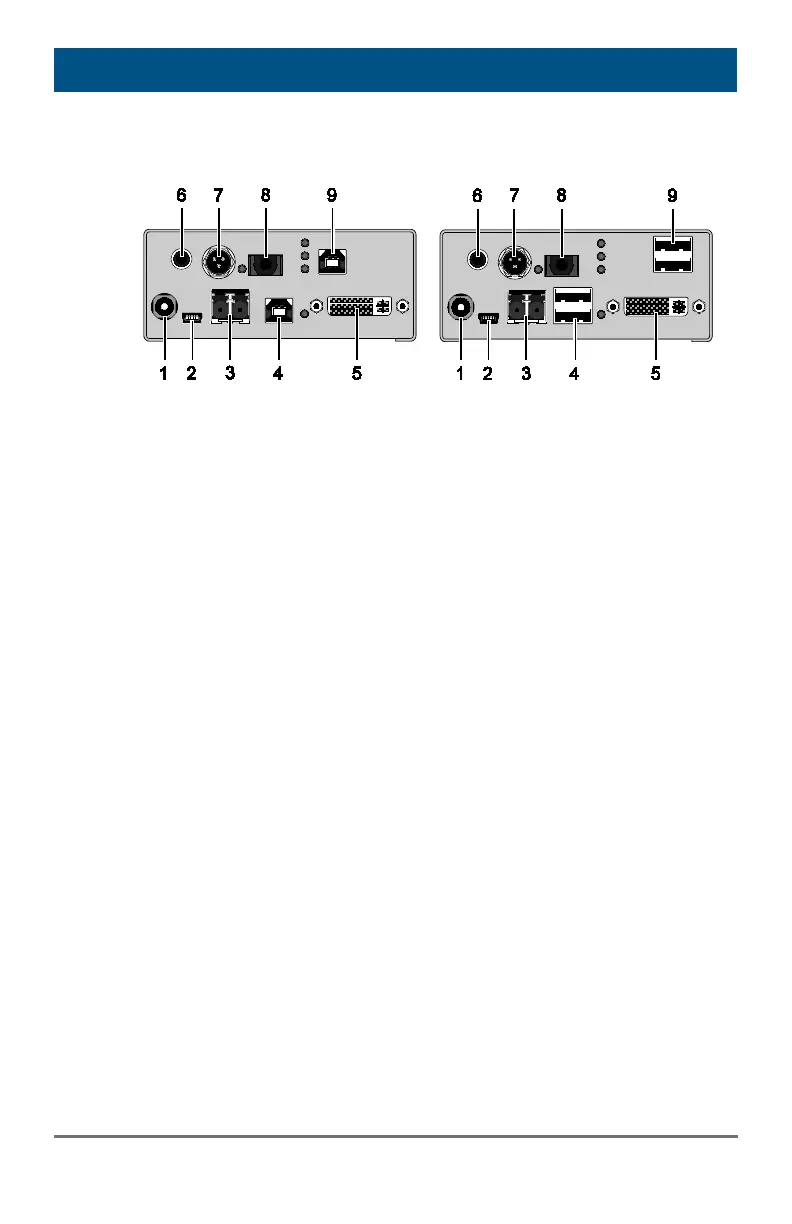

3.6.6 Model K477-1SESD / -1SEXD (Digital Audio)
CPU Unit
CON Unit
Rear View
Rear View
1 Connect to 5VDC power
supply
2
Service port
3
Connect to interconnect cable
4
To CPU: USB-HID
5
To CPU: DVI-D
6
S/PDIF input (RCA)
7
AES/EBU input (Mini-XLR)
8
S/PDIF input (TOSLINK)
9
To CPU: USB 2.0
1 Connect to 5VDC power
supply
2 Service port
3 Connect to interconnect cable
4 Connect to USB-HID devices
5 Connect to DVI monitor
6 S/PDIF output (RCA)
7 AES/EBU output (Mini-XLR)
8 S/PDIF output (TOSLINK)
9 Connect to USB 2.0 devices
Pos: 16 /806-IHS E/Beschreibung/Ger äteansichten/477- xx_COMP/1STC (USB 2.0 Cat X) @ 6\mod_1299603229062_ 6.doc @ 49190 @ 3 @ 1
