Ihse Draco compact DVI 477 Series User Manual

Specifications
2021-07-09 55
7.4 Connector Pinouts
Pos: 57 /806-IHSE/T echnische Daten/Pinbel egungen/Buchs e DVI-D Single-Link @ 5\mod_127857872 3073_6.doc @ 42333 @ @ 1

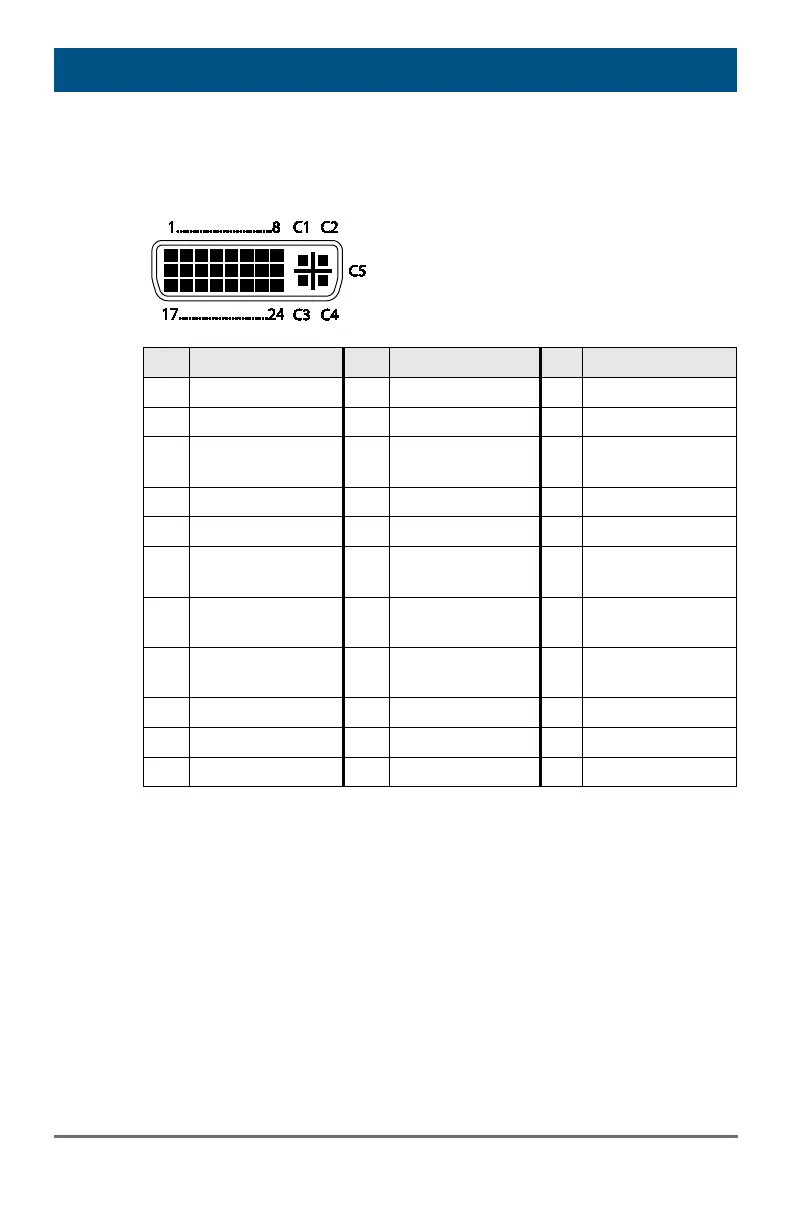

Connector DVI-D Single-Link
Pin Signal Pin Signal Pin Signal
1 T.M.D.S data 2 – 9 T.M.D.S data 1 – 17 T.M.D.S data 0 –
2 T.M.D.S data 2 + 10 T.M.D.S data 1 + 18 T.M.D.S data 0 +
3 T.M.D.S data 2
GND
11 T.M.D.S data 1
GND
19 T.M.D.S data 0
GND
4 n.c. 12 n.c. 20 n.c.
5 n.c. 13 n.c. 21 n.c.
6 DDC Input (SCL) 14 +5VDC high
impedance
22 T.M.D.S clock
GND
7 DDC Output
(SDA)
15 GND 23 T.M.D.S clock +
8 Internal use 16 Hot Plug
recognition
24 T.M.D.S clock –
C1 Internal use C3 Internal use
C2 n.c. C5 GND C4 Internal use
