Ihse Draco compact DVI 477 Series User Manual

Draco compact DVI KVM Extender
56 2021-07-09

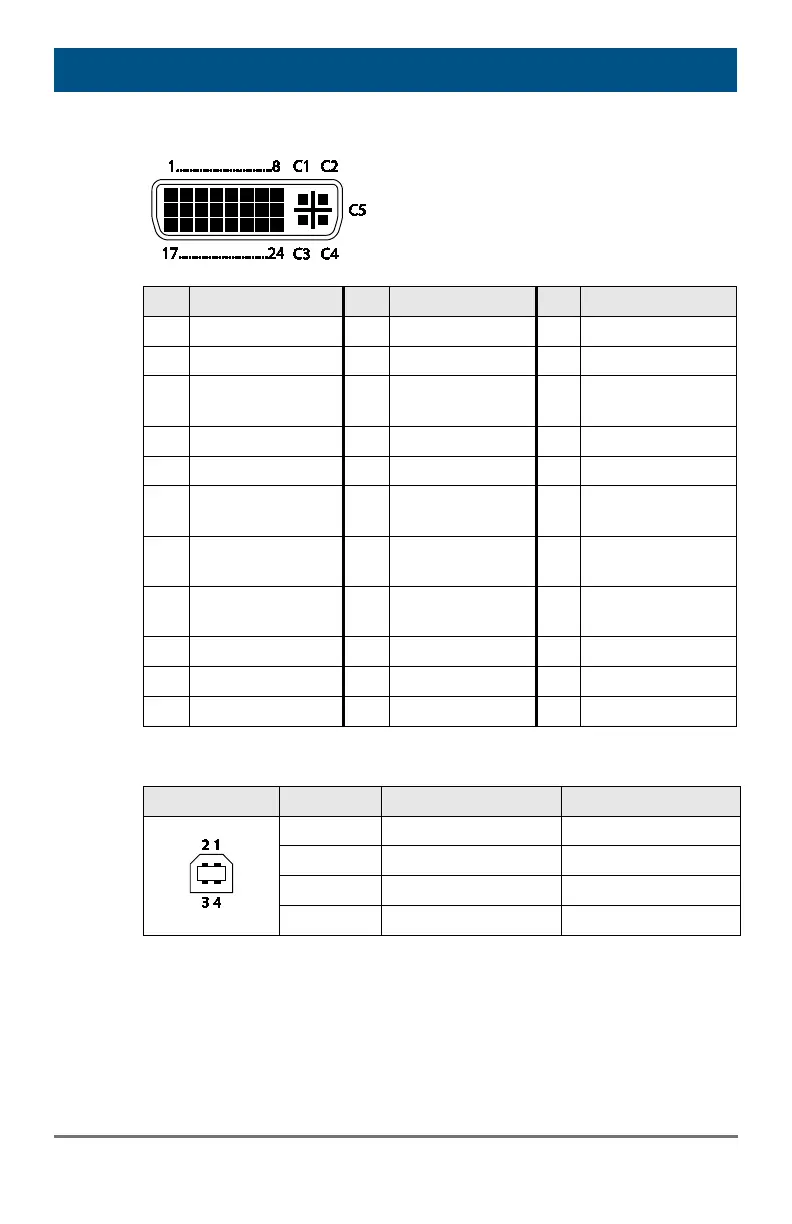

Connector DVI-I Single-Link
Pin
Signal
Pin
Signal
Pin
Signal
1 T.M.D.S data 2– 9 T.M.D.S data 1– 17 T.M.D.S data 0–
2 T.M.D.S data 2+ 10 T.M.D.S data 1+ 18 T.M.D.S data 0+
3 T.M.D.S data 2
GND
11 T.M.D.S data 1
GND
19 T.M.D.S data 0
GND
4 n.c. 12 n.c. 20 n.c.
5 n.c. 13 n.c. 21 n.c.
6 DDC Input (SCL) 14 +5VDC high
impedance
22 T.M.D.S clock
GND
7 DDC Output
(SDA)
15 GND 23 T.M.D.S clock+
8 V-sync 16 Hot Plug
recognition
24 T.M.D.S clock–
C1 Red signal C3 Blue signal
C2 Green signal C5 GND C4 H-sync
Pos: 59 /806-IHSE/T echnische Daten/Pinbel egungen/Buchse USB Typ B @ 5\mod_1278578750464_6. doc @ 42351 @ @ 1
Connector USB Type B
Pin
Signal
Color
1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
4 GND Black
Pos: 60 /806-IHSE/T echnische Daten/Pinbel egungen/Buchs e USB Typ A @ 5\mod_1278578771214_6.doc @ 42369 @ @ 1
