Ihse Draco compact DVI 477 Series User Manual

Specifications
2021-07-09 57

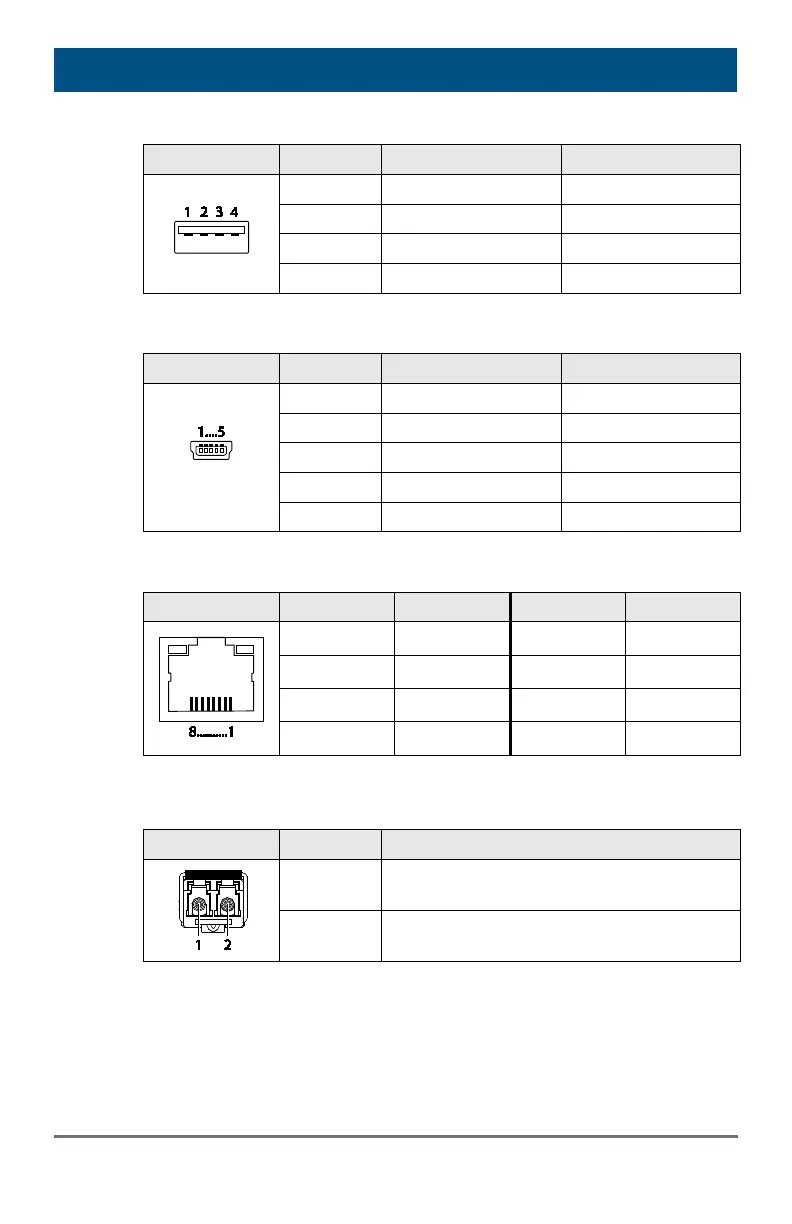

Connector USB Type A
Pin
Signal
Color
1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
4 GND Black
Pos: 61 /806-IHSE/T echnische Daten/Pinbel egungen/Buchs e Mini-USB Typ B @ 5\mod_1278578794167_6.doc @ 42387 @ @ 1
Connector Mini USB Type B
Picture Pin Signal Color
1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
4 n.c. –
5 GND Black
Pos: 62 /806-IHSE/T echnische Daten/Pinbel egungen/RJ45 @ 5\mod_12785 78820011_6.doc @ 42405 @ @ 1
RJ45
Pin
Signal
Pin
Signal
1 D1+ 5 D3–
2 D1– 6 D2–
3 D2+ 7 D4+
4 D3+ 8 D4–
Pos: 63 /806-IHSE/Technisc he Daten/Pinbelegung en/Glasfaser SFP Ty p LC @ 5\mod_1278938501151_6.doc @ 43210 @ @ 1
Fiber SFP Typ LC
Picture Diode Signal
1 Data OUT
2 Data IN
Pos: 64 /806-IHSE/T echnische Daten/Pinbel egungen/Stromvers orgung @ 5\mod_127857884918 3_6.doc @ 42423 @ @ 1
